Output turn 196 laps/minute speed-reducing machine _k97drn100m4_boserl moving k97dv100m4 speed-reducing plant

K97DRN100M4Detailed Information

prevnext

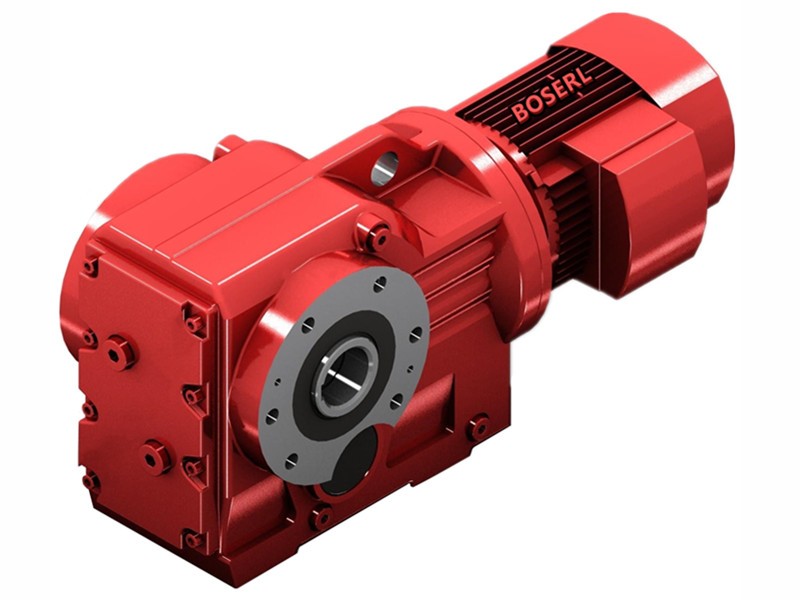

K97DRN100M4

TEL：Email:[email protected]

详细信息

Keyword: output-turner 196 laps/minute-reducing motor _ k97drn 100m4_k97dv100m4_output-turner 196 laps/minute-reducing motor _ minute-turner 196 gear-reducing motor _ minute-turner 196 laps/minute-reducing motor

K97DRN100M4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
K97DRN100M4	176.05	3KW	8rpm	3600N.m	175Kg	40000N	1.2
K97DRN100M4	153.21	3KW	9.1rpm	3130N.m	175Kg	40000N	1.35
K97DRN100M4	140.28	3KW	10rpm	2870N.m	175Kg	40000N	1.5
K97DRN100M4	123.93	3KW	11rpm	2530N.m	175Kg	40000N	1.7
K97DRN100M4	105.13	3KW	13rpm	2150N.m	175Kg	40000N	2
K97DRN100M4	96.8	3KW	14rpm	1980N.m	175Kg	40000N	2.2
K97DRN100M4	86.52	3KW	16rpm	1770N.m	175Kg	40000N	2.4
K97DRN100M4	77.89	3KW	18rpm	1590N.m	175Kg	40000N	2.7
K97DRN100M4	70.54	3KW	20rpm	1440N.m	175Kg	40000N	3
K97DRN100M4	62.55	3KW	22rpm	1270N.m	175Kg	40000N	3.4
K97DRN100M4	56.55	3KW	25rpm	1150N.m	175Kg	40000N	3.7

K97DV100M4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
K97DV100M4	176.05	3KW	8rpm	3600N.m	175Kg	40000N	1.2
K97DV100M4	153.21	3KW	9.1rpm	3130N.m	175Kg	40000N	1.35
K97DV100M4	140.28	3KW	10rpm	2870N.m	175Kg	40000N	1.5
K97DV100M4	123.93	3KW	11rpm	2530N.m	175Kg	40000N	1.7
K97DV100M4	105.13	3KW	13rpm	2150N.m	175Kg	40000N	2
K97DV100M4	96.8	3KW	14rpm	1980N.m	175Kg	40000N	2.2
K97DV100M4	86.52	3KW	16rpm	1770N.m	175Kg	40000N	2.4
K97DV100M4	77.89	3KW	18rpm	1590N.m	175Kg	40000N	2.7
K97DV100M4	70.54	3KW	20rpm	1440N.m	175Kg	40000N	3
K97DV100M4	62.55	3KW	22rpm	1270N.m	175Kg	40000N	3.4
K97DV100M4	56.55	3KW	25rpm	1150N.m	175Kg	40000N	3.7

K97DRN100M4Speeding machine type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

K97DRN100M4Induction Motor 3Ph motors installed size drawings:

K97DRN100M4At thereducing plant: three days in advance

Motor-gear reducerPresentation of application cases:

Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor

K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox

K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW

标签: 196 laps/minute speed-reducing machine k97drn100m4 k97dv100m4 196 laps/minute for speed-reducing machine 196 laps/minute for gear-reducing tank motor 196 laps/minute for speed-reducing machine 196 laps/minute for power-reducing machine

上一条K97DRE100M4
下一条K97DRE90L4

Documentation related to this product / Related DownLoad

Product Document Name	Click to download
K97DRN100M4减速机样本
K97DRN100M4三维图纸
