K97DT180M4Detailed Information
Keyword: output turn 203 laps/minutereducing motor _ k97dt180m4_k97drs180m4_ output turn 203 laps/minutereducing motor _ 203 laps/minute gear-reducing motor _ one minute turn 203 laps/minutereducing machine _ one minute
K97DT180M4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K97DT180M4 | 41.87 | 18.5KW | 35rpm | 5260N.m | 280Kg | 25100N | 0.85 |
| K97DT180M4 | 30.82 | 18.5KW | 47rpm | 3720N.m | 280Kg | 26000N | 1.15 |
| K97DT180M4 | 27.91 | 18.5KW | 52rpm | 3370N.m | 280Kg | 26000N | 1.25 |
| K97DT180M4 | 24.75 | 18.5KW | 59rpm | 2990N.m | 280Kg | 26000N | 1.45 |
| K97DT180M4 | 22.37 | 18.5KW | 65rpm | 2700N.m | 280Kg | 25900N | 1.6 |
| K97DT180M4 | 18.96 | 18.5KW | 77rpm | 2290N.m | 280Kg | 25700N | 1.85 |
| K97DT180M4 | 16.56 | 18.5KW | 88rpm | 2000N.m | 280Kg | 25300N | 2.2 |
| K97DT180M4 | 13.85 | 18.5KW | 105rpm | 1670N.m | 280Kg | 24800N | 2.6 |
| K97DT180M4 | 11.99 | 18.5KW | 122rpm | 1450N.m | 280Kg | 24300N | 2.7 |
K97DRS180M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K97DRS180M4 | 41.87 | 18.5KW | 35rpm | 5260N.m | 280Kg | 25100N | 0.85 |
| K97DRS180M4 | 30.82 | 18.5KW | 47rpm | 3720N.m | 280Kg | 26000N | 1.15 |
| K97DRS180M4 | 27.91 | 18.5KW | 52rpm | 3370N.m | 280Kg | 26000N | 1.25 |
| K97DRS180M4 | 24.75 | 18.5KW | 59rpm | 2990N.m | 280Kg | 26000N | 1.45 |
| K97DRS180M4 | 22.37 | 18.5KW | 65rpm | 2700N.m | 280Kg | 25900N | 1.6 |
| K97DRS180M4 | 18.96 | 18.5KW | 77rpm | 2290N.m | 280Kg | 25700N | 1.85 |
| K97DRS180M4 | 16.56 | 18.5KW | 88rpm | 2000N.m | 280Kg | 25300N | 2.2 |
| K97DRS180M4 | 13.85 | 18.5KW | 105rpm | 1670N.m | 280Kg | 24800N | 2.6 |
| K97DRS180M4 | 11.99 | 18.5KW | 122rpm | 1450N.m | 280Kg | 24300N | 2.7 |
K97DT180M4Speeding machine type:
K. Dr.bottom foot slashing gears - umbrella gear reduction
Ka. B. Dr.bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power
Kv. B dr.bottom
Kh. B dr.the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor
Kf. Dr. B5 francs with slash gears - umbrella gear reduction
Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power
Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power
Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power
Ka. Dr.empty axle tilt gears - umbrella gear reduction power
Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator
Kh. Dr.empty axle locks slashing gears - umbrella gearreducing power
Kt. Dr.hollow gears installed on the hollow axle
Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine
Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant
Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

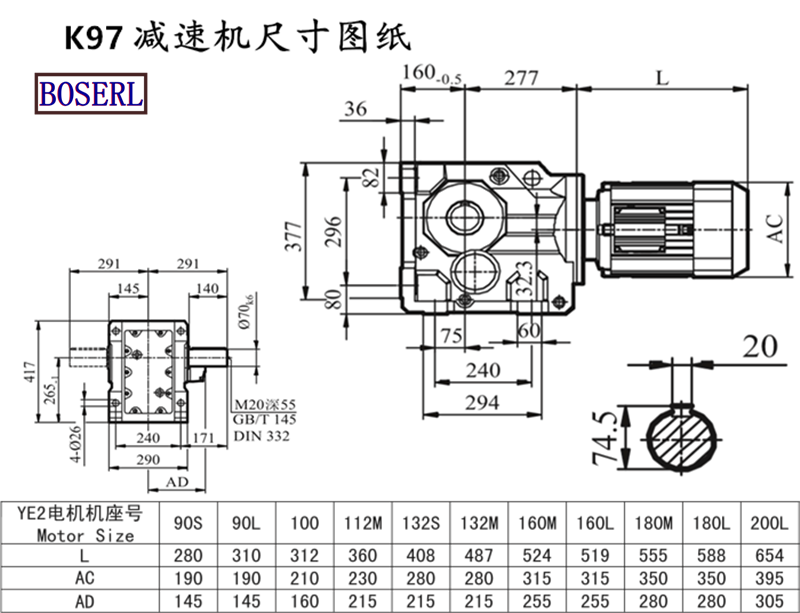

K97DT180M4Induction Motor 3Ph motors installed size drawings:
K97DT180M4At thereducing plant: three days in advance
Motor-gear reducerPresentation of application cases:
Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor
K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox
K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
