K97R57DM63M4Detailed Information
Keyword: how to fit 110 kw electrics with parasol gear gear-reducing box_k97r57dm63m4_k97r57drs80m4
K97R57DM63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K97R57DM63M4 | 8054 | 0.12KW | 0.17r/min | 5460N.m | 153.5kg | 39400N | 0.80 |
| K97R57DM63M4 | 6970 | 0.12KW | 0.20r/min | 4420N.m | 153.5kg | 40000N | 0.95 |
| K97R57DM63M4 | 6027 | 0.12KW | 0.23r/min | 4000N.m | 153.5kg | 40000N | 1.05 |
| K97R57DM63M4 | 5391 | 0.12KW | 0.26r/min | 3650N.m | 153.5kg | 40000N | 1.20 |
| K97R57DM63M4 | 4669 | 0.12KW | 0.30r/min | 3020N.m | 153.5kg | 40000N | 1.40 |
| K97R57DM63M4 | 4082 | 0.12KW | 0.34r/min | 2730N.m | 153.5kg | 40000N | 1.55 |
| K97R57DM63M4 | 3583 | 0.12KW | 0.39r/min | 2370N.m | 153.5kg | 40000N | 1.80 |
| K97R57DM63M4 | 3108 | 0.12KW | 0.44r/min | 2090N.m | 153.5kg | 40000N | 2.00 |
| K97R57DM63M4 | 2757 | 0.12KW | 0.50r/min | 1770N.m | 153.5kg | 40000N | 2.40 |
| K97R57DM63M4 | 2419 | 0.12KW | 0.57r/min | 1650N.m | 153.5kg | 40000N | 2.60 |
| K97R57DM63M4 | 2123 | 0.12KW | 0.65r/min | 1420N.m | 153.5kg | 40000N | 3.00 |
| K97R57DM63M4 | 1856 | 0.12KW | 0.74r/min | 1270N.m | 153.5kg | 40000N | 3.40 |
| K97R57DM63M4 | 1625 | 0.12KW | 0.85r/min | 1040N.m | 153.5kg | 40000N | 4.10 |
| K97R57DM63M4 | 1430 | 0.12KW | 0.96r/min | 890N.m | 153.5kg | 40000N | 4.80 |
| K97R57DM63M4 | 1261 | 0.12KW | 1.10r/min | 860N.m | 153.5kg | 40000N | 5.00 |
| K97R57DM63M4 | 1102 | 0.12KW | 1.20r/min | 755N.m | 153.5kg | 40000N | 5.70 |
K97r57drs80m4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K97R57DRS80M4 | 1102 | 0.75KW | 1.30r/min | 5030N.m | 164kg | 39900N | 0.85 |
| K97R57DRS80M4 | 957 | 0.75KW | 1.50r/min | 4410N.m | 164kg | 40000N | 0.95 |
| K97R57DRS80M4 | 855 | 0.75KW | 1.70r/min | 3940N.m | 164kg | 40000N | 1.10 |
| K97R57DRS80M4 | 573 | 0.75KW | 2.50r/min | 2620N.m | 164kg | 40000N | 1.65 |
| K97R57DRS80M4 | 743 | 0.75KW | 1.90r/min | 3320N.m | 164kg | 40000N | 1.30 |
| K97R57DRS80M4 | 652 | 0.75KW | 2.20r/min | 2930N.m | 164kg | 40000N | 1.45 |
| K97R57DRS80M4 | 504 | 0.75KW | 2.80r/min | 2250N.m | 164kg | 40000N | 1.90 |
| K97R57DRS80M4 | 437 | 0.75KW | 3.30r/min | 1940N.m | 164kg | 40000N | 2.20 |
| K97R57DRS80M4 | 382 | 0.75KW | 3.80r/min | 1720N.m | 164kg | 40000N | 2.50 |
| K97R57DRS80M4 | 305 | 0.75KW | 4.70r/min | 1390N.m | 164kg | 40000N | 3.10 |
| K97R57DRS80M4 | 258 | 0.75KW | 5.60r/min | 1170N.m | 164kg | 40000N | 3.70 |
| K97R57DRS80M4 | 232 | 0.75KW | 6.20r/min | 1050N.m | 164kg | 40000N | 4.10 |
| K97R57DRS80M4 | 199 | 0.75KW | 7.20r/min | 890N.m | 164kg | 40000N | 4.80 |
K97R57DM63M4Speeding machine type:
K97r57dm63m4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka97r57dm63m4 foot hollow axis with tilt gear - umbrella gear-reducing power
The kv97br57dm63m4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh97br57dm63m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf97r57dm63m4b5 installation of tilt gears - umbrella gear reduction power
Kaf97r57dm63m4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf97r57dm63m4b5-franco-axis installation of tilt gear - umbrella gear deviation engine
Khf97r57dm63m4b5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka97r57dm63m4 hollow axle tilt gears - umbrella gear reduction power
Kv97r57dm63m4 space cores fitted with tilt gears - umbrella gear-reducing power
Kh97r57dm63m4 hollow axle locks the slant gears - an umbrella gear-reducing motor
Kt97r57dm63m4 hollow axle is equipped with tilt gears - umbrella gear reduction power
Kaz97r57dm63m4b14 installation of tilt gears - umbrella gear reduction power
Kvz97r57dm63m4b14 installation of tilt gears - umbrella gear deviation power
Khz97r57dm63m4b14 franium axle locks fitted with tilt gears - umbrella gear-reducing power

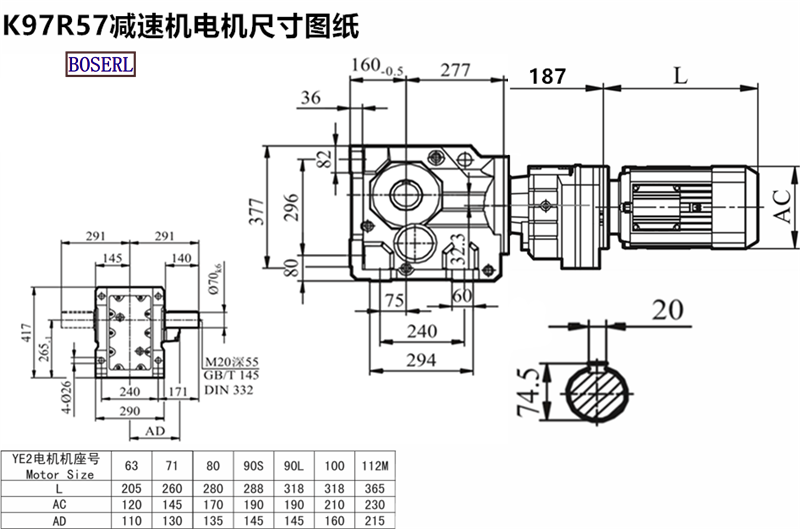

K97R57DM63M4Induction Motor 3Ph motors installed size drawings
K97r57dm63m4 deviation power plant, three days' appointmentMotor-gear reducer
Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor
K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox
K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
