KA107R77DR132M4Detailed Information
Keywords: 18. 5 kw power to what size of a screwdriver gear brake_ka107r77dr132m4_ka107r77dve100m4
KA107R77DR132M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA107R77DR132M4 | 222 | 5.5KW | 6.60r/min | 7400N.m | 346kg | 65000N | 1.10 |
| KA107R77DR132M4 | 196 | 5.5KW | 7.40r/min | 6550N.m | 346kg | 65000N | 1.20 |
| KA107R77DR132M4 | 174 | 5.5KW | 8.40r/min | 5860N.m | 346kg | 65000N | 1.25 |
| KA107R77DR132M4 | 154 | 5.5KW | 9.40r/min | 5190N.m | 346kg | 65000N | 1.40 |
| KA107R77DR132M4 | 140 | 5.5KW | 10.0r/min | 4710N.m | 346kg | 65000N | 1.55 |
Ka107r77dve100m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA107R77DVE100M4 | 615 | 2.2KW | 2.30r/min | 8300N.m | 318kg | 65000N | 0.95 |
| KA107R77DVE100M4 | 522 | 2.2KW | 2.70r/min | 7040N.m | 318kg | 65000N | 1.15 |
| KA107R77DVE100M4 | 461 | 2.2KW | 3.10r/min | 6190N.m | 318kg | 65000N | 1.30 |
| KA107R77DVE100M4 | 408 | 2.2KW | 3.50r/min | 5480N.m | 318kg | 65000N | 1.45 |
| KA107R77DVE100M4 | 364 | 2.2KW | 3.90r/min | 4920N.m | 318kg | 65000N | 1.60 |
| KA107R77DVE100M4 | 318 | 2.2KW | 4.50r/min | 4300N.m | 318kg | 65000N | 1.85 |
| KA107R77DVE100M4 | 286 | 2.2KW | 5.00r/min | 3870N.m | 318kg | 65000N | 2.10 |
| KA107R77DVE100M4 | 251 | 2.2KW | 5.70r/min | 3390N.m | 318kg | 65000N | 2.40 |
KA107R77DR132M4Speeding machine type:
K107r77dr132m4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka107br77dr132m4 foot hollow axis with tilt gears - umbrella gear-reducing power
Kv107br77dr132m4 foot larvae axis installed with tilt gear - umbrella gear reduction power
Kh107 br77dr132m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf 107r77dr132m4b5 installation of tilt gear - umbrella gear reduction power
Kaf107r77dr132m4b5 installation of tilt gear - umbrella gear-reducing power
Kvf107r77dr132m4b5-franco cardiac axles fitted with tilt gears - umbrella gear reduction power
Khf107r77dr132m4b5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka107r77dr132m4 hollow axle tilt gears - umbrella gear reduction power
Kv107r77dr132m4 spaced axles fitted with tilt gears - umbrella gear reduction power
Kh107r77dr132m4 sky axes locked tilt gears - umbrella gear deviation engine
Kt107r77dr132m4 hollow axle is equipped with tilt gears - umbrella gear reduction power
Kaz107r77dr132m4b14 installation of tilt gear - umbrella gear reduction power
Kvz107r77dr132m4b14 installation of tilt gears - umbrella gear-reducing power
Khz107r77dr132m4b14 french axle locks to install tilt gears - umbrella gear reduction power

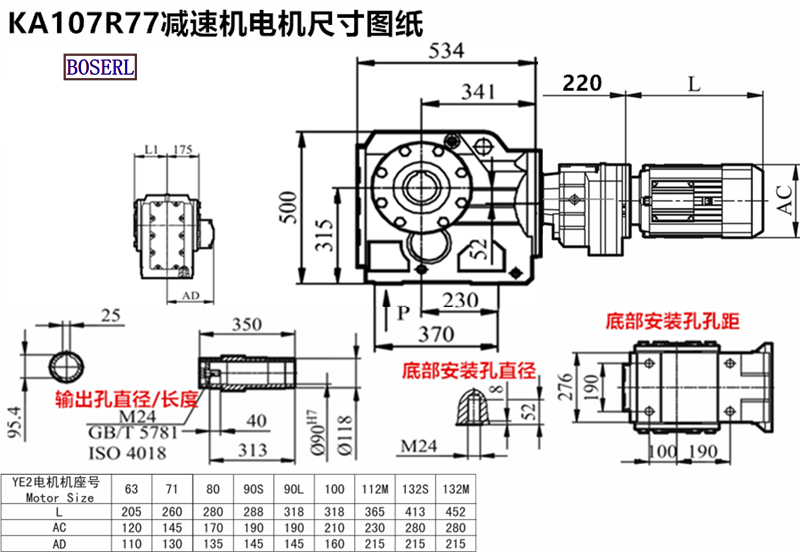

KA107R77DR132M4Induction Motor 3Ph motors installed size drawings
Ka107r77dr132m4 deviation power plant, three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
