KA107R77DV132M4Detailed Information
Keyword: how does 0. 75 kw power fit into a straight-angle pore reduction box _ka107r77dv132m4_ka107r77drn63m4
KA107R77DV132M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA107R77DV132M4 | 222 | 5.5KW | 6.60r/min | 7400N.m | 346kg | 65000N | 1.10 |
| KA107R77DV132M4 | 196 | 5.5KW | 7.40r/min | 6550N.m | 346kg | 65000N | 1.20 |
| KA107R77DV132M4 | 174 | 5.5KW | 8.40r/min | 5860N.m | 346kg | 65000N | 1.25 |
| KA107R77DV132M4 | 154 | 5.5KW | 9.40r/min | 5190N.m | 346kg | 65000N | 1.40 |
| KA107R77DV132M4 | 140 | 5.5KW | 10.0r/min | 4710N.m | 346kg | 65000N | 1.55 |
Ka107r77drn63m4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA107R77DRN63M4 | 14311 | 0.12KW | 0.10r/min | 8850N.m | 291.5kg | 65000N | 0.90 |
| KA107R77DRN63M4 | 12211 | 0.12KW | 0.11r/min | 7550N.m | 291.5kg | 65000N | 1.05 |
| KA107R77DRN63M4 | 10677 | 0.12KW | 0.13r/min | 6600N.m | 291.5kg | 65000N | 1.20 |
| KA107R77DRN63M4 | 9524 | 0.12KW | 0.14r/min | 5890N.m | 291.5kg | 65000N | 1.35 |
| KA107R77DRN63M4 | 8328 | 0.12KW | 0.17r/min | 5150N.m | 291.5kg | 65000N | 1.55 |
| KA107R77DRN63M4 | 7270 | 0.12KW | 0.19r/min | 4490N.m | 291.5kg | 65000N | 1.80 |
| KA107R77DRN63M4 | 6184 | 0.12KW | 0.22r/min | 3700N.m | 291.5kg | 65000N | 2.20 |
| KA107R77DRN63M4 | 5662 | 0.12KW | 0.24r/min | 3210N.m | 291.5kg | 65000N | 2.50 |
| KA107R77DRN63M4 | 5138 | 0.12KW | 0.27r/min | 2910N.m | 291.5kg | 65000N | 2.70 |
| KA107R77DRN63M4 | 4359 | 0.12KW | 0.32r/min | 2670N.m | 291.5kg | 65000N | 3.00 |
KA107R77DV132M4Speeding machine type:
K107r77dv132m4 bottom foot is fitted with tilt gear - umbrella gear reduction power
Ka107br77dv132m4 foot hollow axis installed with slash gears - umbrella gear reduction power
The kv107br77dv132m4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh107 br77dv132m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf 107r77dv132m4b5 installation of tilt gear - umbrella gear-reducing power
Kaf107r77dv132m4b5 french aerocentric axle is equipped with tilt gears - umbrella gear reduction power
Kvf107r77dv132m4b5 frandra keys installation of tilt gears - umbrella gear deviation engine
Khf107r77dv132m4b5farland axial axle locks fitted with tilt gears - umbrella gear reduction power
Ka107r77dv132m4 hollow axle tilt gears - an umbrella gear decelerator power plant
The kv107r77dv132m4 spaced axle is equipped with tilt gears - an umbrella gear decelerator
Kh107r77dv132m4 empty axle locks slashing gears - umbrella gear reduction power
Kt107r77dv132m4 hollow axle is equipped with tilt gears - umbrella gear reduction power
Kaz107r77dv132m4b14 installation of tilt gear - umbrella gear reduction power
Kvz107r77dv132m4b14 installation of tilt gears - umbrella gear reduction power
Khz107r77dv132m4b14 french axle locks with tilt gears - an umbrella gear reduction power

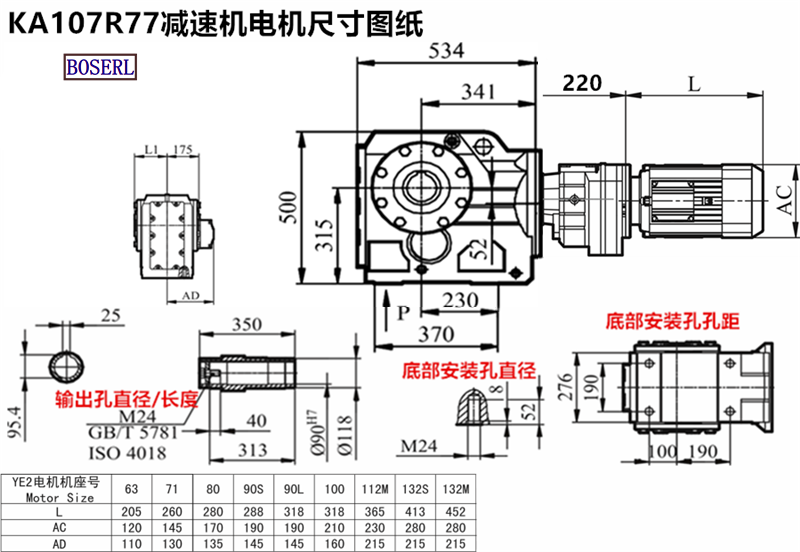

KA107R77DV132M4Induction Motor 3Ph motors installed size drawings
Ka107r77dv132m4 deviation electric power plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How does 0. 75 kw power fit the accelerator of the right angle ka107r77dv132m4 ka107r77drn63m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA107R77DV132M4减速机样本 |
|
| KA107R77DV132M4减速机三维图纸 |
|
