KA107R77DV71MS4Detailed Information
Keyword: 0. 75 kw power with a straight-angle hollow reduction machine_ ka107r77dv71ms4_ka107r77drn80k4
KA107R77DV71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA107R77DV71MS4 | 6184 | 0.25KW | 0.21r/min | 9460N.m | 296kg | 65000N | 0.85 |
| KA107R77DV71MS4 | 5662 | 0.25KW | 0.23r/min | 8480N.m | 296kg | 65000N | 0.95 |
| KA107R77DV71MS4 | 5138 | 0.25KW | 0.25r/min | 7690N.m | 296kg | 65000N | 1.05 |
| KA107R77DV71MS4 | 4359 | 0.25KW | 0.30r/min | 6730N.m | 296kg | 65000N | 1.20 |
| KA107R77DV71MS4 | 3810 | 0.25KW | 0.34r/min | 5880N.m | 296kg | 65000N | 1.35 |
| KA107R77DV71MS4 | 3358 | 0.25KW | 0.39r/min | 5060N.m | 296kg | 65000N | 1.60 |
| KA107R77DV71MS4 | 2977 | 0.25KW | 0.44r/min | 4550N.m | 296kg | 65000N | 1.75 |
| KA107R77DV71MS4 | 2599 | 0.25KW | 0.50r/min | 3970N.m | 296kg | 65000N | 2.00 |
| KA107R77DV71MS4 | 2286 | 0.25KW | 0.57r/min | 3440N.m | 296kg | 65000N | 2.30 |
| KA107R77DV71MS4 | 1939 | 0.25KW | 0.67r/min | 2920N.m | 296kg | 65000N | 2.70 |
| KA107R77DV71MS4 | 1713 | 0.25KW | 0.76r/min | 2670N.m | 296kg | 65000N | 3.00 |
| KA107R77DV71MS4 | 1554 | 0.25KW | 0.84r/min | 2430N.m | 296kg | 65000N | 3.30 |
| KA107R77DV71MS4 | 1336 | 0.25KW | 0.97r/min | 2080N.m | 296kg | 65000N | 3.80 |
Ka107r77drn80k4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA107R77DRN80K4 | 2977 | 0.55KW | 0.46r/min | 9950N.m | 301kg | 65000N | 0.80 |
| KA107R77DRN80K4 | 2599 | 0.55KW | 0.53r/min | 8690N.m | 301kg | 65000N | 0.90 |
| KA107R77DRN80K4 | 2286 | 0.55KW | 0.60r/min | 7590N.m | 301kg | 65000N | 1.05 |
| KA107R77DRN80K4 | 1939 | 0.55KW | 0.71r/min | 6440N.m | 301kg | 65000N | 1.25 |
| KA107R77DRN80K4 | 1713 | 0.55KW | 0.81r/min | 5820N.m | 301kg | 65000N | 1.35 |
| KA107R77DRN80K4 | 1554 | 0.55KW | 0.89r/min | 5280N.m | 301kg | 65000N | 1.50 |
| KA107R77DRN80K4 | 1336 | 0.55KW | 1.00r/min | 4540N.m | 301kg | 65000N | 1.75 |
| KA107R77DRN80K4 | 1166 | 0.55KW | 1.20r/min | 3960N.m | 301kg | 65000N | 2.00 |
| KA107R77DRN80K4 | 1030 | 0.55KW | 1.30r/min | 3400N.m | 301kg | 65000N | 2.40 |
| KA107R77DRN80K4 | 904 | 0.55KW | 1.50r/min | 2960N.m | 301kg | 65000N | 2.70 |
| KA107R77DRN80K4 | 793 | 0.55KW | 1.70r/min | 2680N.m | 301kg | 65000N | 3.00 |
| KA107R77DRN80K4 | 696 | 0.55KW | 2.00r/min | 2330N.m | 301kg | 65000N | 3.40 |
| KA107R77DRN80K4 | 615 | 0.55KW | 2.20r/min | 2010N.m | 301kg | 65000N | 4.00 |
KA107R77DV71MS4Speeding machine type:
K107r77dv71ms4 bottom foot is fitted with tilt gear - umbrella gear-reducing power
Ka107r77dv71ms4 foot hollow axis with slash gears - umbrella gear-reducing power
The kv107br77dv71ms4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh107 br77dv71ms4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf107r77dv71ms4b5 installation of tilt gear - umbrella gear reduction power
Kaf107r77dv71ms4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf107r77dv71ms4b5francocardimetric axis fitted with tilt gears - umbrella gear reduction power
Khf107r77dv71ms4b5farland axle locks fitted with tilt gears - an umbrella gear-reducing power plant
Ka107r77dv71ms4 sky axis tilt gear - umbrella gear deviation power
Kv107r77dv71ms4 hollow gears - umbrella gear deviation engine
Kh107r77dv71ms4 empty axle locks slashing gears - umbrella gear reduction power
Installation of tilt gears on kt107r77dv71ms4 hollow axle - umbrella gear reduction power
Kaz107r77dv71ms4b14 installation of tilt gear - umbrella gear reduction power
Kvz107r77dv71ms4b14 installation of tilt gears - umbrella gear reduction power
Dhz107r77dv71ms4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

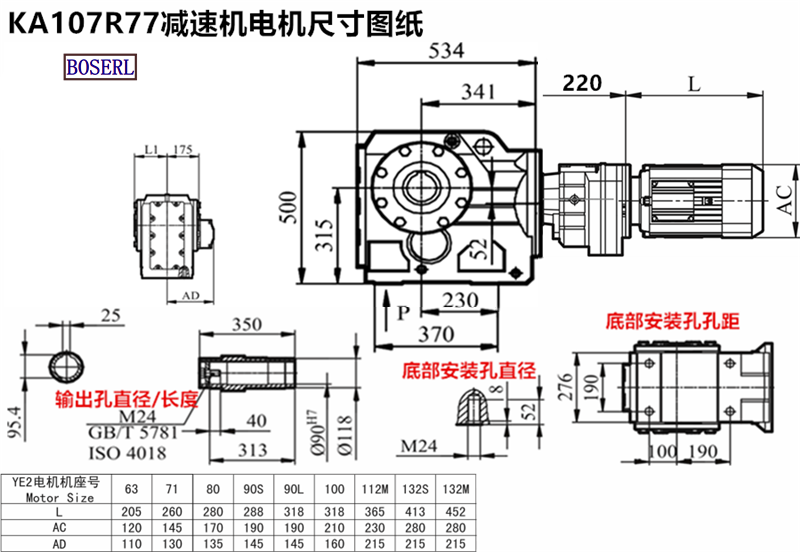

KA107R77DV71MS4Induction Motor 3Ph motors installed size drawings
Ka107r77dv71ms4 deviation power plant, three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How does 0. 75 kw power fit a straight-angled, hollow-retarder ka107r77dv71ms4 ka107r77drn80k4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA107R77DV71MS4减速机样本 |
|
| KA107R77DV71MS4减速机三维图纸 |
|
