KA127R77DM112M4Detailed Information
Keyword: how the 15kw power works with a straight-angle mid-air brake_ka127r77dm112m4_ka127r77drs90m4
KA127R77DM112M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DM112M4 | 610 | 4KW | 2.40r/min | 14700N.m | 462kg | 76500N | 0.90 |
| KA127R77DM112M4 | 549 | 4KW | 2.70r/min | 13200N.m | 462kg | 79000N | 1.00 |
| KA127R77DM112M4 | 477 | 4KW | 3.10r/min | 11500N.m | 462kg | 80000N | 1.15 |
| KA127R77DM112M4 | 418 | 4KW | 3.50r/min | 10100N.m | 462kg | 80600N | 1.30 |
KA127R77DRS90M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DRS90M4 | 1926 | 1.1KW | 0.74r/min | 12900N.m | 436kg | 79200N | 1.00 |
| KA127R77DRS90M4 | 1757 | 1.1KW | 0.81r/min | 11800N.m | 436kg | 79800N | 1.10 |
| KA127R77DRS90M4 | 1541 | 1.1KW | 0.92r/min | 10300N.m | 436kg | 80500N | 1.25 |
| KA127R77DRS90M4 | 1342 | 1.1KW | 1.10r/min | 9030N.m | 436kg | 81100N | 1.45 |
| KA127R77DRS90M4 | 1177 | 1.1KW | 1.20r/min | 7900N.m | 436kg | 81500N | 1.65 |
| KA127R77DRS90M4 | 1025 | 1.1KW | 1.40r/min | 6900N.m | 436kg | 81800N | 1.90 |
| KA127R77DRS90M4 | 899 | 1.1KW | 1.60r/min | 6030N.m | 436kg | 82000N | 2.20 |
| KA127R77DRS90M4 | 790 | 1.1KW | 1.80r/min | 5190N.m | 436kg | 82300N | 2.50 |
| KA127R77DRS90M4 | 704 | 1.1KW | 2.00r/min | 4700N.m | 436kg | 82400N | 2.80 |
| KA127R77DRS90M4 | 610 | 1.1KW | 2.30r/min | 4040N.m | 436kg | 82500N | 3.20 |
| KA127R77DRS90M4 | 549 | 1.1KW | 2.60r/min | 3650N.m | 436kg | 82600N | 3.60 |
| KA127R77DRS90M4 | 477 | 1.1KW | 3.00r/min | 3140N.m | 436kg | 82600N | 4.10 |
KA127R77DM112M4Speeding machine type:
K127r77dm112m4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka127br77dm112m4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv127 br77dm112m4 foot larvae axis is fitted with tilt gears - umbrella gear reduction power
Kh127 br77dm112m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf127r77dm112m4b5 installation of tilt gears - umbrella gear-reducing power
Kaf127r77dm112m4b5 french aerocentric axes fitted with tilt gears - umbrella gear reduction power
Kvf127r77dm112m4b5-franco cardiac axe installation of tilt gear - umbrella gear deviation engine
Khf127r77dm112m4b5 franium axle locks fitted with tilt gears - an umbrella gear-reducing power plant
Ka127r77dm112m4 hollow axle oscillating gears - an umbrella gear deceleration power plant
Kv127r77dm112m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh127r77dm112m4 sky axes locked tilt gears - umbrella gear deviation engine
The kt127r77dm112m4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz127r77dm112m4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r77dm112m4b14 installation of tilt gears - umbrella gear reduction power
Khz127r77dm112m4b14 franium axial axle locks fitted with tilt gears - umbrella gear reduction power

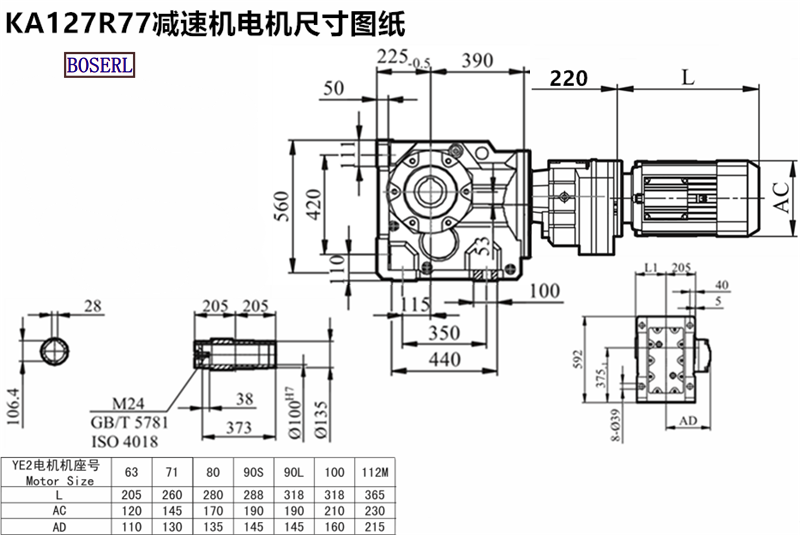

KA127R77DM112M4Induction Motor 3Ph motors installed size drawings
Ka127r77dm112m4 deviation electric power plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
