KA127R77DM71D4Detailed Information
Keywords: 1. 1 kw power sets with a perforated axle axle decelerator_ka127r77dm71d4_ka127r77drrs100lc4
KA127R77DM71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DM71D4 | 7482 | 0.37KW | 0.18r/min | 16500N.m | 426.5kg | 72700N | 0.80 |
| KA127R77DM71D4 | 6565 | 0.37KW | 0.21r/min | 14500N.m | 426.5kg | 76900N | 0.90 |
| KA127R77DM71D4 | 5804 | 0.37KW | 0.24r/min | 12600N.m | 426.5kg | 79400N | 1.05 |
| KA127R77DM71D4 | 5027 | 0.37KW | 0.27r/min | 11000N.m | 426.5kg | 80200N | 1.20 |
| KA127R77DM71D4 | 4423 | 0.37KW | 0.31r/min | 9610N.m | 426.5kg | 80800N | 1.35 |
| KA127R77DM71D4 | 3889 | 0.37KW | 0.35r/min | 8410N.m | 426.5kg | 81300N | 1.55 |
| KA127R77DM71D4 | 3311 | 0.37KW | 0.42r/min | 7080N.m | 426.5kg | 81800N | 1.85 |
| KA127R77DM71D4 | 1926 | 0.37KW | 0.72r/min | 4280N.m | 426.5kg | 82400N | 3.00 |
| KA127R77DM71D4 | 1757 | 0.37KW | 0.79r/min | 3900N.m | 426.5kg | 82500N | 3.30 |
| KA127R77DM71D4 | 1541 | 0.37KW | 0.90r/min | 3390N.m | 426.5kg | 82600N | 3.80 |
Ka127r77drs100lc4 deviation motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DRS100LC4 | 790 | 3KW | 1.80r/min | 14200N.m | 451kg | 77400N | 0.90 |
| KA127R77DRS100LC4 | 704 | 3KW | 2.10r/min | 12700N.m | 451kg | 79300N | 1.00 |
| KA127R77DRS100LC4 | 610 | 3KW | 2.40r/min | 11000N.m | 451kg | 80200N | 1.20 |
| KA127R77DRS100LC4 | 549 | 3KW | 2.60r/min | 9960N.m | 451kg | 80700N | 1.30 |
| KA127R77DRS100LC4 | 477 | 3KW | 3.00r/min | 8620N.m | 451kg | 81200N | 1.50 |
| KA127R77DRS100LC4 | 418 | 3KW | 3.50r/min | 7590N.m | 451kg | 81600N | 1.70 |
KA127R77DM71D4Speeding machine type:
K127r77dm71d4 bottom foot is equipped with tilt gears - umbrella gear reduction power
Ka127br77dm71d4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv127 br77dm71d4 bottom foot larvae axis is equipped with tilt gears - umbrella gear-reducing motors
Kh127 br77dm71d4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf127r77dm71d4b5 installation of tilt gear - umbrella gear reduction power
Kaf127r77dm71d4b5 french aerocentric axles with tilt gears - umbrella gear reduction power
Frf127r77dm71d4b5 installation of tilt gears - umbrella gear-reducing power
Khf127r77dm71d4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka127r77dm71d4 hollow axle tilt gears - umbrella gear reduction power
Kv127r77dm71d4 installation of tilt gears - umbrella gear reduction power
Kh127r77dm71d4 sky axe locked tilt gears - umbrella gear deviation engine
Installation of tilt gears on the kt127r77dm71d4 hollow axle - umbrella gear reduction power
Kaz127r77dm71d4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r77dm71d4b14francocardiograms fitted with tilt gears - umbrella gear-reducing power
Khz127r77dm71d4b14farland axle locks fitted with tilt gears - umbrella gear-reducing power

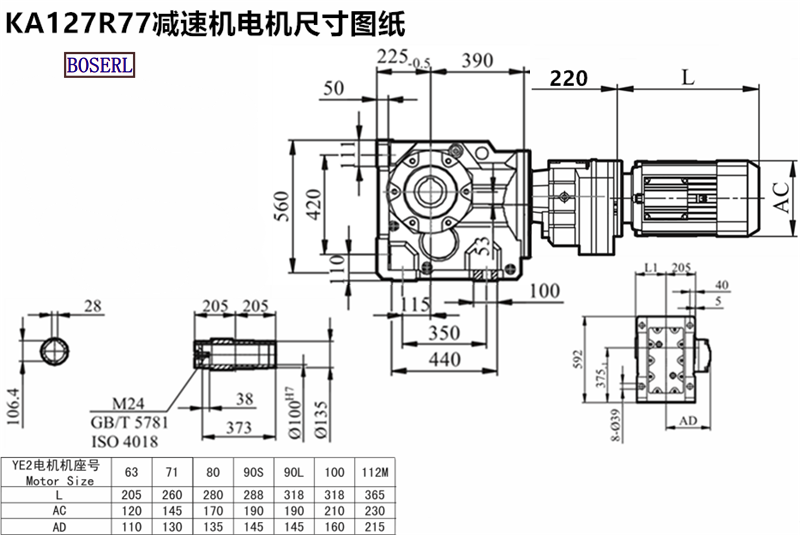

KA127R77DM71D4Induction Motor 3Ph motors installed size drawings
Ka127r77dm71d4 deviation plant, three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How 1. 1kw power is fitted with a 孔a127r77dm71d4ka127r77drs100lc4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA127R77DM71D4减速机样本 |
|
| KA127R77DM71D4减速机三维图纸 |
|
