KA127R77DR63L4Detailed Information
Keyword: how does 3kw power fit a straight-angle hollow axle deceleration? ka127r77dr63l4_ka127r77dve100ls4
KA127R77DR63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DR63L4 | 14975 | 0.18KW | 0.09r/min | 15700N.m | 422kg | 74400N | 0.80 |
| KA127R77DR63L4 | 12440 | 0.18KW | 0.11r/min | 13100N.m | 422kg | 79100N | 1 .00 |
| KA127R77DR63L4 | 10915 | 0.18KW | 0.12r/min | 11500N.m | 422kg | 80000N | 1.15 |
| KA127R77DR63L4 | 9819 | 0.18KW | 0.13r/min | 10300N.m | 422kg | 80500N | 1.25 |
| KA127R77DR63L4 | 8443 | 0.18KW | 0.16r/min | 8870N.m | 422kg | 81100N | 1.45 |
| KA127R77DR63L4 | 7482 | 0.18KW | 0.18r/min | 7880N.m | 422kg | 81500N | 1.65 |
| KA127R77DR63L4 | 6565 | 0.18KW | 0.20r/min | 6910N.m | 422kg | 81800N | 1.90 |
| KA127R77DR63L4 | 5804 | 0.18KW | 0.23r/min | 5880N.m | 422kg | 82100N | 2.20 |
| KA127R77DR63L4 | 5027 | 0.18KW | 0.26r/min | 5210N.m | 422kg | 82300N | 2.50 |
| KA127R77DR63L4 | 4423 | 0.18KW | 0.30r/min | 4480N.m | 422kg | 82400N | 2.90 |
| KA127R77DR63L4 | 3889 | 0.18KW | 0.34r/min | 3900N.m | 422kg | 82500N | 3.30 |
| KA127R77DR63L4 | 3311 | 0.18KW | 0.40r/min | 3240N.m | 422kg | 82600N | 4.00 |
Ka127r77dve100ls4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DVE100LS4 | 1025 | 2.2KW | 1.40r/min | 13900N.m | 448kg | 78100N | 0.95 |
| KA127R77DVE100LS4 | 899 | 2.2KW | 1.60r/min | 12200N.m | 448kg | 79600N | 1.05 |
| KA127R77DVE100LS4 | 790 | 2.2KW | 1.80r/min | 10600N.m | 448kg | 80400N | 1.20 |
| KA127R77DVE100LS4 | 704 | 2.2KW | 2.00r/min | 9530N.m | 448kg | 80900N | 1.35 |
| KA127R77DVE100LS4 | 610 | 2.2KW | 2.30r/min | 8230N.m | 448kg | 81400N | 1.60 |
| KA127R77DVE100LS4 | 549 | 2.2KW | 2.60r/min | 7420N.m | 448kg | 81600N | 1.75 |
| KA127R77DVE100LS4 | 477 | 2.2KW | 3.00r/min | 6410N.m | 448kg | 81900N | 2.00 |
| KA127R77DVE100LS4 | 418 | 2.2KW | 3.40r/min | 5650N.m | 448kg | 82100N | 2.30 |
KA127R77DR63L4Speeding machine type:
K127r77dr63l4 bottom foot fitted with tilt gears - umbrella gear reduction power
Ka127br77dr63l4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv127 br77dr63l4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear decelerator
Kh127 br77dr63l4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf 127r77dr63l4b5 installation of tilt gears - umbrella gear reduction power
Kaf127r77dr63l4b5farland aerocentric axle is fitted with tilt gears - umbrella gear reduction power
Kvf127r77dr63l4b5franco-axis installation of tilt gear - umbrella gear deviation engine
Khf127r77dr63l4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka127r77dr63l4 hollow axle tilt gears - umbrella gear deceleration power
Kv127r77dr63l4 space cores fitted with tilt gears - umbrella gear-reducing power
Kh127r77dr63l4 hollow axle locks the slant gears - an umbrella gear reduction machine
The kt127r77dr63l4 hollow axle is equipped with tilt gears - an umbrella gear reduction power
Kaz127r77dr63l4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r77dr63l4b14 installation of slashing gears - umbrella gear reduction power
Khz127r77dr63l4b14 franium axle locks fitted with tilt gears - umbrella gear-reducing power

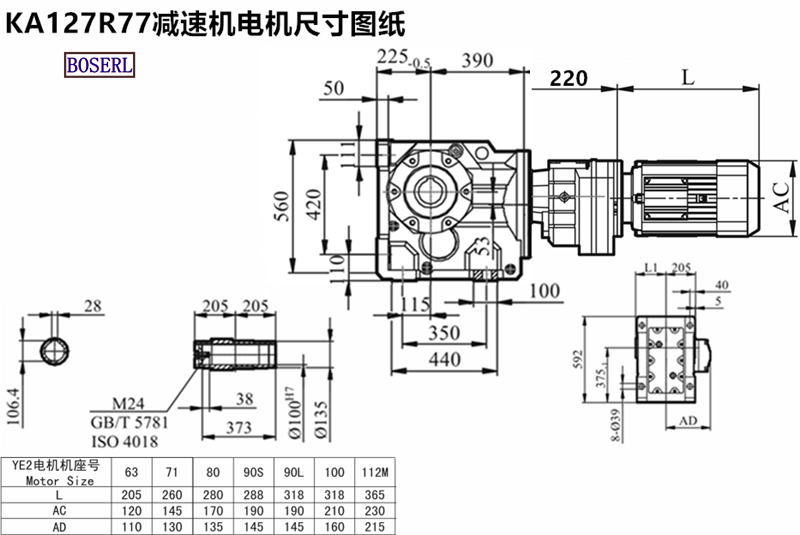

KA127R77DR63L4Induction Motor 3Ph motors installed size drawings
Ka127r77dr63l4 power-reducing plantThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
