KA127R77DR80M4Detailed Information
Keywords: how does a 15kw power fit a straight-angle pore-discharger _ ka127r77dr80m4_ka127r77dve100m4
KA127R77DR80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DR80M4 | 3311 | 0.75KW | 0.43r/min | 14500N.m | 432kg | 77000N | 0.90 |
| KA127R77DR80M4 | 3009 | 0.75KW | 0.48r/min | 13100N.m | 432kg | 79100N | 1.00 |
| KA127R77DR80M4 | 2607 | 0.75KW | 0.55r/min | 11200N.m | 432kg | 80100N | 1.15 |
| KA127R77DR80M4 | 1926 | 0.75KW | 0.74r/min | 8650N.m | 432kg | 81200N | 1.50 |
| KA127R77DR80M4 | 1757 | 0.75KW | 0.82r/min | 7880N.m | 432kg | 81500N | 1.65 |
| KA127R77DR80M4 | 1541 | 0.75KW | 0.93r/min | 6880N.m | 432kg | 81800N | 1.90 |
| KA127R77DR80M4 | 1342 | 0.75KW | 1.10r/min | 6020N.m | 432kg | 82100N | 2.20 |
| KA127R77DR80M4 | 1177 | 0.75KW | 1.20r/min | 5250N.m | 432kg | 82200N | 2.50 |
| KA127R77DR80M4 | 1025 | 0.75KW | 1.40r/min | 4600N.m | 432kg | 82400N | 2.80 |
| KA127R77DR80M4 | 899 | 0.75KW | 1.60r/min | 4010N.m | 432kg | 82500N | 3.20 |
Ka127r77dve100m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DVE100M4 | 1025 | 2.2KW | 1.40r/min | 13900N.m | 448kg | 78100N | 0.95 |
| KA127R77DVE100M4 | 899 | 2.2KW | 1.60r/min | 12200N.m | 448kg | 79600N | 1.05 |
| KA127R77DVE100M4 | 790 | 2.2KW | 1.80r/min | 10600N.m | 448kg | 80400N | 1.20 |
| KA127R77DVE100M4 | 704 | 2.2KW | 2.00r/min | 9530N.m | 448kg | 80900N | 1.35 |
| KA127R77DVE100M4 | 610 | 2.2KW | 2.30r/min | 8230N.m | 448kg | 81400N | 1.60 |
| KA127R77DVE100M4 | 549 | 2.2KW | 2.60r/min | 7420N.m | 448kg | 81600N | 1.75 |
| KA127R77DVE100M4 | 477 | 2.2KW | 3.00r/min | 6410N.m | 448kg | 81900N | 2.00 |
| KA127R77DVE100M4 | 418 | 2.2KW | 3.40r/min | 5650N.m | 448kg | 82100N | 2.30 |
KA127R77DR80M4Speeding machine type:
K127r77dr80m4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka127br77dr80m4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv127 br77dr80m4 bottom foot larvae axis is equipped with a tilt gear - an umbrella gear-reducing power plant
Kh127 br77dr80m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf127r77dr80m4b5 installation of tilt gears - umbrella gear reduction power
Kaf127r77dr80m4b5 french aerocentric axis is equipped with tilt gears - umbrella gear reduction power
Kvf127r77dr80m4b5-franco-axis installation of tilt gear - umbrella gear deviation engine
Khf127r77dr80m4b5 franium axle locks fitted with tilt gears - umbrella gear-reducing power
Ka127r77dr80m4 hollow axle tilt gears - an umbrella gear-reducing motor
Kv127r77dr80m4 space cores equipped with tilt gears - umbrella gear reduction power
Kh127r77dr80m4 hollow axle locks the slant gears - an umbrella gear-reducing motor
The kt127r77dr80m4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz127r77dr80m4b14 installation of tilt gear - umbrella gear-reducing electric power
Kvz127r77dr80m4b14 installation of slashing gears - umbrella gear reduction power
Khz127r77dr80m4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

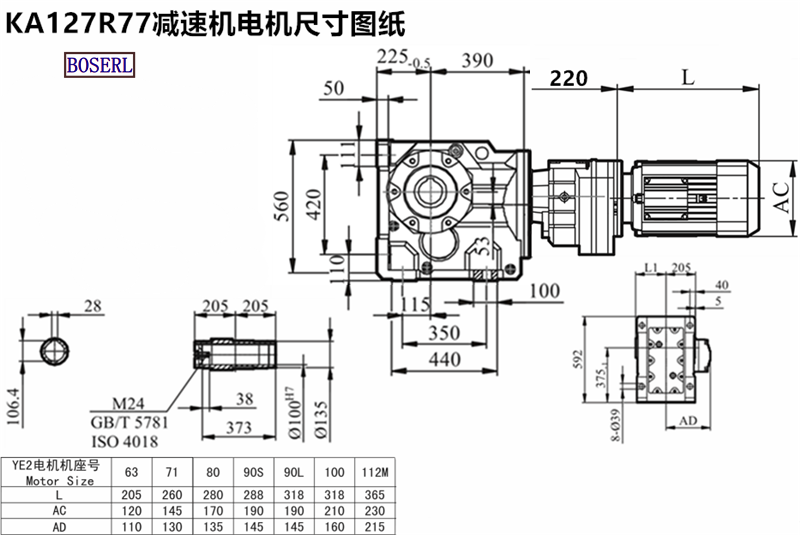

KA127R77DR80M4Induction Motor 3Ph motors installed size drawings
Ka127r77dr80m4 deviation power plantThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How 15kw power is fitted with a a127r77r80m4ka127r77dve100m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA127R77DR80M4减速机样本 |
|
| KA127R77DR80M4减速机三维图纸 |
|
