KA127R77DR80MK4Detailed Information
Keyword: how to fit a 3kw power with a straight-angle heart-reducing power _ ka127r77dr80mk4_ka127r77dve71s4
KA127R77DR80MK4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DR80MK4 | 4423 | 0.55KW | 0.31r/min | 14600N.m | 431kg | 76600N | 0.90 |
| KA127R77DR80MK4 | 3889 | 0.55KW | 0.35r/min | 12800N.m | 431kg | 79200N | 1.00 |
| KA127R77DR80MK4 | 3311 | 0.55KW | 0.42r/min | 10800N.m | 431kg | 80300N | 1.20 |
| KA127R77DR80MK4 | 3009 | 0.55KW | 0.46r/min | 9840N.m | 431kg | 80700N | 1.30 |
| KA127R77DR80MK4 | 2607 | 0.55KW | 0.53r/min | 8450N.m | 431kg | 81300N | 1.55 |
| KA127R77DR80MK4 | 1926 | 0.55KW | 0.72r/min | 6520N.m | 431kg | 81900N | 2.00 |
| KA127R77DR80MK4 | 1757 | 0.55KW | 0.79r/min | 5940N.m | 431kg | 82100N | 2.20 |
| KA127R77DR80MK4 | 1541 | 0.55KW | 0.90r/min | 5180N.m | 431kg | 82300N | 2.50 |
| KA127R77DR80MK4 | 1342 | 0.55KW | 1.00r/min | 4540N.m | 431kg | 82400N | 2.90 |
| KA127R77DR80MK4 | 1177 | 0.55KW | 1.20r/min | 3950N.m | 431kg | 82500N | 3.30 |
| KA127R77DR80MK4 | 1025 | 0.55KW | 1.40r/min | 3460N.m | 431kg | 82600N | 3.80 |
Ka127r77dve71s4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DVE71S4 | 9819 | 0.25KW | 0.13r/min | 15100N.m | 426kg | 75600N | 0.85 |
| KA127R77DVE71S4 | 8443 | 0.25KW | 0.15r/min | 13000N.m | 426kg | 79200N | 1.00 |
| KA127R77DVE71S4 | 7482 | 0.25KW | 0.17r/min | 11500N.m | 426kg | 79900N | 1.10 |
| KA127R77DVE71S4 | 6565 | 0.25KW | 0.20r/min | 10100N.m | 426kg | 80600N | 1.30 |
| KA127R77DVE71S4 | 5804 | 0.25KW | 0.22r/min | 8750N.m | 426kg | 81200N | 1.50 |
| KA127R77DVE71S4 | 5027 | 0.25KW | 0.26r/min | 7690N.m | 426kg | 81600N | 1.70 |
| KA127R77DVE71S4 | 4423 | 0.25KW | 0.29r/min | 6660N.m | 426kg | 81900N | 1.95 |
| KA127R77DVE71S4 | 3889 | 0.25KW | 0.33r/min | 5820N.m | 426kg | 82100N | 2.20 |
| KA127R77DVE71S4 | 3311 | 0.25KW | 0.39r/min | 4870N.m | 426kg | 82300N | 2.70 |
KA127R77DR80MK4Speeding machine type:
K127r77dr80mk4 bottom foot with tilt gear - umbrella gear deviation engine
Ka127br77dr80mk4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv127br77dr80mk4 bottom feet cascular axes installation of tilt gear - umbrella gear deviation engine
Kh127 br77dr80mk 4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf127r77dr80mk4b5 installation of tilt gear - umbrella gear-reducing power
Kaf127r77dr80mk4b5 installation of tilt gears - umbrella gear reduction power
Frf 127r77dr80mk4b5 installation of tilt gears - umbrella gear-reducing power
Khf127r77dr80mk4b5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka127r77dr80mk4 hollow axle tilt gears - an umbrella gear reduction power
Kv127r77dr80mk4 space cores fitted with tilt gears - umbrella gear reduction power
Kh127r77dr80mk4 hollow axle locks the slashing gears - an umbrella gear-reducing motor
The kt127r77dr80mk4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz127r77dr80mk4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing power units in the franberry axle-axis kvz127r77dr80mk4b14
Dhz127r77dr80mk4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

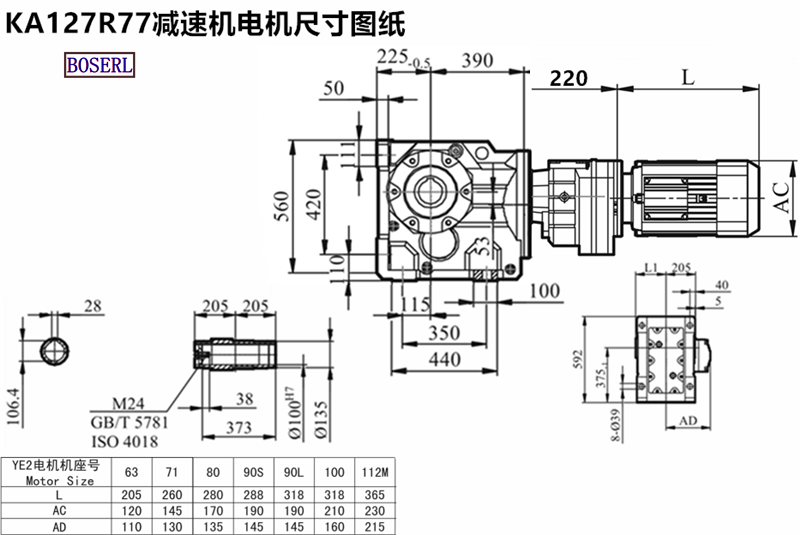

KA127R77DR80MK4Induction Motor 3Ph motors installed size drawings
Ka127r77dr80mk4 deviation power plantThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
