KA127R77DT100LS4Detailed Information
Keyword: how 3kw power is equipped with a straight-angle hollow retarder _ka127r77dt100ls4_ka127r77dre80n4
KA127R77DT100LS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DT100LS4 | 1025 | 2.2KW | 1.40r/min | 13900N.m | 448kg | 78100N | 0.95 |
| KA127R77DT100LS4 | 899 | 2.2KW | 1.60r/min | 12200N.m | 448kg | 79600N | 1.05 |
| KA127R77DT100LS4 | 790 | 2.2KW | 1.80r/min | 10600N.m | 448kg | 80400N | 1.20 |
| KA127R77DT100LS4 | 704 | 2.2KW | 2.00r/min | 9530N.m | 448kg | 80900N | 1.35 |
| KA127R77DT100LS4 | 610 | 2.2KW | 2.30r/min | 8230N.m | 448kg | 81400N | 1.60 |
| KA127R77DT100LS4 | 549 | 2.2KW | 2.60r/min | 7420N.m | 448kg | 81600N | 1.75 |
| KA127R77DT100LS4 | 477 | 2.2KW | 3.00r/min | 6410N.m | 448kg | 81900N | 2.00 |
| KA127R77DT100LS4 | 418 | 2.2KW | 3.40r/min | 5650N.m | 448kg | 82100N | 2.30 |
Ka127r77dre80n4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DRE80N4 | 3311 | 0.75KW | 0.43r/min | 14500N.m | 432kg | 77000N | 0.90 |
| KA127R77DRE80N4 | 3009 | 0.75KW | 0.48r/min | 13100N.m | 432kg | 79100N | 1.00 |
| KA127R77DRE80N4 | 2607 | 0.75KW | 0.55r/min | 11200N.m | 432kg | 80100N | 1.15 |
| K127R77DRE80N4 | 1926 | 0.75KW | 0.74r/min | 8650N.m | 432kg | 81200N | 1.50 |
| KA127R77DRE80N4 | 1757 | 0.75KW | 0.82r/min | 7880N.m | 432kg | 81500N | 1.65 |
| KA127R77DRE80N4 | 1541 | 0.75KW | 0.93r/min | 6880N.m | 432kg | 81800N | 1.90 |
| KA127R77DRE80N4 | 1342 | 0.75KW | 1.10r/min | 6020N.m | 432kg | 82100N | 2.20 |
| KA127R77DRE80N4 | 1177 | 0.75KW | 1.20r/min | 5250N.m | 432kg | 82200N | 2.50 |
| KA127R77DRE80N4 | 1025 | 0.75KW | 1.40r/min | 4600N.m | 432kg | 82400N | 2.80 |
| KA127R77DRE80N4 | 899 | 0.75KW | 1.60r/min | 4010N.m | 432kg | 82500N | 3.20 |
KA127R77DT100LS4Speeding machine type:
K127r77dt100ls4 bottom foot installation of tilt gear - umbrella gear deviation engine
Ka127br77dt100ls 4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv127br77dt100ls4 bottom foot larvae axis with tilt gears - umbrella gear reduction power
Kh127 br77dt100ls 4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf127r77dt100ls4b5 installation of tilt gear - umbrella gear-reducing power
Kaf127r77dt100ls4b5 installation of tilt gears - umbrella gear reduction power
Frf127r77dt100ls4b5 installation of tilt gears - umbrella gear reduction power
Khf127r77dt100ls4b5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka127r77dt100ls4 sky axis tilt gear - umbrella gear deviation power
Kv127r77dt100ls4 space cores fitted with tilt gears - umbrella gear reduction power
Kh127r77dt100ls4 sky axe locked tilt gear - umbrella gear deviation engine
The kt127r77dt100ls4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz127r77dt100ls4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r77dt100ls4b14 installation of tilt gear - umbrella gear reduction power
Khz127r77dt100ls4b14 french axial axle locks fitted with tilt gears - an umbrella gear-reducing motor

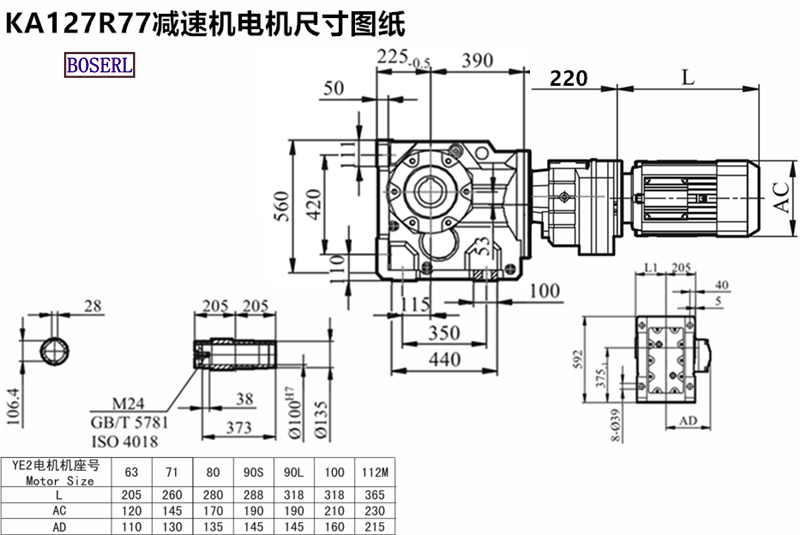

KA127R77DT100LS4Induction Motor 3Ph motors installed size drawings
Ka127r77dt100ls4 deviation power plant, three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How 3kw power is fitted with a straight-angle hollow speed reduction machine ka127r77dt100ls4 ka127r77dre80n4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA127R77DT100LS4减速机样本 |
|
| KA127R77DT100LS4减速机三维图纸 |
|
