KA127R77DV71M4Detailed Information
Keyword: how does a 15kw power fit a straight-angle hollow axle decelerator _ ka127r77dv71m4_ka127r77drn63m4
KA127R77DV71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DV71M4 | 7482 | 0.37KW | 0.18r/min | 16500N.m | 426.5kg | 72700N | 0.80 |
| KA127R77DV71M4 | 6565 | 0.37KW | 0.21r/min | 14500N.m | 426.5kg | 76900N | 0.90 |
| KA127R77DV71M4 | 5804 | 0.37KW | 0.24r/min | 12600N.m | 426.5kg | 79400N | 1.05 |
| KA127R77DV71M4 | 5027 | 0.37KW | 0.27r/min | 11000N.m | 426.5kg | 80200N | 1.20 |
| KA127R77DV71M4 | 4423 | 0.37KW | 0.31r/min | 9610N.m | 426.5kg | 80800N | 1.35 |
| KA127R77DV71M4 | 3889 | 0.37KW | 0.35r/min | 8410N.m | 426.5kg | 81300N | 1.55 |
| KA127R77DV71M4 | 3311 | 0.37KW | 0.42r/min | 7080N.m | 426.5kg | 81800N | 1.85 |
| KA127R77DV71M4 | 1926 | 0.37KW | 0.72r/min | 4280N.m | 426.5kg | 82400N | 3.00 |
| KA127R77DV71M4 | 1757 | 0.37KW | 0.79r/min | 3900N.m | 426.5kg | 82500N | 3.30 |
| KA127R77DV71M4 | 1541 | 0.37KW | 0.90r/min | 3390N.m | 426.5kg | 82600N | 3.80 |
Ka127r77drn63m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DRN63M4 | 17550 | 0.12KW | 0.08r/min | 10800N.m | 421.5kg | 80300N | 1.20 |
| KA127R77DRN63M4 | 16006 | 0.12KW | 0.09r/min | 9890N.m | 421.5kg | 80700N | 1.30 |
| KA127R77DRN63M4 | 14975 | 0.12KW | 0.09r/min | 9260N.m | 421.5kg | 81000N | 1 .40 |
| KA127R77DRN63M4 | 12440 | 0.12KW | 0.11r/min | 7690N.m | 421.5kg | 81600N | 1.70 |
| KA127R77DRN63M4 | 10915 | 0.12KW | 0.13r/min | 6750N.m | 421.5kg | 81900N | 1.95 |
| KA127R77DRN63M4 | 9819 | 0.12KW | 0.14r/min | 6070N.m | 421.5kg | 82000N | 2.10 |
| KA127R77DRN63M4 | 8443 | 0.12KW | 0.16r/min | 5180N.m | 421.5kg | 82300N | 2.50 |
| KA127R77DRN63M4 | 7482 | 0.12KW | 0.18r/min | 4620N.m | 421.5kg | 82400N | 2.80 |
KA127R77DV71M4Speeding machine type:
K127r77dv71m4 bottom foot installation of tilt gear - umbrella gear deviation engine
Ka127br77dv71m4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv127 br77dv71m4 foot larvae axis with tilt gears - umbrella gear reduction power
Kh127 br77dv71m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf127r77dv71m4b5 installation of tilt gear - umbrella gear deceleration power
Kaf127r77dv71m4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf127r77dv71m4b5francocardial axis installed with tilt gears - an umbrella gear-reducing power plant
Khf127r77dv71m4b5farland axial axle locks fitted with tilt gears - an umbrella gear-reducing motor
Ka127r77dv71m4 hollow axle tilt gears - an umbrella gear reduction power
Kv127r77dv71m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh127r77dv71m4 empty axle locks slashing gears - an umbrella gear decelerator
Installation of tilt gears on the kt127r77dv71m4 hollow axle - an umbrella gear decelerator
Kaz127r77dv71m4b14 installation of tilt gear - umbrella gear-reducing power
Kvz127r77dv71m4b14 installation of tilt gear - umbrella gear deviation power
Dhz127r77dv71m4b14farland axle lockboard installation of tilt gears - umbrella gear deviation engine

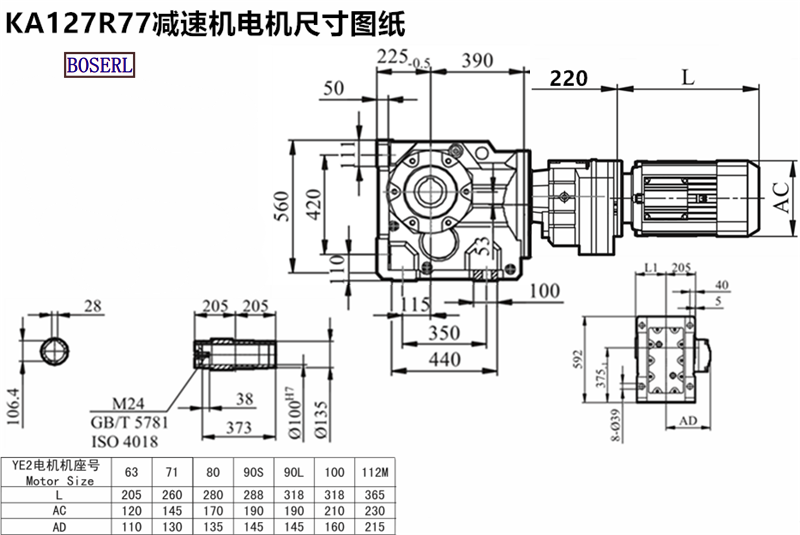

KA127R77DV71M4Induction Motor 3Ph motors installed size drawings
Ka127r77dv71m4 deviation electric power plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
