KA127RF77-Y0.18KWDetailed Information
Keyword: how 3kw power is equipped with a perforated axle-discharger _ka127rf77-y0. 18kw_ka127rf77-y112m4
KA127RF77-Y0.18KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127RF77-Y0.18KW | 14975 | 0.18KW | 0.09r/min | 15700N.m | 422kg | 74400N | 0.80 |
| KA127RF77-Y0.18KW | 12440 | 0.18KW | 0.11r/min | 13100N.m | 422kg | 79100N | 1 .00 |
| KA127RF77-Y0.18KW | 10915 | 0.18KW | 0.12r/min | 11500N.m | 422kg | 80000N | 1.15 |
| KA127RF77-Y0.18KW | 9819 | 0.18KW | 0.13r/min | 10300N.m | 422kg | 80500N | 1.25 |
| KA127RF77-Y0.18KW | 8443 | 0.18KW | 0.16r/min | 8870N.m | 422kg | 81100N | 1.45 |
| KA127RF77-Y0.18KW | 7482 | 0.18KW | 0.18r/min | 7880N.m | 422kg | 81500N | 1.65 |
| KA127RF77-Y0.18KW | 6565 | 0.18KW | 0.20r/min | 6910N.m | 422kg | 81800N | 1.90 |
| KA127RF77-Y0.18KW | 5804 | 0.18KW | 0.23r/min | 5880N.m | 422kg | 82100N | 2.20 |
| KA127RF77-Y0.18KW | 5027 | 0.18KW | 0.26r/min | 5210N.m | 422kg | 82300N | 2.50 |
| KA127RF77-Y0.18KW | 4423 | 0.18KW | 0.30r/min | 4480N.m | 422kg | 82400N | 2.90 |
| KA127RF77-Y0.18KW | 3889 | 0.18KW | 0.34r/min | 3900N.m | 422kg | 82500N | 3.30 |
| KA127RF77-Y0.18KW | 3311 | 0.18KW | 0.40r/min | 3240N.m | 422kg | 82600N | 4.00 |
KA127RF77-Y112M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127RF77-Y112M4 | 610 | 4KW | 2.40r/min | 14700N.m | 462kg | 76500N | 0.90 |
| KA127RF77-Y112M4 | 549 | 4KW | 2.70r/min | 13200N.m | 462kg | 79000N | 1.00 |
| KA127RF77-Y112M4 | 477 | 4KW | 3.10r/min | 11500N.m | 462kg | 80000N | 1.15 |
| KA127RF77-Y112M4 | 418 | 4KW | 3.50r/min | 10100N.m | 462kg | 80600N | 1.30 |
KA127RF77-Y0.18KWSpeeding machine type:
K127rf77-y0. 18kw bottom foot installation of tilt gear - umbrella gear deviation engine
Ka127brf77-y0. 18kw bottom foot hollow axis fitted with tilt gears - umbrella gear reduction power
Installation of tilt gears on an empty core axis of kv127brf77-y0. 18kw -- umbrella gear reduction power
Kh127brf77-y0. 18kw bottom foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf127rf77-y0. 18kwb5 installation of tilt gear - umbrella gear reduction power
Kaf127rf77-y0. 18kwb5 installation of tilt gears - umbrella gear reduction power
Frf127rf77-y0. 18kwb5 installation of tilt gear - umbrella gear-reducing power
Khf127rf77-y0. 18kwb5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka127rf77-y0. 18kw hollow axial tilt gears - umbrella gear reduction power
Kv127rf77-y0. 18kw spaced axle installation of tilt gears - umbrella gear decelerators
Kh127rf77-y0. 18kw hollow axle lock slashing gears - umbrella gear reduction power
Installation of tilt gears on the kt127rf77-y0. 18kw hollow axle - umbrella gear reduction power
Kaz127rf77-y0. 18kwb14 aerocardial axle is fitted with tilt gears - an umbrella gear reduction power
Installation of tilt gears on the frf z127rf77-y0. 18 kwb14 sky axes - umbrella gear deviation engine
Dhz127rf77-y0. 18kwb14 french air heart lockboards fitted with tilt gears - umbrella gear deviation engine

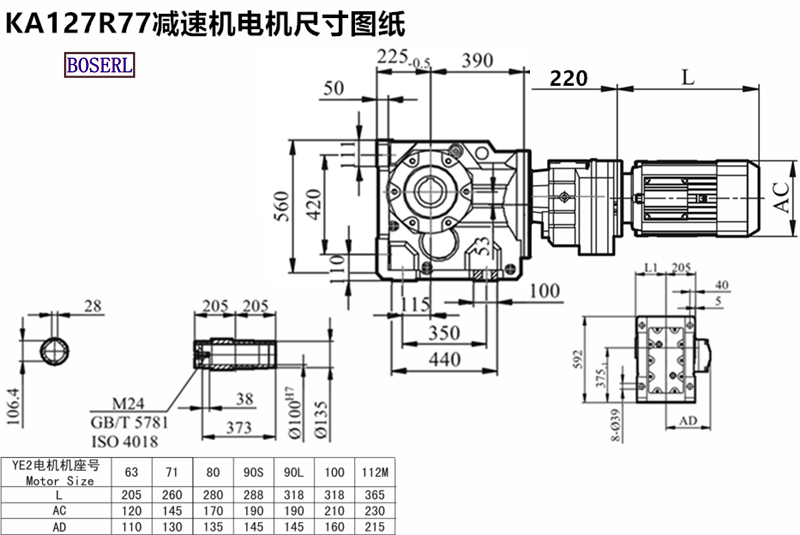

KA127RF77-Y0.18KWInduction Motor 3Ph motors installed size drawings
Ka127rf77-y0. 18kw power-reducing plantThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How 3kw power is fitted with a right-angle mid-angle speed reduction engine ka127rf77-y0. 18kw a127rf77-y112m4
