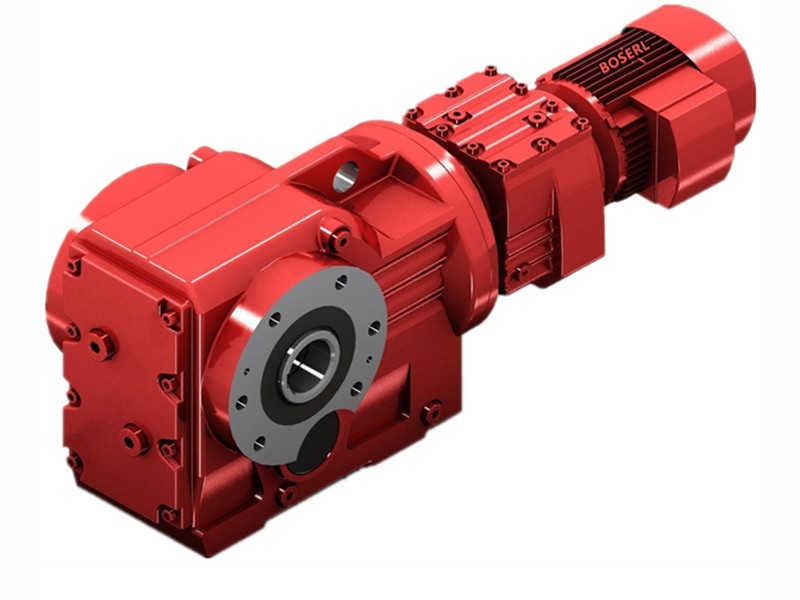

KA127R87DM132ML4Detailed Information
Keywords: 1. 1 kw power sets with a straight-angle hollow axle brakes_ka127r87dm132ml4_ka127r87drrs160mc4
KA127R87DM132ML4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R87DM132ML4 | 330 | 7.5KW | 4.40r/min | 14800N.m | 516kg | 76200N | 0.85 |
| KA127R87DM132ML4 | 287 | 7.5KW | 5.10r/min | 12800N.m | 516kg | 79300N | 1.00 |
| KA127R87DM132ML4 | 253 | 7.5KW | 5.80r/min | 11300N.m | 516kg | 80000N | 1.15 |
| KA127R87DM132ML4 | 213 | 7.5KW | 6.90r/min | 9550N.m | 516kg | 80900N | 1.35 |
| KA127R87DM132ML4 | 200 | 7.5KW | 7.30r/min | 9100N.m | 516kg | 81100N | 1.30 |
| KA127R87DM132ML4 | 166 | 7.5KW | 8.80r/min | 7530N.m | 516kg | 81600N | 1.60 |
| KA127R87DM132ML4 | 147 | 7.5KW | 10.0r/min | 6640N.m | 516kg | 81900N | 1.80 |
Ka127r87drrs160mc4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R87DRS160MC4 | 213 | 11KW | 6.90r/min | 14000N.m | 558kg | 77900N | 0.95 |
| KA127R87DRS160MC4 | 200 | 11KW | 7.40r/min | 13300N.m | 558kg | 79000N | 0.90 |
| KA127R87DRS160MC4 | 166 | 11KW | 8.90r/min | 11000N.m | 558kg | 80200N | 1.10 |
| KA127R87DRS160MC4 | 147 | 11KW | 10.0r/min | 9760N.m | 558kg | 80800N | 1.25 |
KA127R87DM132ML4Speeding machine type:
K127r87dm132ml4 bottom foot is fitted with tilt gear - umbrella gear reduction power
Ka127br87dm132ml4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv127 br87dm132ml4 bottom feet axis installation of tilt gear - umbrella gear deviation engine
Kh127 br87dm132ml4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf127r87dm132ml4b5 is equipped with tilt gear - umbrella gear-reducing power
Kaf127 r87dm132 ml4b5 installation of tilt gears - umbrella gear reduction power
Frf 127r87dm132ml4b5 installation of tilt gear - umbrella gear-reducing power
Khf127r87dm132ml4b5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka127r87dm132ml4 hollow axle tilt gears - umbrella gear reduction power
The kv127r87dm132ml4 space cores are equipped with tilt gears - an umbrella gear-reducing motor
Kh127r87dm132ml4 empty axle locks the slashing gears - an umbrella gear decelerator
The kt127r87dm132ml4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz127r87dm132ml4b14 installation of tilt gears - umbrella gear-reducing power
Kvz127r87dm132ml4b14 installation of tilt gear - umbrella gear-reducing power
Khz127r87dm132ml4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power
KA127R87DM132ML4Induction Motor 3Ph motors installed size drawings
Ka127r87dm132ml4 power-reducing plantThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
