KA127R87DT112M4Detailed Information
Keywords: 1. 5 kw power with a perforation of a diameter angle ka127r87dt112m4_ka127r87dr160m4
KA127R87DT112M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R87DT112M4 | 536 | 4KW | 2.70r/min | 12800N.m | 489kg | 79300N | 1.00 |
| KA127R87DT112M4 | 473 | 4KW | 3.10r/min | 11200N.m | 489kg | 80100N | 1.15 |
| KA127R87DT112M4 | 418 | 4KW | 3.50r/min | 10100N.m | 489kg | 80600N | 1.30 |
| KA127R87DT112M4 | 367 | 4KW | 4.00r/min | 8830N.m | 489kg | 81200N | 1.45 |
| KA127R87DT112M4 | 330 | 4KW | 4.40r/min | 7930N.m | 489kg | 81500N | 1.65 |
| KA127R87DT112M4 | 287 | 4KW | 5.10r/min | 6820N.m | 489kg | 81800N | 1.90 |
| KA127R87DT112M4 | 253 | 4KW | 5.80r/min | 6030N.m | 489kg | 82100N | 2.20 |
Ka127r87dre160m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R87DRE160M4 | 213 | 11KW | 6.90r/min | 14000N.m | 558kg | 77900N | 0.95 |
| KA127R87DRE160M4 | 200 | 11KW | 7.40r/min | 13300N.m | 558kg | 79000N | 0.90 |
| KA127R87DRE160M4 | 166 | 11KW | 8.90r/min | 11000N.m | 558kg | 80200N | 1.10 |
| KA127R87DRE160M4 | 147 | 11KW | 10.0r/min | 9760N.m | 558kg | 80800N | 1.25 |
KA127R87DT112M4Speeding machine type:
K127r87dt112m4 bottom foot is fitted with tilt gears - umbrella gear-reducing power
Ka127br87dt112m4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv127 br87dt112m4 foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh127 br87dt112m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf127r87dt112m4b5 installation of tilt gears - umbrella gear reduction power
Kaf127r87dt112m4b5farland axis installation of tilt gear - umbrella gear deviation power
Kvf127r87dt112m4b5franco-axis installation of tilt gear - umbrella gear deviation engine
Khf127r87dt112m4b5farland axial axle locks fitted with tilt gears - umbrella gear reduction power
Ka127r87dt112m4 hollow axle tilt gears - an umbrella gear reduction power
The kv127r87dt112m4 space cores are equipped with tilt gears - an umbrella gear decelerator
Kh127r87dt112m4 sky axe locked tilt gears - umbrella gear deviation engine
Installation of tilt gears on kt127r87dt112m4 hollow axle - umbrella gear reduction power
Kaz127r87dt112m4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r87dt112m4b14 installation of tilt gear - umbrella gear deviation power
Khz127r87dt112m4b14 franium axial axle locks fitted with tilt gears - umbrella gear reduction power

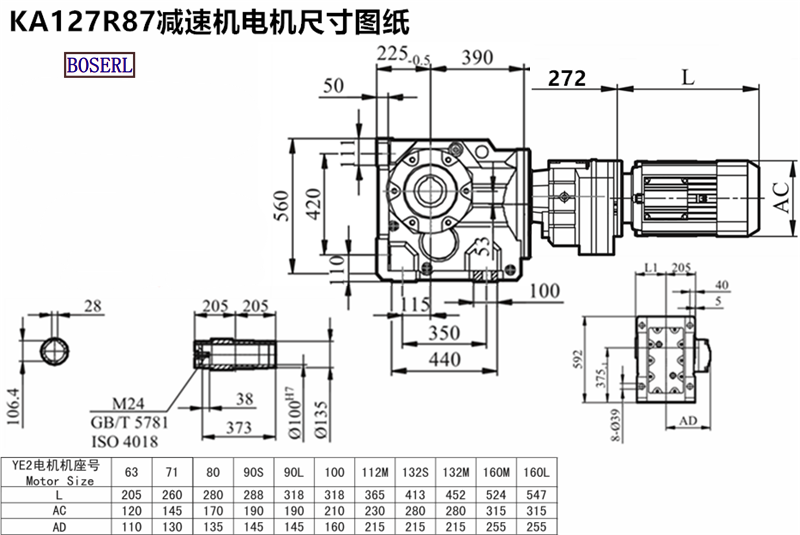

KA127R87DT112M4Induction Motor 3Ph motors installed size drawings
Ka127r87dt112m4 deviation electric power plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
