KA127RF77-Y0.55KWDetailed Information
Keywords: how 3kw power is fitted with a straight-angle mid-pore decelerator_ka127rf77-y0. 55kw_ka127rf77-y63m4
KA127RF77-Y0.55KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127RF77-Y0.55KW | 4423 | 0.55KW | 0.31r/min | 14600N.m | 431kg | 76600N | 0.90 |
| KA127RF77-Y0.55KW | 3889 | 0.55KW | 0.35r/min | 12800N.m | 431kg | 79200N | 1.00 |
| KA127RF77-Y0.55KW | 3311 | 0.55KW | 0.42r/min | 10800N.m | 431kg | 80300N | 1.20 |
| KA127RF77-Y0.55KW | 3009 | 0.55KW | 0.46r/min | 9840N.m | 431kg | 80700N | 1.30 |
| KA127RF77-Y0.55KW | 2607 | 0.55KW | 0.53r/min | 8450N.m | 431kg | 81300N | 1.55 |
| KA127RF77-Y0.55KW | 1926 | 0.55KW | 0.72r/min | 6520N.m | 431kg | 81900N | 2.00 |
| KA127RF77-Y0.55KW | 1757 | 0.55KW | 0.79r/min | 5940N.m | 431kg | 82100N | 2.20 |
| KA127RF77-Y0.55KW | 1541 | 0.55KW | 0.90r/min | 5180N.m | 431kg | 82300N | 2.50 |
| KA127RF77-Y0.55KW | 1342 | 0.55KW | 1.00r/min | 4540N.m | 431kg | 82400N | 2.90 |
| KA127RF77-Y0.55KW | 1177 | 0.55KW | 1.20r/min | 3950N.m | 431kg | 82500N | 3.30 |
| KA127RF77-Y0.55KW | 1025 | 0.55KW | 1.40r/min | 3460N.m | 431kg | 82600N | 3.80 |
KA127RF77-Y63M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127RF77-Y63M4 | 17550 | 0.12KW | 0.08r/min | 10800N.m | 421.5kg | 80300N | 1.20 |
| KA127RF77-Y63M4 | 16006 | 0.12KW | 0.09r/min | 9890N.m | 421.5kg | 80700N | 1.30 |
| KA127RF77-Y63M4 | 14975 | 0.12KW | 0.09r/min | 9260N.m | 421.5kg | 81000N | 1 .40 |
| KA127RF77-Y63M4 | 12440 | 0.12KW | 0.11r/min | 7690N.m | 421.5kg | 81600N | 1.70 |
| KA127RF77-Y63M4 | 10915 | 0.12KW | 0.13r/min | 6750N.m | 421.5kg | 81900N | 1.95 |
| KA127RF77-Y63M4 | 9819 | 0.12KW | 0.14r/min | 6070N.m | 421.5kg | 82000N | 2.10 |
| KA127RF77-Y63M4 | 8443 | 0.12KW | 0.16r/min | 5180N.m | 421.5kg | 82300N | 2.50 |
| KA127RF77-Y63M4 | 7482 | 0.12KW | 0.18r/min | 4620N.m | 421.5kg | 82400N | 2.80 |
KA127RF77-Y0.55KWSpeeding machine type:
K127rf77-y0. 55 kw base foot installation of tilt gears - umbrella gear reduction power
Ka127brf77-y0. 55kw bottom foot hollow axis fitted with tilt gears - umbrella gear reduction power
Kv127brf77-y0. 55kw bottom foot flow axes installation of tilt gears - umbrella gear deviation engine
Kh127brf77-y0. 55kw foot hollow axle locks fitted with tilt gears -Right-angle shaft reducer motor
Frf127rf77-y0. 55 kwb5 installation of tilt gear - umbrella gear reduction power
Kaf127rf77-y0. 55 kwb5 installation of tilt gears - umbrella gear reduction power
Frf127rf77-y0. 55 kwb5 installation of tilt gear - umbrella gear deviation engine
Khf127rf77-y0. 55 kwb5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka127rf77-y0. 55kw hollow axle tilt gears - an umbrella gear reduction power
Kv127rf77-y0. 55kw spaced axles with tilt gears - umbrella gear-reducing power
Kh127rf77-y0. 55kw hollow axle lock slasher gears - umbrella gear reduction power
Installation of tilt gears on the kt127rf77-y0. 55kw hollow axle - umbrella gear reduction power
Kaz127rf77-y0. 55 kwb14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears on the frfz zvz127rf77-y0. 55 kwb14 sky axes - umbrella gear deviation engine
Dhz127rf77-y0. 55 kwb14 platinum carvings on the flannel axle locks - umbrella gear-reducing power

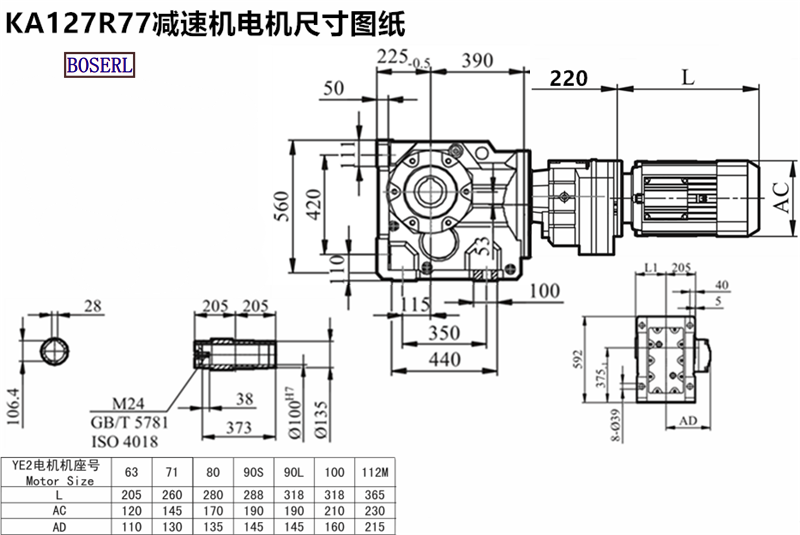

KA127RF77-Y0.55KWInduction Motor 3Ph motors installed size drawings
Ka127rf77-y0. 55kw power-reducing plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How 3kw power is fitted with a straight-angle mid-pore brake ka127rf77-y0. 55 kw a127rf77-y63m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA127RF77Y0.55KW减速机样本 |
|
| KA127RF77Y0.55KW减速机三维图纸 |
|
