KA127RF87-Y5.5KWDetailed Information
Keywords: 1. 5 kw electrics with a straight-angle hollowbox _ka127rf87-y5. 5kw_ka127rf87-y160m4
KA127RF87-Y5.5KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127RF87-Y5.5KW | 418 | 5.5KW | 3.50r/min | 14000N.m | 503kg | 77900N | 0.95 |
| KA127RF87-Y5.5KW | 367 | 5.5KW | 4.00r/min | 12200N.m | 503kg | 79600N | 1.05 |
| KA127RF87-Y5.5KW | 330 | 5.5KW | 4.40r/min | 10900N.m | 503kg | 80200N | 1.20 |
| KA127RF87-Y5.5KW | 287 | 5.5KW | 5.10r/min | 9480N.m | 503kg | 80900N | 1.35 |
| KA127RF87-Y5.5KW | 253 | 5.5KW | 5.70r/min | 8380N.m | 503kg | 81300N | 1.55 |
| KA127RF87-Y5.5KW | 213 | 5.5KW | 6.80r/min | 7040N.m | 503kg | 81800N | 1.85 |
| KA127RF87-Y5.5KW | 200 | 5.5KW | 7.30r/min | 6710N.m | 503kg | 81900N | 1.80 |
| KA127RF87-Y5.5KW | 166 | 5.5KW | 8.80r/min | 5550N.m | 503kg | 82200N | 2.20 |
| KA127RF87-Y5.5KW | 147 | 5.5KW | 9.90r/min | 4900N.m | 503kg | 82300N | 2.40 |
KA127RF87-Y160M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127RF87-Y160M4 | 213 | 11KW | 6.90r/min | 14000N.m | 558kg | 77900N | 0.95 |
| KA127RF87-Y160M4 | 200 | 11KW | 7.40r/min | 13300N.m | 558kg | 79000N | 0.90 |
| KA127RF87-Y160M4 | 166 | 11KW | 8.90r/min | 11000N.m | 558kg | 80200N | 1.10 |
| KA127RF87-Y160M4 | 147 | 11KW | 10.0r/min | 9760N.m | 558kg | 80800N | 1.25 |
KA127RF87-Y5.5KWSpeeding machine type:
K127rf87-y5. 5kw bottom foot installation of tilt gear - umbrella gear deviation engine
Ka127brf87-y5. 5kw bottom foot hollow axis fitted with tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors on an empty core axis of kv127brf87-y5. 5kw
Kh127brf87-y5. 5kw bottom foot hollow axle locks fitted with tilt gears -Right-angle shaft reducer motor
Frf127rf87-y5. 5 kwb5 installation of tilt gear - umbrella gear-reducing power
Kaf127rf87-y5. 5kwb5 installation of tilt gears - umbrella gear reduction power
Frf127rf87-y5. 5kwb5 installation of tilt gear - umbrella gear reduction power
Khf127rf87-y5. 5kwb5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka127rf87-y5. 5kw hollow axle tilt gears - umbrella gear reduction power
Kv127rf87-y5. 5kw spaced axles with tilt gears - umbrella gear reduction power
Kh127rf87-y5. 5kw hollow axle lock slasher gears - umbrella gear reduction power
Kt127rf87-y5. 5kw hollow axle is equipped with tilt gears - an umbrella gear reduction power
Kaz127rf87-y5. 5-kwb14 installation of tilt gear - umbrella gear-reducing power
Installation of tilt gears on the flavour core axis of frfz127rf87-y5. 5kwb14 - umbrella gear deviation engine
Dhz127rf87-y5. 5kwb14 franium axle locks fitted with tilt gears - umbrella gear-reducing power

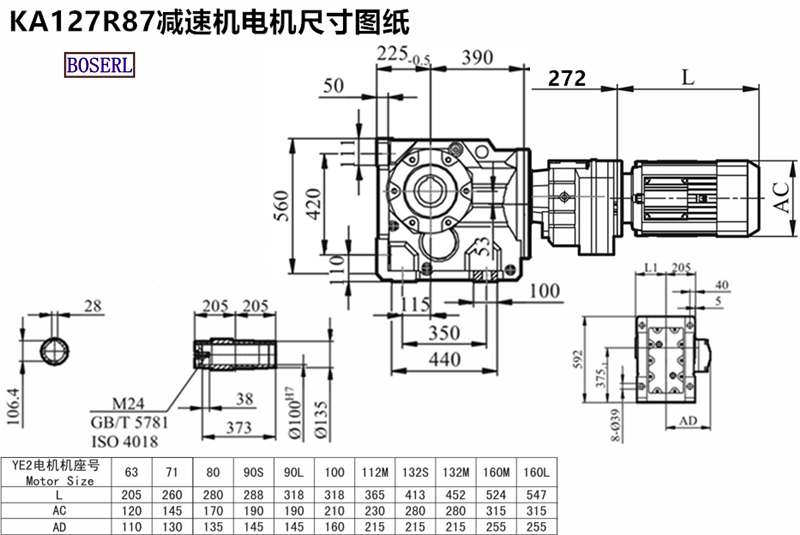

KA127RF87-Y5.5KWInduction Motor 3Ph motors installed size drawings
Ka127rf87-y5. 5kw power-reducing plantThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
