KA157R107DM160MC4Detailed Information
Keyword: 45kw power with a diameter axle brake_ka157r107dm160mc4_ka157r107drrs180l4
KA157R107DM160MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R107DM160MC4 | 230 | 15KW | 6.40r/min | 20500N.m | 898kg | 110800N | 0.90 |
| KA157R107DM160MC4 | 213 | 15KW | 6.90r/min | 19300N.m | 898kg | 111500N | 0.95 |
| KA157R107DM160MC4 | 187 | 15KW | 7.80r/min | 16600N.m | 898kg | 112800N | 1.10 |
| KA157R107DM160MC4 | 157 | 15KW | 9.30r/min | 14100N.m | 898kg | 113900N | 1.25 |
| KA157R107DM160MC4 | 122 | 15KW | 12.0r/min | 11000N.m | 898kg | 115000N | 1.60 |
| KA157R107DM160MC4 | 107 | 15KW | 14.0r/min | 9670N.m | 898kg | 115400N | 1.85 |
KA157R107DRS180L4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R107DRS180L4 | 157 | 22KW | 9.40r/min | 20700N.m | 948kg | 109400N | 0.85 |
| KA157R107DRS180L4 | 122 | 22KW | 12.0r/min | 16200N.m | 948kg | 108100N | 1.10 |
| KA157R107DRS180L4 | 107 | 22KW | 14.0r/min | 14100N.m | 948kg | 106900N | 1.25 |
KA157R107DM160MC4Speeding machine type:
K157r107dm160mc4 bottom foot fitted with tilt gears - umbrella gear reduction power
Ka157br107dm160mc4 foot hollow axis with tilt gears - umbrella gear-reducing power
Kv157 br107dm160mc4 bottom feet flow axis installation of tilt gear - umbrella gear deviation engine
Kh157 br107dm160mc4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf157r107dm160mc4b5 installation of tilt gears - umbrella gear reduction power
Kaf157r107dm160mc4b5 installation of tilt gears - umbrella gear reduction power
Frf157r107dm160mc4b5 installation of tilt gear - umbrella gear reduction power
Khf157r107dm160mc4b5 french axial axle locks fitted with tilt gears - an umbrella gear-reducing motor
Ka157r107dm160mc4 tilt gears - umbrella gear reduction power
The kv157r107dm160mc4 space cores are equipped with tilt gears - an umbrella gear decelerator
Kh157r107dm160mc4 sky axes locked tilt tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt157r107dm160mc4 hollow axle - umbrella gear reduction power
Kaz157r107dm160mc4b14 installation of tilt gears - umbrella gear-reducing power
Kvz157r107dm160mc4b14 francoons installed slash gears - umbrella gear reduction power
Khz157r107dm160mc4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

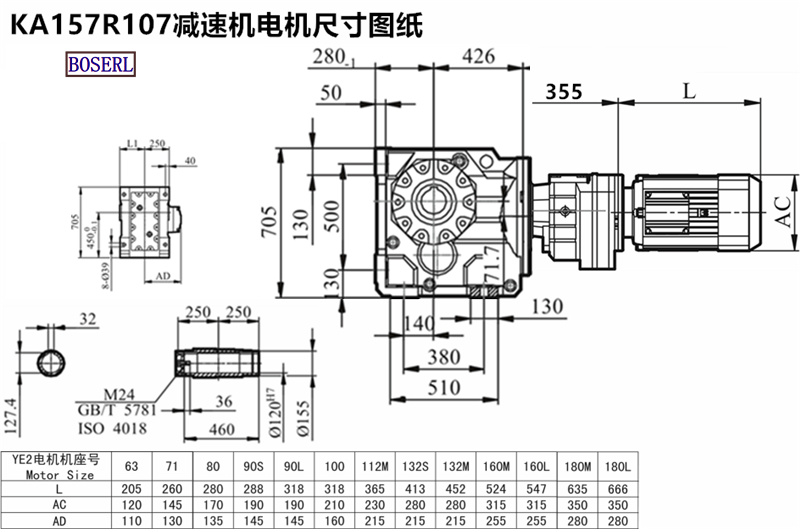

KA157R107DM160MC4Induction Motor 3Ph motors installed size drawings
KA157R107DM160MC4We need to make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
