KA157R97DM160L4Detailed Information
Keywords: 7. 5 kw power with a straight-angle hollow axle reduction box _ka157r97dm160l4_ka157r97drrs80mk4
KA157R97DM160L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DM160L4 | 333 | 11KW | 4.40r/min | 21800N.m | 826kg | 110000N | 0.80 |
| KA157R97DM160L4 | 291 | 11KW | 5.10r/min | 19000N.m | 826kg | 111600N | 0.95 |
Ka157r97drs80mk4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DRS80MK4 | 6881 | 0.55KW | 0.20r/min | 21900N.m | 726kg | 110000N | 0.80 |
| KA157R97DRS80MK4 | 5931 | 0.55KW | 0.23r/min | 18800N.m | 726kg | 111700N | 0.95 |
| KA157R97DRS80MK4 | 3979 | 0.55KW | 0.35r/min | 12600N.m | 726kg | 114500N | 1.40 |
| KA157R97DRS80MK4 | 3051 | 0.55KW | 0.45r/min | 9710N.m | 726kg | 115400N | 1.85 |
KA157R97DM160L4Speeding machine type:
K157r97dm160l4 bottom foot fitted with tilt gears - umbrella gear-reducing power
Ka157br97dm160l4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv157 br97dm160l4 foot cores are equipped with tilt gears - umbrella gear reduction power
Kh157 br97dm160l4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf 157r97dm160l4b5 installation of tilt gears - umbrella gear reduction power
Kaf157r97dm160l4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf157r97dm160l4b5-franco cardiac axe installation of tilt gears - umbrella gear deviation engine
Khf157r97dm160l4b5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r97dm160l4 hollow axle tilt gears - umbrella gear reduction power
The kv157r97dm160l4 cardiac axle is equipped with tilt gears - an umbrella gear decelerator
Kh157r97dm160l4 sky axes locked tilt gear - umbrella gear deviation engine
Installation of tilt gears on the kt157r97dm160l4 hollow axle - an umbrella gear decelerator
Kaz157r97dm160l4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r97dm160l4b14 flannel axles installation of tilt gears - umbrella gear reduction power
Khz157r97dm160l4b14 franium axle locks fitted with tilt gears - umbrella gear reduction power

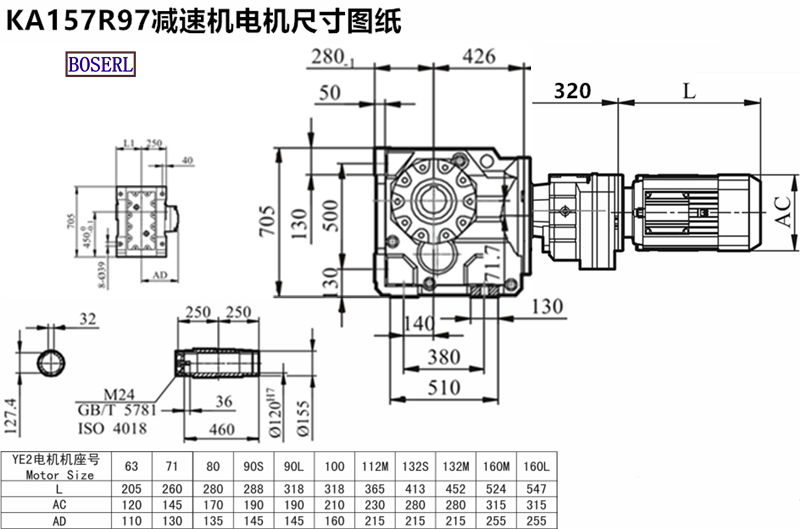

KA157R97DM160L4Induction Motor 3Ph motors installed size drawings
Ka157r97dm160l4 power plant, three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How ka157r97drs80mk4 7. 5kw power sets up with a straight-angled hollow axle reduction box ka157r97dm160l4 ka157r97drs80mk4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA157R97DM160L4减速机样本 |
|
| KA157R97DM160L4减速机三维图纸 |
|
