KA157R97DR160M4Detailed Information
Keyword: how does 4kw power fit a straight-angle hollow axle deceleration? ka157r97dr160m4_ka157r97dve80m4
KA157R97DR160M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DR160M4 | 333 | 11KW | 4.40r/min | 21800N.m | 826kg | 110000N | 0.80 |
| KA157R97DR160M4 | 291 | 11KW | 5.10r/min | 19000N.m | 826kg | 111600N | 0.95 |
KA157R97DVE80M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DVE80M4 | 3979 | 0.75KW | 0.36r/min | 16900N.m | 727kg | 112700N | 1.05 |
| KA157R97DVE80M4 | 3051 | 0.75KW | 0.47r/min | 13000N.m | 727kg | 114300N | 1.40 |
| KA157R97DVE80M4 | 1659 | 0.75KW | 0.87r/min | 7160N.m | 727kg | 116000N | 2.50 |
| KA157R97DVE80M4 | 1365 | 0.75KW | 1.00r/min | 5770N.m | 727kg | 116200N | 3.10 |
KA157R97DR160M4Speeding machine type:
K157r97dr160m4 bottom foot is fitted with tilt gear - umbrella gear reduction power
Ka157br97dr160m4 foot hollow axis with slash gears - umbrella gear reduction power
Kv157 br97dr160m4 foot larvae axis fitted with tilt gears - umbrella gear reduction power
Kh157 br97dr160m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf 157r97dr160m4b5 installation of tilt gear - umbrella gear reduction power
Kaf157r97dr160m4b5 french aerocardial axle is equipped with tilt gears - umbrella gear reduction power
Kvf157r97dr160m4b5 franco-axis installation of tilt gears - umbrella gear reduction power
Khf157r97dr160m4b5 french axial axle locks fitted with tilt gears - an umbrella gear-reducing motor
Ka157r97dr160m4 hollow axle tilt gears - an umbrella gear deceleration power
Kv157r97dr160m4 space cores fitted with tilt gears - umbrella gear-reducing power
Kh157r97dr160m4 empty axle locks slashing gears - umbrella gear deceleration power
The kt157r97dr160m4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz157r97dr160m4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r97dr160m4b14 flannel axles installed with tilt gears - umbrella gear-reducing power
Khz157r97dr160m4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

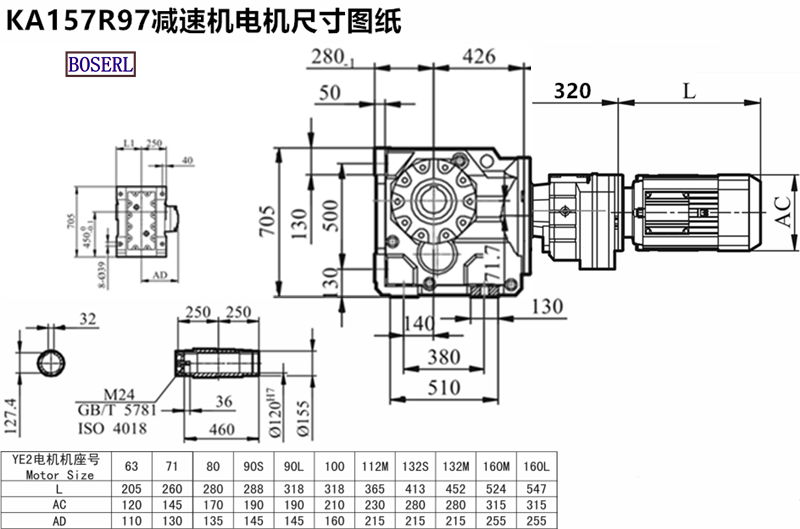

KA157R97DR160M4Induction Motor 3Ph motors installed size drawings
Ka157r97dr160m4 deviation power plantThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How does 4kw power fit the straight-angle hollow axle speed reduction engine ka157r97r160m4kka157r97dve80m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA157R97DR160M4减速机样本 |
|
| KA157R97DR160M4减速机三维图纸 |
|
