KA157R97DT112M4Detailed Information
Keyword: how does a 4kw power fit a straight-angle air-reducing machine? ka157r97dt112m4_ka157r97dre80m4
KA157R97DT112M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DT112M4 | 854 | 4KW | 1.70r/min | 20300N.m | 757kg | 110900N | 0.90 |
| KA157R97DT112M4 | 756 | 4KW | 1.90r/min | 17800N.m | 757kg | 112300N | 1.00 |
| KA157R97DT112M4 | 567 | 4KW | 2.60r/min | 13400N.m | 757kg | 114200N | 1.35 |
| KA157R97DT112M4 | 504 | 4KW | 2.90r/min | 11900N.m | 757kg | 114700N | 1.50 |
| KA157R97DT112M4 | 434 | 4KW | 3.40r/min | 10200N.m | 757kg | 115200N | 1.75 |
Ka157r97dre80m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DRE80M4 | 3979 | 0.75KW | 0.36r/min | 16900N.m | 727kg | 112700N | 1.05 |
| KA157R97DRE80M4 | 3051 | 0.75KW | 0.47r/min | 13000N.m | 727kg | 114300N | 1.40 |
| KA157R97DRE80M4 | 1659 | 0.75KW | 0.87r/min | 7160N.m | 727kg | 116000N | 2.50 |
| KA157R97DRE80M4 | 1365 | 0.75KW | 1.00r/min | 5770N.m | 727kg | 116200N | 3.10 |
KA157R97DT112M4Speeding machine type:
K157r97dt112m4 foot is equipped with tilt gears - umbrella gear reduction power
Ka157br97dt112m4 foot hollow axis fitted with tilt gears - umbrella gear reduction power
The kv157 br97dt112m4 foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh157 br97dt112m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf157r97dt112m4b5 installation of tilt gears - umbrella gear-reducing power
Kaf157r97dt112m4b5farland aerocentric axis is equipped with tilt gears - umbrella gear reduction power
Kvf157r97dt112m4b5franco-axis installation of tilt gear - umbrella gear-reducing power
Khf157r97dt112 m4b5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r97dt112m4 hollow axle tilt gears - an umbrella gear decelerator power plant
Kv157r97dt112m4 space cores installed with tilt gears - umbrella gear decelerators
Kh157r97dt112m4 empty axle locks slashing gears - umbrella gear reduction power
Installation of tilt gears on the kt157r97dt112m4 hollow axle - umbrella gear reduction power
Kaz157r97dt112m4b14 aerocardial axle is equipped with tilt gear - an umbrella gear reduction power
Kvz157r97dt112m4b14 installation of tilt gears - umbrella gear reduction power
Khz157r97dt112m4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

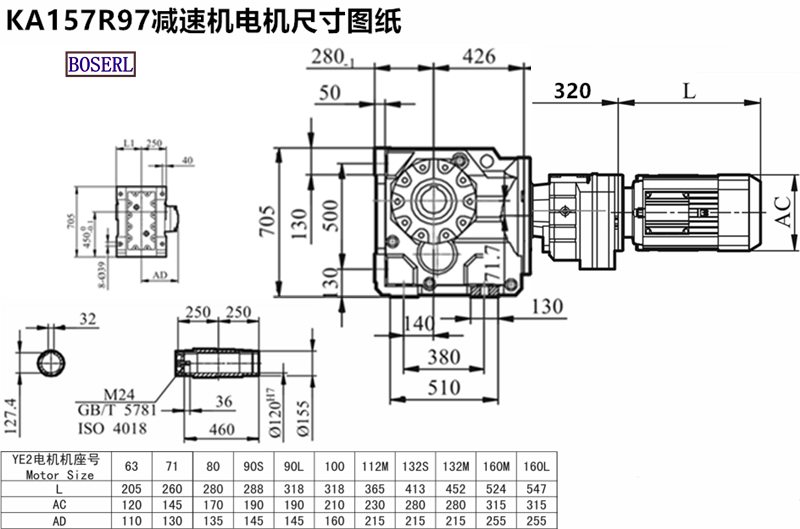

KA157R97DT112M4Induction Motor 3Ph motors installed size drawings
Ka157r97dt112m4 deviation electric power plant, three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How 4kw power is equipped with a direct angle ka157r97dt112m4kka157r97dre80m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA157R97DT112M4减速机样本 |
|
| KA157R97DT112M4减速机三维图纸 |
|
