KA157R97DT160L4Detailed Information
Keyword: 110 kw power and how big a screwdriver gear is? _ka157r97dt160l4_ka157r97dre132s4
KA157R97DT160L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DT160L4 | 333 | 11KW | 4.40r/min | 21800N.m | 826kg | 110000N | 0.80 |
| KA157R97DT160L4 | 291 | 11KW | 5.10r/min | 19000N.m | 826kg | 111600N | 0.95 |
KA157R97DRE132S4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DRE132S4 | 661 | 5.5KW | 2.20r/min | 21500N.m | 771kg | 110200N | 0.85 |
| KA157R97DRE132S4 | 567 | 5.5KW | 2.60r/min | 18700N.m | 771kg | 111800N | 0.95 |
| KA157R97DRE132S4 | 504 | 5.5KW | 2.90r/min | 16600N.m | 771kg | 112800N | 1.10 |
| KA157R97DRE132S4 | 434 | 5.5KW | 3.40r/min | 14200N.m | 771kg | 113900N | 1.25 |
| KA157R97DRE132S4 | 379 | 5.5KW | 3.80r/min | 12300N.m | 771kg | 114600N | 1.45 |
| KA157R97DRE132S4 | 333 | 5.5KW | 4.40r/min | 10900N.m | 771kg | 115000N | 1.65 |
KA157R97DT160L4Speeding machine type:
K157r97dt160l4 bottom foot with tilt gear - umbrella gear deviation engine
Ka157br97dt160l4 foot hollow axis with slash gears - umbrella gear-reducing power
Kv157 br97dt160l4 foot larvae axis installed with tilt gears - umbrella gear reduction power
Kh157 br97dt160l4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf 157r97dt160l4b5 installation of tilt gears - umbrella gear reduction power
Kaf157r97dt160l4b5 installation of tilt gears - umbrella gear reduction power
Kvf157r97dt160l4b5franco-axis installation of tilt gears - umbrella gear-reducing power
Khf157r97dt160l4b5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r97dt160l4 hollow axle tilt gears - an umbrella gear decelerator power
Kv157r97dt160l4 spaced axles with tilt gears - umbrella gear reduction power
Kh157r97dt160l4 sky axe locked tilt gears - umbrella gear deviation engine
Installation of tilt gears on kt157r97dt160l4 hollow axle - umbrella gear reduction power
Kaz157r97dt160l4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r97dt160l4b14 installation of slashed gears - umbrella gear reduction power
Khz157r97dt160l4b14 franium axial axle locks fitted with tilt gears - umbrella gear reduction power

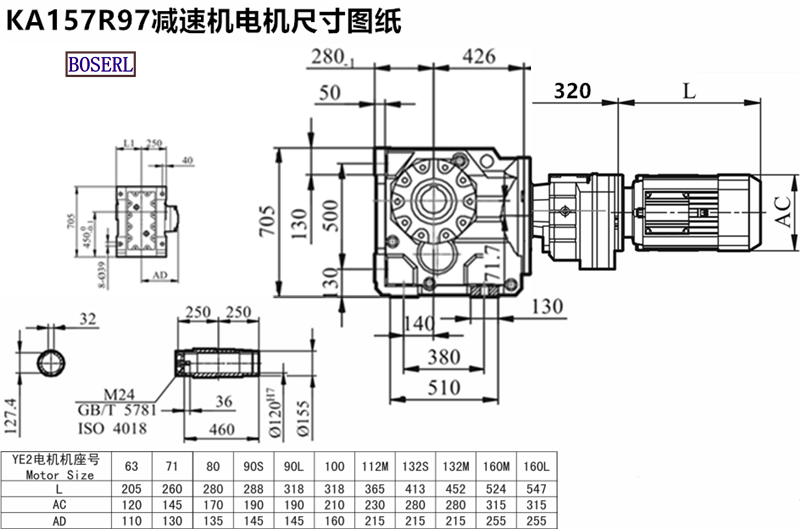

KA157R97DT160L4Induction Motor 3Ph motors installed size drawings
Ka157r97dt160l4 power plant, three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 110kw electric power 157r97dt160l4ka157r97dre132s4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA157R97DT160L4减速机样本 |
|
| KA157R97DT160L4减速机三维图纸 |
|
