KA157R97DT80K4Detailed Information
Keyword: 30kw electric power to what size of a screwdriver gear decelerator_ ka157r97dt80k4_ka157r97dr132ml4
KA157R97DT80K4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DT80K4 | 6881 | 0.55KW | 0.20r/min | 21900N.m | 726kg | 110000N | 0.80 |
| KA157R97DT80K4 | 5931 | 0.55KW | 0.23r/min | 18800N.m | 726kg | 111700N | 0.95 |
| KA157R97DT80K4 | 3979 | 0.55KW | 0.35r/min | 12600N.m | 726kg | 114500N | 1.40 |
| KA157R97DT80K4 | 3051 | 0.55KW | 0.45r/min | 9710N.m | 726kg | 115400N | 1.85 |
Ka157r97dre132ml4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DRE132ML4 | 434 | 7.5KW | 3.40r/min | 19300N.m | 784kg | 111500N | 0.95 |
| KA157R97DRE132ML4 | 379 | 7.5KW | 3.90r/min | 16800N.m | 784kg | 112700N | 1.05 |
| KA157R97DRE132ML4 | 333 | 7.5KW | 4.40r/min | 14800N.m | 784kg | 113600N | 1.20 |
| KA157R97DRE132ML4 | 291 | 7.5KW | 5.00r/min | 12900N.m | 784kg | 114400N | 1.40 |
KA157R97DT80K4Speeding machine type:
K157r97dt80k4 bottom foot is equipped with tilt gears - umbrella gear reduction power
Ka157br97dt80k bottom foot hollow axis installed with tilt gears - umbrella gear-reducing power
Kv157 br97dt80k4 foot larvae axis installed with tilt gear - umbrella gear reduction power
Kh157 br97dt80k bottom foot axle locks with tilt gears.Right-angle shaft reducer motor
Frf157r97dt80k4b5 installation of tilt gears - umbrella gear reduction power
Kaf157r97dt80k4b5farland aerocentric axis with tilt gears - an umbrella gear reduction power
Kvf157r97dt80k4b5franco-axis installation of tilt gears - umbrella gear-reducing power
Khf157r97dt80k4b5farland axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r97dt80k4 hollow axle tilt gears - umbrella gear reduction power
The kv157r97dt80k4 space cores are equipped with tilt gears - an umbrella gear decelerator
Kh157r97dt80k4 empty axle locks the slant gears - the umbrella gear reduction power
Installation of tilt gears on kt157r97dt80k4 sky axis - umbrella gear deviation engine
Kaz157r97dt80k4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r97dt80k4b14 installation of tilt gear - umbrella gear-reducing power
Khz157r97dt80k4b14 franium axle locks fitted with tilt gears - umbrella gear-reducing power

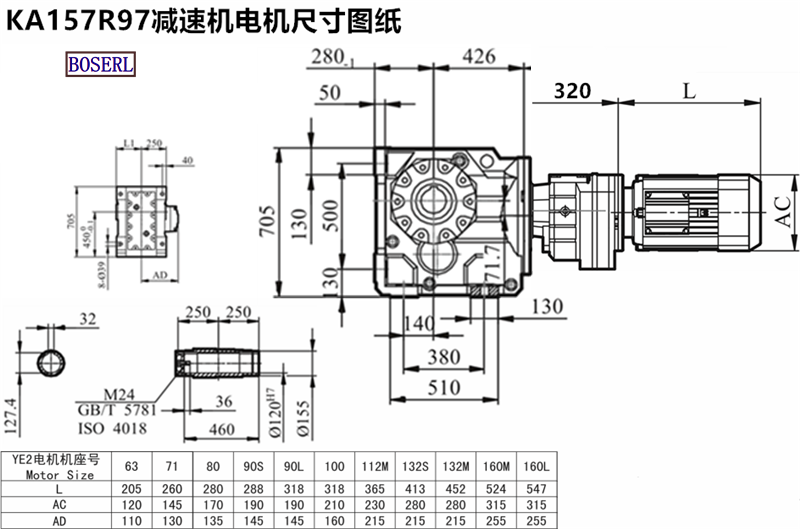

KA157R97DT80K4Induction Motor 3Ph motors installed size drawings
Ka157r97dt80k4 power deviation plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 30kw power power a157r97dt80k4ka157r97dre132ml4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA157R97DT80K4减速机样本 |
|
| KA157R97DT80K4减速机三维图纸 |
|
