KA157R97DT80M4Detailed Information
Keyword: how the 4kw power is equipped with a straight-angle hollow axle decelerator_ka157r97dt80m4_ka157r97dre112m4
KA157R97DT80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DT80M4 | 3979 | 0.75KW | 0.36r/min | 16900N.m | 727kg | 112700N | 1.05 |
| KA157R97DT80M4 | 3051 | 0.75KW | 0.47r/min | 13000N.m | 727kg | 114300N | 1.40 |
| KA157R97DT80M4 | 1659 | 0.75KW | 0.87r/min | 7160N.m | 727kg | 116000N | 2.50 |
| KA157R97DT80M4 | 1365 | 0.75KW | 1.00r/min | 5770N.m | 727kg | 116200N | 3.10 |
Ka157r97dre112m4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DRE112M4 | 854 | 4KW | 1.70r/min | 20300N.m | 757kg | 110900N | 0.90 |
| KA157R97DRE112M4 | 756 | 4KW | 1.90r/min | 17800N.m | 757kg | 112300N | 1.00 |
| KA157R97DRE112M4 | 567 | 4KW | 2.60r/min | 13400N.m | 757kg | 114200N | 1.35 |
| KA157R97DRE112M4 | 504 | 4KW | 2.90r/min | 11900N.m | 757kg | 114700N | 1.50 |
| KA157R97DRE112M4 | 434 | 4KW | 3.40r/min | 10200N.m | 757kg | 115200N | 1.75 |
KA157R97DT80M4Speeding machine type:
K157r97dt80m4 bottom foot is fitted with tilt gears - an umbrella gear reduction power
Ka157br97dt80m4 foot hollow axis with tilt gears - umbrella gear-reducing power
Kv157 br97dt80m4 foot larvae axis installed with tilt gears - umbrella gear reduction power
Kh157 br97dt80m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf157r97dt80m4b5 installation of tilt gears - umbrella gear reduction power
Kaf157r97dt80m4b5 installation of tilt gears - umbrella gear reduction power
Frf157r97dt80m4b5 installation of tilt gear - umbrella gear reduction power
Khf157r97dt80m4b5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r97dt80m4 hollow axle tilt gear - umbrella gear reduction power
Kv157r97dt80m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh157r97dt80m4 sky axes locked tilt gears - umbrella gear deviation engine
Kt157r97dt80m4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz157r97dt80m4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r97dt80m4b14 installation of tilt gear - umbrella gear deviation power
Khz157r97dt80m4b14 franium axle locks fitted with tilt gears - umbrella gear reduction power

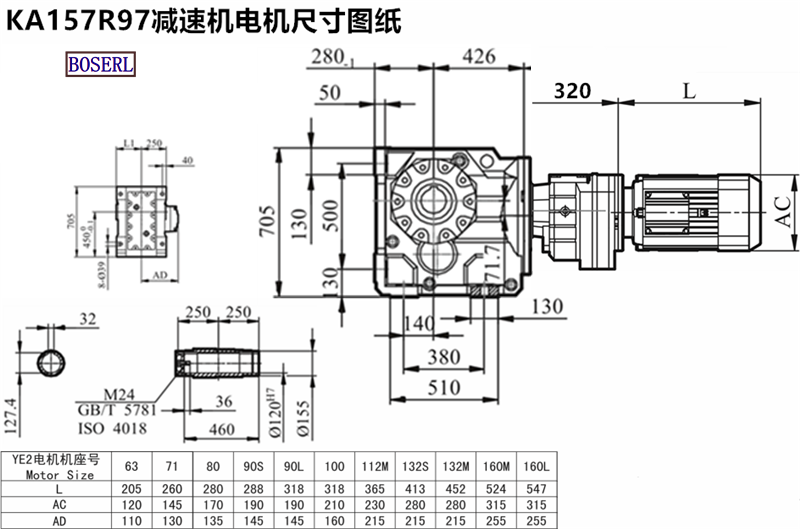

KA157R97DT80M4Induction Motor 3Ph motors installed size drawings
Ka157r97dt80m4 deviation power plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How does 4kw power fit a straight-angle hollow axle speed reduction engine ka157r97dt80m4 ka157r97dre112m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA157R97DT80M4减速机样本 |
|
| KA157R97DT80M4减速机三维图纸 |
|
