KA157R97DT80MK4Detailed Information
Keyword: 37kw electric power for how large a screwdriver gear-retarder _ ka157r97dt80mk4_ka157r97dre132l4
KA157R97DT80MK4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DT80MK4 | 6881 | 0.55KW | 0.20r/min | 21900N.m | 726kg | 110000N | 0.80 |
| KA157R97DT80MK4 | 5931 | 0.55KW | 0.23r/min | 18800N.m | 726kg | 111700N | 0.95 |
| KA157R97DT80MK4 | 3979 | 0.55KW | 0.35r/min | 12600N.m | 726kg | 114500N | 1.40 |
| KA157R97DT80MK4 | 3051 | 0.55KW | 0.45r/min | 9710N.m | 726kg | 115400N | 1.85 |
Ka157r97dre132l4 motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DRE132L4 | 434 | 7.5KW | 3.40r/min | 19300N.m | 784kg | 111500N | 0.95 |
| KA157R97DRE132L4 | 379 | 7.5KW | 3.90r/min | 16800N.m | 784kg | 112700N | 1.05 |
| KA157R97DRE132L4 | 333 | 7.5KW | 4.40r/min | 14800N.m | 784kg | 113600N | 1.20 |
| KA157R97DRE132L4 | 291 | 7.5KW | 5.00r/min | 12900N.m | 784kg | 114400N | 1.40 |
KA157R97DT80MK4Speeding machine type:
K157r97dt80mk4 bottom foot installation of tilt gear - umbrella gear deviation engine
Ka157br97dt80mk 4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv157 br97dt80mk 4 bottom feet sky axis installation of tilt gear - umbrella gear deviation engine
Kh157 br97dt80mk 4 bottom feet hole locker with tilt gear.Right-angle shaft reducer motor
Frf157r97dt80mk4b5 installation of tilt gears - umbrella gear reduction power
Kaf157r97dt80mk4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Frf157r97dt80mk4b5 installation of tilt gear - umbrella gear-reducing power
Khf157r97dt80mk4b5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r97dt80mk4 hollow axle tilt gears - an umbrella gear deceleration power
Kv157r97dt80mk4 spaced axles with tilt gears - umbrella gear reduction power
Kh157r97dt80mk4 empty axle locks slashing gears - umbrella gear reduction power
The kt157r97dt80mk4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz157r97dt80mk4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing electrics on the francular axle
Dhz157r97dt80mk4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

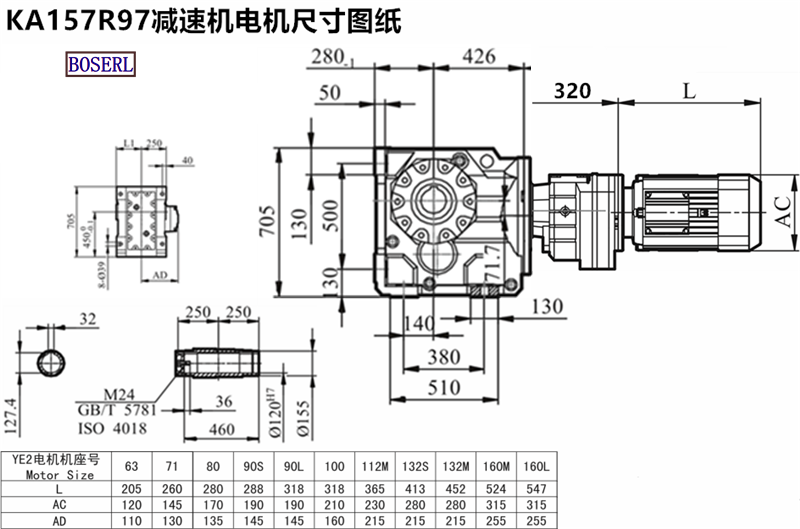

KA157R97DT80MK4Induction Motor 3Ph motors installed size drawings
Ka157r97dt80mk4 deviation power plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
