KA157R97DV112M4Detailed Information
Keywords: how 4kw electrics fit into a straight-angle porereducing box_ka157r97dv112m4_ka157r97drs80m4
KA157R97DV112M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DV112M4 | 854 | 4KW | 1.70r/min | 20300N.m | 757kg | 110900N | 0.90 |
| KA157R97DV112M4 | 756 | 4KW | 1.90r/min | 17800N.m | 757kg | 112300N | 1.00 |
| KA157R97DV112M4 | 567 | 4KW | 2.60r/min | 13400N.m | 757kg | 114200N | 1.35 |
| KA157R97DV112M4 | 504 | 4KW | 2.90r/min | 11900N.m | 757kg | 114700N | 1.50 |
| KA157R97DV112M4 | 434 | 4KW | 3.40r/min | 10200N.m | 757kg | 115200N | 1.75 |
Ka157r97drrs80m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DRS80M4 | 3979 | 0.75KW | 0.36r/min | 16900N.m | 727kg | 112700N | 1.05 |
| KA157R97DRS80M4 | 3051 | 0.75KW | 0.47r/min | 13000N.m | 727kg | 114300N | 1.40 |
| KA157R97DRS80M4 | 1659 | 0.75KW | 0.87r/min | 7160N.m | 727kg | 116000N | 2.50 |
| KA157R97DRS80M4 | 1365 | 0.75KW | 1.00r/min | 5770N.m | 727kg | 116200N | 3.10 |
KA157R97DV112M4Speeding machine type:
K157r97dv112m4 foot is equipped with tilt gears - umbrella gear reduction power
Ka157br97dv112m4 foot hollow axis with tilt gears - umbrella gear-reducing power
Kv157 br97dv112m4 foot larvae axis fitted with tilt gear - umbrella gear reduction power
Kh157 br97dv112m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf157r97dv112m4b5 is equipped with tilt gears - an umbrella gear decelerator
Kaf157r97dv112m4b5 franic air heart axes with tilt gears - umbrella gear deviation engine
Kvf157r97dv112m4b5-franco-cycle axis installation of tilt gears - umbrella gear deviation engine
Khf157r97dv112m4b5farland axial axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r97dv112m4 hollow axle tilt gears - an umbrella gear decelerator power plant
Kv157r97dv112m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh157r97dv112m4 sky axes locked tilt tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt157r97dv112m4 hollow axle - umbrella gear reduction power
Kaz157r97dv112m4b14 aerocardial axle is equipped with tilt gears - an umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors in the franberry axle
Khz157r97dv112m4b14 french axle locks with tilt gears - an umbrella gear-reducing power plant

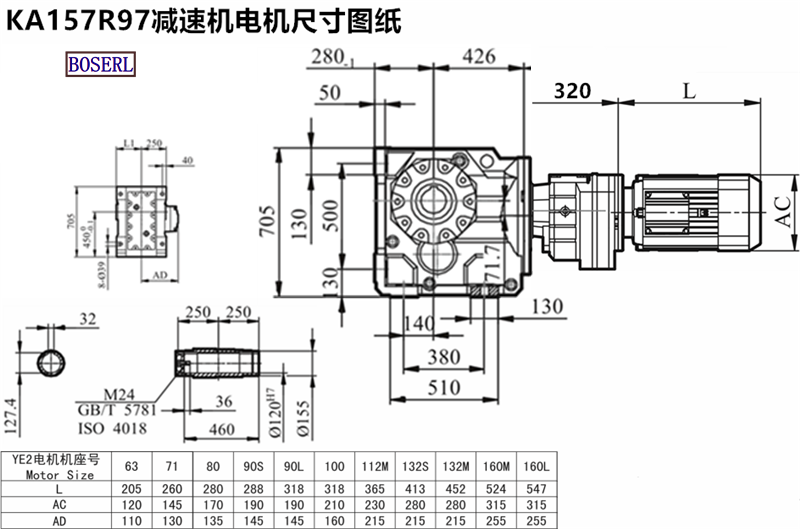

KA157R97DV112M4Induction Motor 3Ph motors installed size drawings
Ka157r97dv112m4 deviation electric power plantThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How 4kw power is fitted with a a157r97dv112m4kka157r97drs80m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA157R97DV112M4减速机样本 |
|
| KA157R97DV112M4减速机三维图纸 |
|
