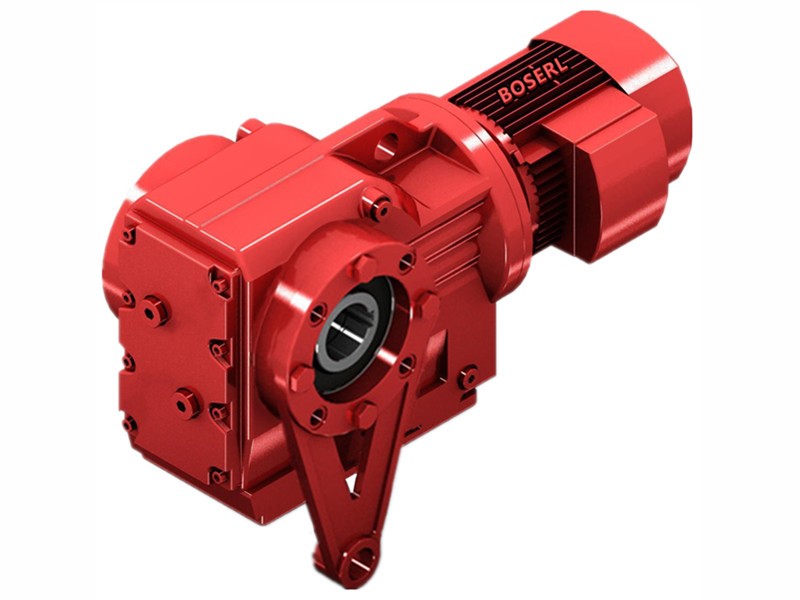

KA157/TDR180L4Detailed Information
Keyword: how big a 200kw power is with an umbrella gear brake _ka157/tdr180l4_ka157/tdve180l4
KA157/TDR180L4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157/TDR180L4 | 122.39 | 22KW | 12rpm | 17600N.m | 800Kg | 105500N | 1 |
| KA157/TDR180L4 | 100.22 | 22KW | 15rpm | 14400N.m | 800Kg | 104100N | 1.25 |
| KA157/TDR180L4 | 91.65 | 22KW | 16rpm | 13100N.m | 800Kg | 103300N | 1.35 |
| KA157/TDR180L4 | 79.65 | 22KW | 18rpm | 11400N.m | 800Kg | 101600N | 1.55 |
| KA157/TDR180L4 | 70.38 | 22KW | 21rpm | 10100N.m | 800Kg | 99900N | 1.8 |
| KA157/TDR180L4 | 61.02 | 22KW | 24rpm | 8780N.m | 800Kg | 97700N | 2 |
| KA157/TDR180L4 | 54.29 | 22KW | 27rpm | 7810N.m | 800Kg | 95800N | 2.3 |
| KA157/TDR180L4 | 46.79 | 22KW | 31rpm | 6730N.m | 800Kg | 93300N | 2.7 |
| KA157/TDR180L4 | 38.02 | 22KW | 38rpm | 5470N.m | 800Kg | 89500N | 3.3 |
Ka157/tdve180l4 motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157/TDVE180L4 | 122.39 | 22KW | 12rpm | 17600N.m | 800Kg | 105500N | 1 |
| KA157/TDVE180L4 | 100.22 | 22KW | 15rpm | 14400N.m | 800Kg | 104100N | 1.25 |
| KA157/TDVE180L4 | 91.65 | 22KW | 16rpm | 13100N.m | 800Kg | 103300N | 1.35 |
| KA157/TDVE180L4 | 79.65 | 22KW | 18rpm | 11400N.m | 800Kg | 101600N | 1.55 |
| KA157/TDVE180L4 | 70.38 | 22KW | 21rpm | 10100N.m | 800Kg | 99900N | 1.8 |
| KA157/TDVE180L4 | 61.02 | 22KW | 24rpm | 8780N.m | 800Kg | 97700N | 2 |
| KA157/TDVE180L4 | 54.29 | 22KW | 27rpm | 7810N.m | 800Kg | 95800N | 2.3 |
| KA157/TDVE180L4 | 46.79 | 22KW | 31rpm | 6730N.m | 800Kg | 93300N | 2.7 |
| KA157/TDVE180L4 | 38.02 | 22KW | 38rpm | 5470N.m | 800Kg | 89500N | 3.3 |
KA157/TDR180L4Speeding machine type:
K. Dr. bottom foot slashing gears - umbrella gear reduction
Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power
Kv. B dr. bottom
Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor
Kf. Dr. B5 francs with slash gears - umbrella gear reduction
Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power
Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power
Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power
Ka. Dr. empty axle tilt gears - umbrella gear reduction power
Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator
Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power
Kt. Dr. hollow gears installed on the hollow axle
Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine
Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant
Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power
KA157/TDR180L4Induction Motor 3Ph motors installed size drawings:
KA157/TDR180L4At thereducing plant: three days in advance
Through-hole shaft reducerPresentation of application cases:
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
