KA167BR107DM160MC4Detailed Information
Keyword: 0. 2 kw for the electric cone cortex braker_ka167br107dm160mc4_ka167br107drrs180l4
KA167BR107DM160MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA167BR107DM160MC4 | 318 | 11KW | 4.60r/min | 21000N.m | 1,283kg | 150000N | 1.50 |
| KA167BR107DM160MC4 | 278 | 11KW | 5.30r/min | 18200N.m | 1,283kg | 150000N | 1.75 |
| KA167BR107DM160MC4 | 244 | 11KW | 6.00r/min | 15800N.m | 1,283kg | 150000N | 2.00 |
| KA167BR107DM160MC4 | 213 | 11KW | 6.90r/min | 13800N.m | 1,283kg | 150000N | 2.30 |
| KA167BR107DM160MC4 | 206 | 11KW | 7.20r/min | 13400N.m | 1,283kg | 150000N | 2.40 |
KA167BR107DRS180L4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA167BR107DRS180L4 | 278 | 22KW | 5.30r/min | 36900N.m | 1,353kg | 150000N | 0.85 |
| KA167BR107DRS180L4 | 244 | 22KW | 6.00r/min | 32000N.m | 1,353kg | 150000N | 1.00 |
| KA167BR107DRS180L4 | 213 | 22KW | 6.90r/min | 27900N.m | 1,353kg | 150000N | 1.15 |
| KA167BR107DRS180L4 | 206 | 22KW | 7.20r/min | 27200N.m | 1,353kg | 150000N | 1.15 |
| KA167BR107DRS180L4 | 180 | 22KW | 8.20r/min | 23500N.m | 1,353kg | 150000N | 1.35 |
| KA167BR107DRS180L4 | 160 | 22KW | 9.20r/min | 21200N.m | 1,353kg | 150000N | 1.50 |
| KA167BR107DRS180L4 | 135 | 22KW | 11.0r/min | 17900N.m | 1,353kg | 150000N | 1.80 |
| KA167BR107DRS180L4 | 118 | 22KW | 12.0r/min | 15600N.m | 1,353kg | 150000N | 2.00 |
KA167BR107DM160MC4Speeding machine type:
K167r107dm160mc4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka167br107dm160mc4 foot hollow axis with tilt gears - umbrella gear-reducing power
Kv167r107dm160mc4 bottom feet flow axis installation of tilt gear - umbrella gear deviation engine
Kh167r107dm160mc4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf167r107dm160mc4b5 installation of tilt gear - umbrella gear reduction power
Kaf167r107dm160mc4b5 installation of tilt gear - umbrella gear reduction power
Kvf167r107dm160mc4b5 franco-axis installation of tilt gears - umbrella gear-reducing power
Khf167r107dm160mc4b5 french axial axle locks fitted with tilt gears - an umbrella gear-reducing motor
Ka167r107dm160mc4 sky axis tilt gear - umbrella gear deviation power
Kv167r107dm160mc4 spaced axles with tilt gears - umbrella gear reduction power
Kh167r107dm160mc4 sky axes locked tilt tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt167r107dm160mc4 hollow axles - umbrella gear reduction power
Kaz167r107dm160mc4b14 installation of tilt gear - umbrella gear-reducing electric power
Kvz167r107dm160mc4b14 installation of tilt gear - umbrella gear-reducing power
Khz167r107dm160mc4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

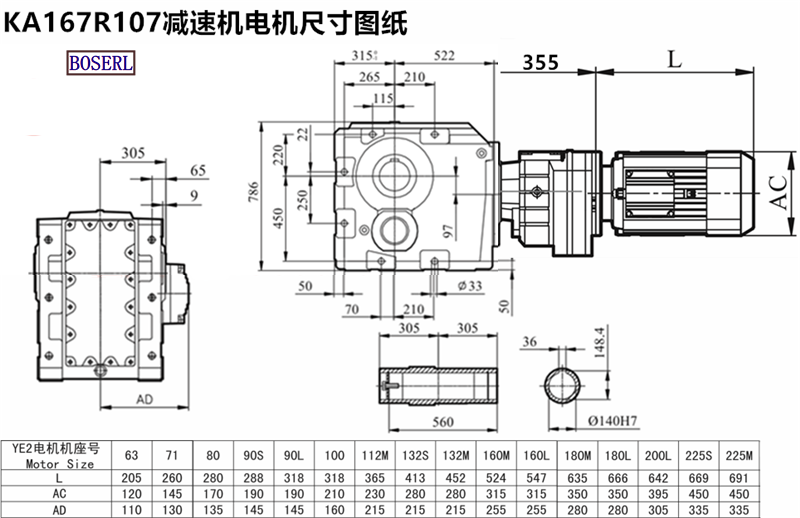

KA167BR107DM160MC4Induction Motor 3Ph motors installed size drawings
Ka167br107dm160mc4 power-reducing plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 0. 2 kw for electric screw gear brake ka167br107dm160mc4 ka167br107drrs180l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA167BR107DM160MC4减速机样本 |
|
| KA167BR107DM160MC4减速机三维图纸 |
|
