KA167BR107DR160MC4Detailed Information
Keywords: 37kw for electric cone gearreducing box_ka167br107dr160mc4_ka167br107dve180l4
KA167BR107DR160MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA167BR107DR160MC4 | 318 | 11KW | 4.60r/min | 21000N.m | 1,283kg | 150000N | 1.50 |
| KA167BR107DR160MC4 | 278 | 11KW | 5.30r/min | 18200N.m | 1,283kg | 150000N | 1.75 |
| KA167BR107DR160MC4 | 244 | 11KW | 6.00r/min | 15800N.m | 1,283kg | 150000N | 2.00 |
| KA167BR107DR160MC4 | 213 | 11KW | 6.90r/min | 13800N.m | 1,283kg | 150000N | 2.30 |
| KA167BR107DR160MC4 | 206 | 11KW | 7.20r/min | 13400N.m | 1,283kg | 150000N | 2.40 |
KA167BR107DVE180L4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA167BR107DVE180L4 | 278 | 22KW | 5.30r/min | 36900N.m | 1,353kg | 150000N | 0.85 |
| KA167BR107DVE180L4 | 244 | 22KW | 6.00r/min | 32000N.m | 1,353kg | 150000N | 1.00 |
| KA167BR107DVE180L4 | 213 | 22KW | 6.90r/min | 27900N.m | 1,353kg | 150000N | 1.15 |
| KA167BR107DVE180L4 | 206 | 22KW | 7.20r/min | 27200N.m | 1,353kg | 150000N | 1.15 |
| KA167BR107DVE180L4 | 180 | 22KW | 8.20r/min | 23500N.m | 1,353kg | 150000N | 1.35 |
| KA167BR107DVE180L4 | 160 | 22KW | 9.20r/min | 21200N.m | 1,353kg | 150000N | 1.50 |
| KA167BR107DVE180L4 | 135 | 22KW | 11.0r/min | 17900N.m | 1,353kg | 150000N | 1.80 |
| KA167BR107DVE180L4 | 118 | 22KW | 12.0r/min | 15600N.m | 1,353kg | 150000N | 2.00 |
KA167BR107DR160MC4Speeding machine type:
K167r107dr160mc4 bottom foot with tilt gears - umbrella gear reduction power
Ka167br107dr160mc4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv167br107dr160mc4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear reduction power
Kh167br107dr160mc4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf167r107dr160mc4b5 installation of tilt gear - umbrella gear reduction power
Kaf167r107dr160mc4b5 installation of tilt gear - umbrella gear reduction power
Kvf167r107dr160mc4b5 flannel axles installed with tilt gears - umbrella gear reduction power
Khf167r107dr160mc4b5 french axial axle locks fitted with tilt gears - umbrella gear reduction power
Ka167r107dr160mc4 hollow axle tilt gears - umbrella gear reduction power
Kv167r107dr160mc4 space cores fitted with tilt gears - umbrella gear reduction power
Kh167r107dr160mc4 sky axes locked tilt gears - umbrella gear deviation engine
Kt167r107dr160mc4 sky axis installation of tilt gear - umbrella gear deviation engine
Kaz167r107dr160mc4b14 installation of tilt gear - umbrella gear reduction power
Kvz167r107dr160mc4b14 installation of tilt gears - umbrella gear-reducing power
Khz167r107dr160mc4b14 french axial axle locks fitted with tilt gears - an umbrella gear-reducing motor

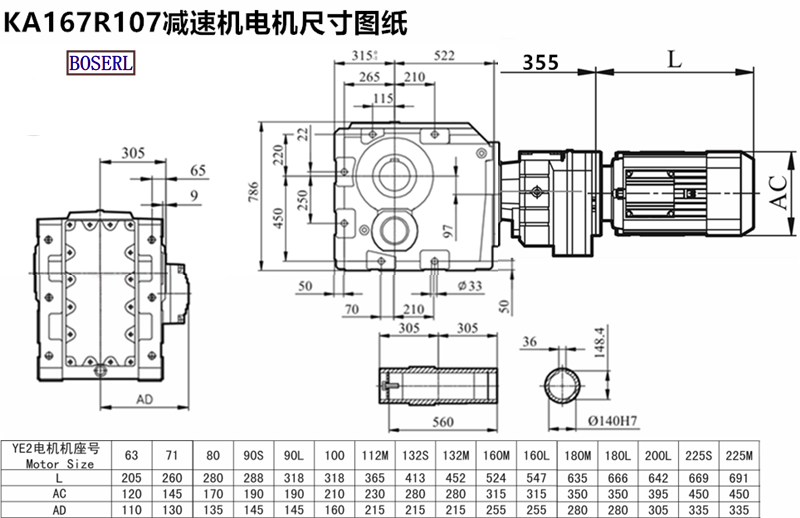

KA167BR107DR160MC4Induction Motor 3Ph motors installed size drawings
Ka167br107dr160mc4 power-reducing plantThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 37kw for electric cone gear-reducing box ka167br107dr160mc4 ka167br107dve180l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA167BR107DR160MC4减速机样本 |
|
| KA167BR107DR160MC4减速机三维图纸 |
|
