KA167BR107DT200L4Detailed Information
Keywords: 5. 5 kw to service electric cone cortex gear brakes_ka167br107dt200l4_ka167br107dr160mc4
KA167BR107DT200L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA167BR107DT200L4 | 213 | 30KW | 6.90r/min | 38200N.m | 1,421kg | 150000N | 0.85 |
| KA167BR107DT200L4 | 206 | 30KW | 7.20r/min | 37300N.m | 1,421kg | 150000N | 0.85 |
| KA167BR107DT200L4 | 180 | 30KW | 8.20r/min | 32300N.m | 1,421kg | 150000N | 1.00 |
| KA167BR107DT200L4 | 160 | 30KW | 9.20r/min | 29000N.m | 1,421kg | 150000N | 1.10 |
| KA167BR107DT200L4 | 135 | 30KW | 11.0r/min | 24500N.m | 1,421kg | 150000N | 1.30 |
| KA167BR107DT200L4 | 118 | 30KW | 12.0r/min | 21400N.m | 1,421kg | 150000N | 1.50 |
KA167BR107DRE160MC4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA167BR107DRE160MC4 | 318 | 11KW | 4.60r/min | 21000N.m | 1,283kg | 150000N | 1.50 |
| KA167BR107DRE160MC4 | 278 | 11KW | 5.30r/min | 18200N.m | 1,283kg | 150000N | 1.75 |
| KA167BR107DRE160MC4 | 244 | 11KW | 6.00r/min | 15800N.m | 1,283kg | 150000N | 2.00 |
| KA167BR107DRE160MC4 | 213 | 11KW | 6.90r/min | 13800N.m | 1,283kg | 150000N | 2.30 |
| KA167BR107DRE160MC4 | 206 | 11KW | 7.20r/min | 13400N.m | 1,283kg | 150000N | 2.40 |
KA167BR107DT200L4Speeding machine type:
K167r107dt200l4 foot is fitted with tilt gears - umbrella gear reduction power
Ka167br107dt200l4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv167br107dt200l4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh167br107dt200l4 bottom-foot empty-centrifugal axle locks with tilt gears.Right-angle shaft reducer motor
Frf167r107dt200l4b5 installation of tilt gear - umbrella gear reduction power
Kaf167r107dt200l4b5farland aerocentric axis with tilt gears - umbrella gear reduction power
Kvf167r107dt200l4b5francocardoaxis installed with tilt gears - umbrella gear-reducing power
Khf167r107dt200l4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka167r107dt200l4 hollow axial tilt gears - an umbrella gear-reducing motor
Kv167r107dt200l4 hole gears - umbrella gear reduction power
Kh167r107dt200l4 empty axle locks the slashing gears - an umbrella gear decelerator
The kt167r107dt200l4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz167r107dt200l4b14 installation of tilt gear - umbrella gear reduction power
Kvz167r107dt200l4b14franco-axis fitted with tilt gears - an umbrella gear-reducing generator
Khz167r107dt200l4b14farland axle locks fitted with tilt gears - umbrella gear-reducing power

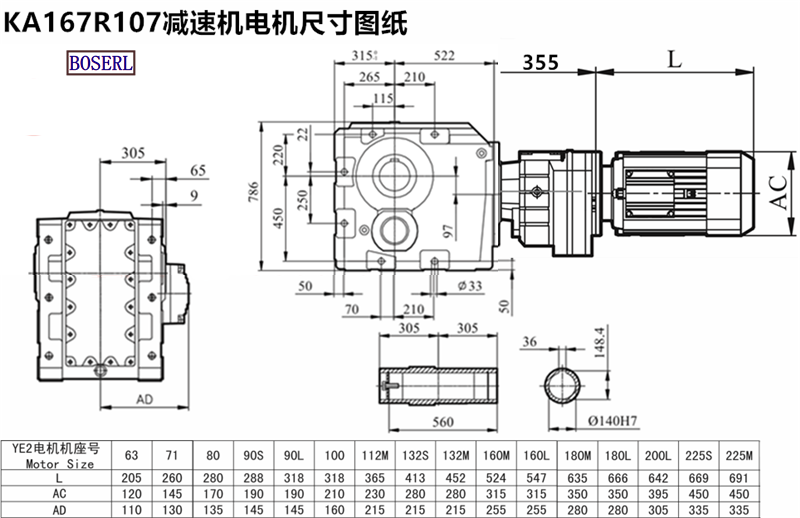

KA167BR107DT200L4Induction Motor 3Ph motors installed size drawings
Ka167br107dt200l4 power-reducing plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 5. 5kw to service the electric wheel coil gear brake ka167br107dt200l4 ka167br107dr160mc4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA167BR107DT200L4减速机样本 |
|
| KA167BR107DT200L4减速机三维图纸 |
|
