KA167BR107DT225M4Detailed Information
Keywords: 2. 9 kw for electric cone cortex gear brakes_ka167br107dt225m4_ka167br107drre160m4
KA167BR107DT225M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA167BR107DT225M4 | 135 | 45KW | 11.0r/min | 36900N.m | 1,503kg | 150000N | 0.85 |
| KA167BR107DT225M4 | 118 | 45KW | 12.0r/min | 32200N.m | 1,503kg | 150000N | 1.00 |
KA167BR107DRE160M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA167BR107DRE160M4 | 318 | 11KW | 4.60r/min | 21000N.m | 1,283kg | 150000N | 1.50 |
| KA167BR107DRE160M4 | 278 | 11KW | 5.30r/min | 18200N.m | 1,283kg | 150000N | 1.75 |
| KA167BR107DRE160M4 | 244 | 11KW | 6.00r/min | 15800N.m | 1,283kg | 150000N | 2.00 |
| KA167BR107DRE160M4 | 213 | 11KW | 6.90r/min | 13800N.m | 1,283kg | 150000N | 2.30 |
| KA167BR107DRE160M4 | 206 | 11KW | 7.20r/min | 13400N.m | 1,283kg | 150000N | 2.40 |
KA167BR107DT225M4Speeding machine type:
K167r107dt225m4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka167br107dt225m4 foot hollow axis with slash gears - umbrella gear-reducing power
Kv167br107dt225m4 bottom feet axis installation of tilt gear - umbrella gear deviation engine
Kh167br107dt225m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf167r107dt225m4b5 installation of tilt gears - umbrella gear reduction power
Kaf167r107dt225m4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf167r107dt225m4b5francocardiograms fitted with tilt gears - umbrella gear-reducing motors
Khf167r107dt225m4b5farland axle locks equipped with tilt gears - umbrella gear-reducing power
Ka167r107dt225m4 hollow axle tilt gears - an umbrella gear reduction power
Kv167r107dt225m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh167r107dt225m4 empty axle locks slashing gears - umbrella gear reduction power
The kt167r107dt225m4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz167r107dt225m4b14 installation of tilt gear - umbrella gear reduction power
Kvz167r107dt225m4b14 installation of tilt gears - umbrella gear deviation power
Khz167r107dt225m4b14 franium axle locks fitted with tilt gears - umbrella gear-reducing motors

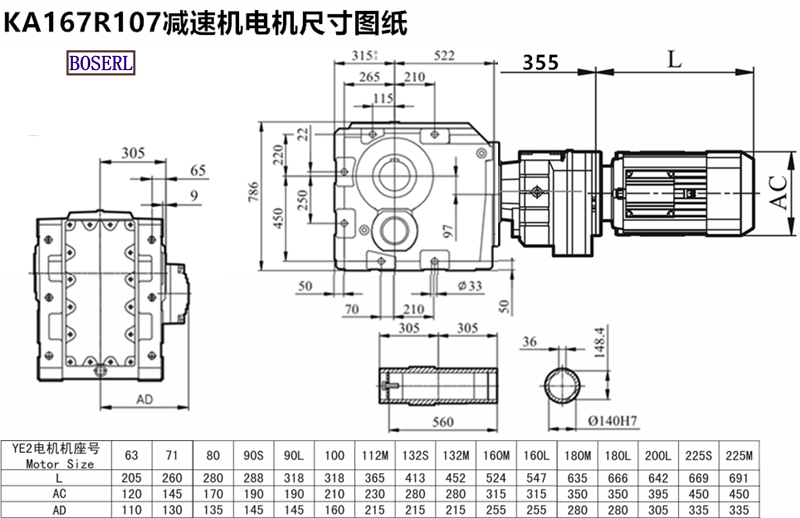

KA167BR107DT225M4Induction Motor 3Ph motors installed size drawings
Ka167br107dt225m4 deviation power plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 2. 9kw to serve the electric wheel coil gear brake ka167br107dt225m4kka167br107dr160m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA167BR107DT225M4减速机样本 |
|
| KA167BR107DT225M4减速机三维图纸 |
|
