KA167BR107DV160M4Detailed Information
Keyword: 0. 73 kw for the electric cone cortex braker_ka167br107dv160m4_ka167br107drrn200m4
KA167BR107DV160M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA167BR107DV160M4 | 318 | 11KW | 4.60r/min | 21000N.m | 1,283kg | 150000N | 1.50 |
| KA167BR107DV160M4 | 278 | 11KW | 5.30r/min | 18200N.m | 1,283kg | 150000N | 1.75 |
| KA167BR107DV160M4 | 244 | 11KW | 6.00r/min | 15800N.m | 1,283kg | 150000N | 2.00 |
| KA167BR107DV160M4 | 213 | 11KW | 6.90r/min | 13800N.m | 1,283kg | 150000N | 2.30 |
| KA167BR107DV160M4 | 206 | 11KW | 7.20r/min | 13400N.m | 1,283kg | 150000N | 2.40 |
KA167BR107DRN200M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA167BR107DRN200M4 | 213 | 30KW | 6.90r/min | 38200N.m | 1,421kg | 150000N | 0.85 |
| KA167BR107DRN200M4 | 206 | 30KW | 7.20r/min | 37300N.m | 1,421kg | 150000N | 0.85 |
| KA167BR107DRN200M4 | 180 | 30KW | 8.20r/min | 32300N.m | 1,421kg | 150000N | 1.00 |
| KA167BR107DRN200M4 | 160 | 30KW | 9.20r/min | 29000N.m | 1,421kg | 150000N | 1.10 |
| KA167BR107DRN200M4 | 135 | 30KW | 11.0r/min | 24500N.m | 1,421kg | 150000N | 1.30 |
| KA167BR107DRN200M4 | 118 | 30KW | 12.0r/min | 21400N.m | 1,421kg | 150000N | 1.50 |
KA167BR107DV160M4Speeding machine type:
K167r107dv160m4 foot is equipped with tilt gears - umbrella gear reduction power
Ka167br107dv160m4 foot hollow axis fitted with tilt gear - umbrella gear-reducing power
The kv167r107dv160m4 foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh167r107dv160m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf167r107dv160m4b5 installation of tilt gear - umbrella gear reduction power
Kaf167r107dv160m4b5 french aerocentric axis with tilt gears - umbrella gear-reducing power
Kvf167r107dv160m4b5 frandra keys installation of tilt gear - umbrella gear deviation engine
Khf167r107dv160m4b5 french axial axle locks fitted with tilt gears - umbrella gear-reducing motors
Ka167r107dv160m4 hollow axle tilt gears - an umbrella gear decelerator power plant
Kv167r107dv160m4 spaced axles with tilt gears - umbrella gear-reducing power
Kh167r107dv160m4 sky axe locked tilt tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt167r107dv160m4 hollow axle - umbrella gear reduction power
Kaz167r107dv160m4b14 installation of tilt gear - umbrella gear reduction power
Kvz167r107dv160m4b14 installation of tilt gear - umbrella gear reduction power
Khz167r107dv160m4b14 franium axle locks fitted with tilt gears - an umbrella gear-reducing power plant

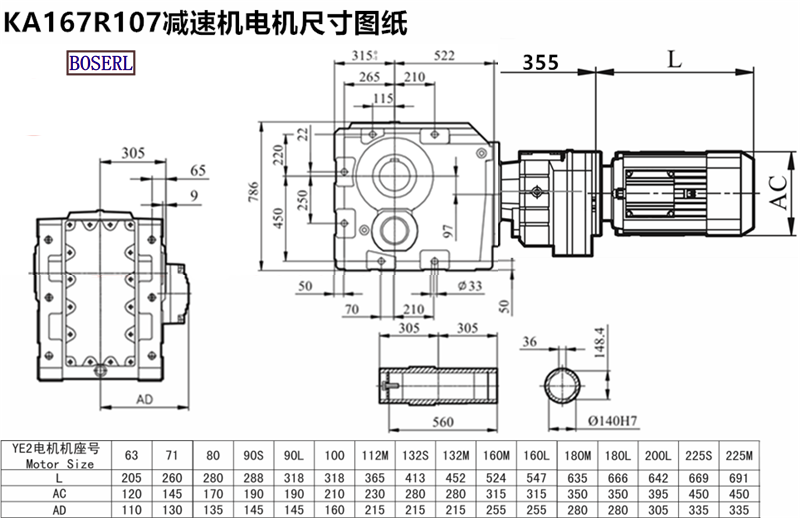

KA167BR107DV160M4Induction Motor 3Ph motors installed size drawings
Ka167 br107dv160m4 deviation power plant, three days' appointmentThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 0. 73kw for electric screw gear brakes ka167br107dv160m4kka167br107drrn200m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA167BR107DV160M4减速机样本 |
|
| KA167BR107DV160M4减速机三维图纸 |
|
