KA167BR97DV100LS4Detailed Information
Keyword: 0. 8 kw for the electric wheel coil gear reduction machine _ka167br97dv100ls4_ka167br97rn132mc4
KA167BR97DV100LS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA167BR97DV100LS4 | 2755 | 2.2KW | 0.52r/min | 36200N.m | 1,148kg | 150000N | 0.90 |
| KA167BR97DV100LS4 | 2263 | 2.2KW | 0.63r/min | 29100N.m | 1,148kg | 150000N | 1.10 |
| KA167BR97DV100LS4 | 2182 | 2.2KW | 0.65r/min | 29300N.m | 1,148kg | 150000N | 1.10 |
| KA167BR97DV100LS4 | 1408 | 2.2KW | 1.00r/min | 18800N.m | 1,148kg | 150000N | 1.70 |
| KA167BR97DV100LS4 | 1704 | 2.2KW | 0.84r/min | 22800N.m | 1,148kg | 150000N | 1.40 |
| KA167BR97DV100LS4 | 1296 | 2.2KW | 1.10r/min | 17300N.m | 1,148kg | 150000N | 1.85 |
| KA167BR97DV100LS4 | 1101 | 2.2KW | 1.30r/min | 14400N.m | 1,148kg | 150000N | 2.20 |
| KA167BR97DV100LS4 | 944 | 2.2KW | 1.50r/min | 12400N.m | 1,148kg | 150000N | 2.60 |
KA167BR97DRN132MC4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA167BR97DRN132MC4 | 843 | 7.5KW | 1.70r/min | 37600N.m | 1,189kg | 150000N | 0.85 |
| KA167BR97DRN132MC4 | 757 | 7.5KW | 1.90r/min | 33800N.m | 1,189kg | 150000N | 0.95 |
| KA167BR97DRN132MC4 | 632 | 7.5KW | 2.30r/min | 28300N.m | 1,189kg | 150000N | 1.15 |
| KA167BR97DRN132MC4 | 561 | 7.5KW | 2.60r/min | 24900N.m | 1,189kg | 150000N | 1.30 |
| KA167BR97DRN132MC4 | 481 | 7.5KW | 3.10r/min | 21500N.m | 1,189kg | 150000N | 1.50 |
| KA167BR97DRN132MC4 | 423 | 7.5KW | 3.50r/min | 18800N.m | 1,189kg | 150000N | 1.70 |
| KA167BR97DRN132MC4 | 369 | 7.5KW | 4.00r/min | 16400N.m | 1,189kg | 150000N | 1.95 |
KA167BR97DV100LS4Speeding machine type:
K167r97dv100ls4 bottom foot installation of tilt gear - umbrella gear deviation engine
Ka167br97dv100ls 4 foot hollow axis with tilt gears - umbrella gear-reducing power
Kv167br97dv100ls4 foot larvae axis installation of tilt gears - umbrella gear reduction power
Kh167 br97dv100ls 4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf167r97dv100ls4b5 installation of tilt gear - umbrella gear-reducing power
Kaf167r97dv100ls4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Installation of tilt gears on the frf167r97dv100ls4b5 cardiac axle - an umbrella gear decelerator
Khf167r97dv100ls4b5farland axle locks fitted with tilt gears - an umbrella gear-reducing power plant
Ka167r97dv100ls4 hollow axle tilt gears - umbrella gear reduction power
Kv167r97dv100ls4 space cores fitted with tilt gears - umbrella gear reduction power
Kh167r97dv100ls4 sky axes locked tilt gear - umbrella gear deviation engine
Kt167r97dv100ls4 tilt gears - umbrella gear deviation engine
Kaz167r97dv100ls4b14 installation of tilt gears - umbrella gear reduction power
Kvz167r97dv100ls4b14 installation of slashed gears - umbrella gear reduction power
Khz167r97dv100ls4b14 franium axial axle locks fitted with tilt gears - umbrella gear-reducing power

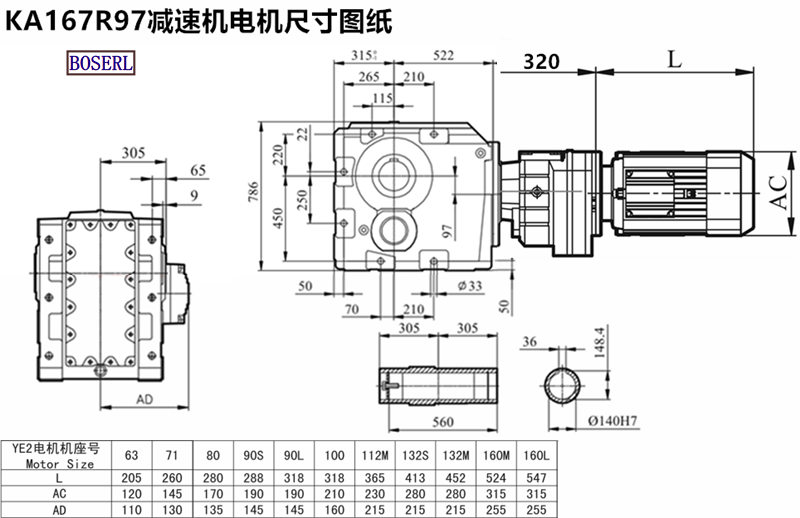

KA167BR97DV100LS4Induction Motor 3Ph motors installed size drawings
Ka167 br97dv100ls4 deviation electrician manufacturer. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 0. 8kw for the electric wheel cortex ka167br97dv100ls4ka167br97rn132mc4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA167BR97DV100LS4减速机样本 |
|
| KA167BR97DV100LS4减速机三维图纸 |
|
