KA187BR107DV132MC4Detailed Information
Keyword: 45kw to serve the electric wheel cortex gear-retarder _ka187 br107dv132mc4_ka187br107drrn132ml4
KA187BR107DV132MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA187BR107DV132MC4 | 835 | 7.5KW | 1.80r/min | 37100N.m | 1,926kg | 190000N | 1.35 |
| KA187BR107DV132MC4 | 729 | 7.5KW | 2.00r/min | 32200N.m | 1,926kg | 190000N | 1.55 |
| KA187BR107DV132MC4 | 622 | 7.5KW | 2.40r/min | 27400N.m | 1,926kg | 190000N | 1.80 |
KA187BR107DRN132ML4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA187BR107DRN132ML4 | 835 | 7.5KW | 1.80r/min | 37100N.m | 1,926kg | 190000N | 1.35 |
| KA187BR107DRN132ML4 | 729 | 7.5KW | 2.00r/min | 32200N.m | 1,926kg | 190000N | 1.55 |
| KA187BR107DRN132ML4 | 622 | 7.5KW | 2.40r/min | 27400N.m | 1,926kg | 190000N | 1.80 |
KA187BR107DV132MC4Speeding machine type:
K187r107dv132mc4 bottom foot fitted with tilt gears - umbrella gear decelerator
Ka187 br107dv132mc4 foot hollow axis fitted with tilt gears - umbrella gear reduction power
Kv187 br107dv132mc4 bottom feet cascular axe installation of tilt gear - umbrella gear deviation engine
Kh187 br107dv132mc4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf 187r107dv132mc4b5 installation of tilt gear - umbrella gear-reducing power
Kaf 187r107dv132mc4b5 installation of tilt gear - umbrella gear-reducing power
Frf 187r107dv132mc4b5 installation of tilt gear - umbrella gear-reducing power
Khf187r107dv132mc4b5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka187r107dv132mc4 hollow axle tilt gears - an umbrella gear-reducing motor
Kv187r107dv132mc4 space cores fitted with tilt gears - umbrella gear reduction power
Kh187r107dv132mc4 empty axle locks slashing gears - umbrella gear reduction power
Kt187r107dv132mc4 tilt gears - umbrella gear reduction power
Kaz187r107dv132mc4b14 installation of tilt gear - umbrella gear reduction power
Kvz187r107dv132mc4b14 installation of tilt gears - umbrella gear-reducing power
Dhz187r107dv132mc4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

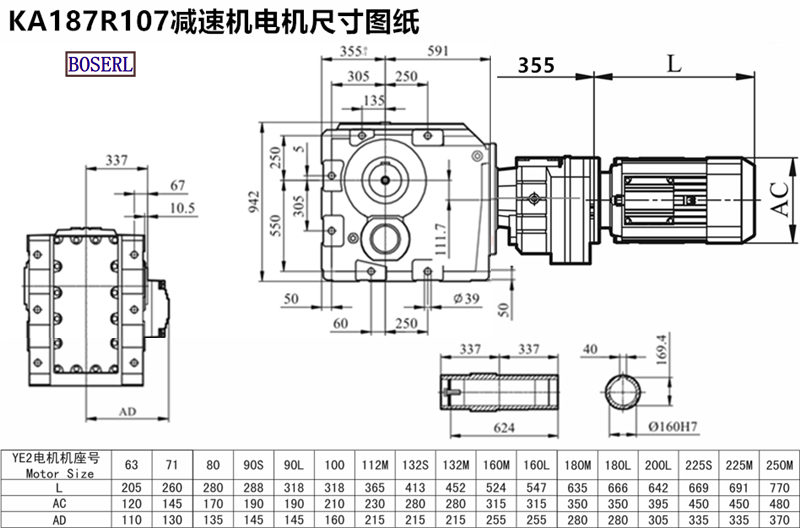

KA187BR107DV132MC4Induction Motor 3Ph motors installed size drawings
Ka187 br107dv132mc4 deviation electric power plant, three days' appointmentThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 45kw to serve the electric screwdriver gear-reducing motor ka187br107dv132mc4 ka187br107drrn132ml4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA187BR107DV132MC4减速机样本 |
|
| KA187BR107DV132MC4减速机三维图纸 |
|
