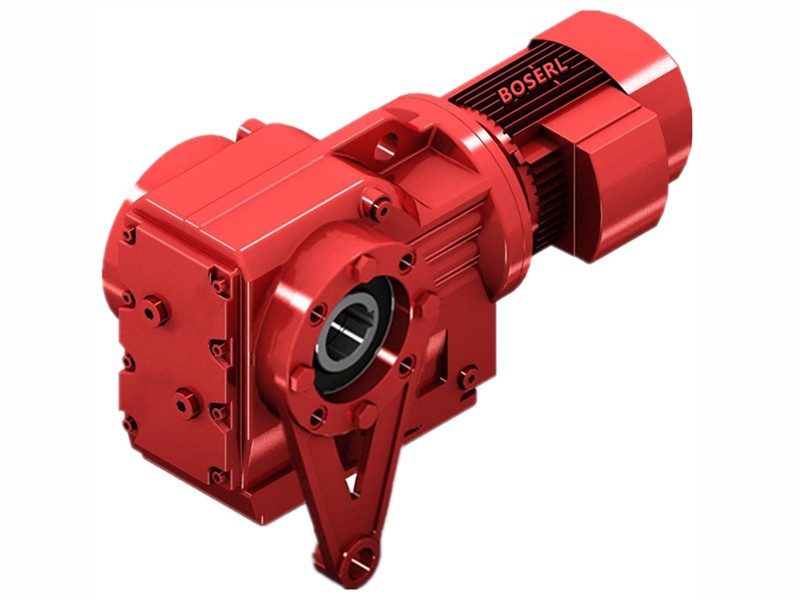

Ka37/t power brakesDetailed Information
Keywords: ka37/t electric retrenchor_ka37 ty80m4_ka37 ty90m4_ka37/t retrenchor electrician_ka37 ty100m4_ka37/t retrenchor generator producer
KA37/TY100M4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA37/TY100M4 | 8.91 | 3KW | 157rpm | 182N.m | 37kg | 2000N | 0.9 |
| KA37/TY100M4 | 7.96 | 3KW | 176rpm | 163N.m | 37kg | 2040N | 0.95 |
| KA37/TY100M4 | 6.8 | 3KW | 206rpm | 139N.m | 37kg | 2080N | 1.1 |
| KA37/TY100M4 | 6.37 | 3KW | 220rpm | 130N.m | 37kg | 2080N | 1.1 |
| KA37/TY100M4 | 5.36 | 3KW | 261rpm | 110N.m | 37kg | 2090N | 1.3 |
| KA37/TY100M4 | 3.98 | 3KW | 352rpm | 81N.m | 37kg | 2050N | 1.55 |
Ka37/ty80m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA37/TY80M4 | 29.96 | 1.1KW | 47rpm | 220N.m | 25kg | 3420N | 0.9 |
| KA37/TY80M4 | 24.99 | 1.1KW | 56rpm | 186N.m | 25kg | 3440N | 1.05 |
| KA37/TY80M4 | 23.36 | 1.1KW | 60rpm | 174N.m | 25kg | 3440N | 1.1 |
| KA37/TY80M4 | 20.19 | 1.1KW | 70rpm | 150N.m | 25kg | 3410N | 1.25 |
| KA37/TY80M4 | 17.15 | 1.1KW | 82rpm | 128N.m | 25kg | 3370N | 1.4 |
| KA37/TY80M4 | 15.31 | 1.1KW | 92rpm | 114N.m | 25kg | 3320N | 1.55 |
| KA37/TY80M4 | 13.08 | 1.1KW | 108rpm | 98N.m | 25kg | 3250N | 1.7 |
| KA37/TY80M4 | 12.14 | 1.1KW | 116rpm | 90N.m | 25kg | 3220N | 1.75 |
| KA37/TY80M4 | 10.49 | 1.1KW | 134rpm | 78N.m | 25kg | 3140N | 2 |
| KA37/TY80M4 | 8.91 | 1.1KW | 158rpm | 66N.m | 25kg | 3040N | 2.4 |
| KA37/TY80M4 | 7.96 | 1.1KW | 177rpm | 59N.m | 25kg | 2970N | 2.6 |
| KA37/TY80M4 | 6.8 | 1.1KW | 207rpm | 51N.m | 25kg | 2870N | 3 |
| KA37/TY80M4 | 6.37 | 1.1KW | 221rpm | 47N.m | 25kg | 2820N | 3.1 |
| KA37/TY80M4 | 5.36 | 1.1KW | 263rpm | 40N.m | 25kg | 2710N | 3.5 |
| KA37/TY80M4 | 3.98 | 1.1KW | 354rpm | 30N.m | 25kg | 2510N | 4.2 |
Ka37/ty90m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA37/TY90M4 | 13.08 | 2.2KW | 107rpm | 196N.m | 31kg | 2360N | 0.85 |
| KA37/TY90M4 | 10.49 | 2.2KW | 133rpm | 157N.m | 31kg | 2430N | 1 |
| KA37/TY90M4 | 8.91 | 2.2KW | 157rpm | 134N.m | 31kg | 2440N | 1.2 |
| KA37/TY90M4 | 7.96 | 2.2KW | 176rpm | 119N.m | 31kg | 2430N | 1.3 |
| KA37/TY90M4 | 6.8 | 2.2KW | 206rpm | 102N.m | 31kg | 2410N | 1.45 |
| KA37/TY90M4 | 6.37 | 2.2KW | 220rpm | 96N.m | 31kg | 2400N | 1.5 |
| KA37/TY90M4 | 5.36 | 2.2KW | 261rpm | 80N.m | 31kg | 2350N | 1.75 |
| KA37/TY90M4 | 3.98 | 2.2KW | 352rpm | 60N.m | 31kg | 2250N | 2.1 |
Type of ka37/t power brake:
K. Dr. bottom foot slashing gears - umbrella gear reduction
Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power
Kv. B dr. bottom
Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor
Kf. Dr. B5 francs with slash gears - umbrella gear reduction
Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power
Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power
Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power
Ka. Dr. empty axle tilt gears - umbrella gear reduction power
Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator
Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power
Kt. Dr. hollow gears installed on the hollow axle
Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine
Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant
Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power
Installation of size drawings for ka37/treducing machines
Ka37/t-reducing plant display: three days' reservation at the plant
Through-hole shaft reducerPresentation of application cases:
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: Ka37/t-reducing a37/ty80m4kka37/ty90m4 ka37/t-reducing ka37/ty100m4 ka37/t-reducing power plant
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA37/T电机减速器样本 |
|
| KA37/TY100M4三维图纸 |
|
