KA37/TDR63MS4Detailed Information

KA37/TDR63MS4
prevnext

KA37/TDR63MS4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 45 kw electrons for what size of a hollow retarder_ka37/tdr63ms4_ka37/tdrs63ms4

KA37/TDR63MS4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KA37/TDR63MS4106.380.12kw13rpm88N.m16kg6500N2.3
KA37/TDR63MS497.810.12kw14rpm81N.m16kg6530N2.5
KA37/TDR63MS483.690.12kw16rpm70N.m16kg6570N2.9
KA37/TDR63MS472.540.12kw19rpm60N.m16kg6600N3.3
KA37/TDR63MS467.80.12kw20rpm56N.m16kg6610N3.6
KA37/TDR63MS458.60.12kw24rpm49N.m16kg6430N4.1
KA37/TDR63MS449.790.12kw28rpm41N.m16kg6130N4.8
KA37/TDR63MS444.460.12kw31rpm37N.m16kg5930N5.4
KA37/TDR63MS437.970.12kw36rpm32N.m16kg5660N6.4
KA37/TDR63MS435.570.12kw39rpm30N.m16kg5550N6.8
KA37/TDR63MS429.960.12kw46rpm25N.m16kg5270N8
KA37/TDR63MS428.830.12kw48rpm24N.m16kg5200N8.4
KA37/TDR63MS424.990.12kw55rpm21N.m16kg4980N9.6
KA37/TDR63MS423.360.12kw59rpm19N.m16kg4880N10
KA37/TDR63MS420.190.12kw68rpm17N.m16kg4660N11
KA37/TDR63MS417.150.12kw80rpm14N.m16kg4430N13
KA37/TDR63MS415.310.12kw90rpm13N.m16kg4280N14
KA37/TDR63MS413.080.12kw105rpm11N.m16kg4070N15
KA37/TDR63MS412.140.12kw114rpm10N.m16kg3970N16

Ka37/tdrs63ms4 deviation motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KA37/TDRS63MS4106.380.12kw13rpm88N.m16kg6500N2.3
KA37/TDRS63MS497.810.12kw14rpm81N.m16kg6530N2.5
KA37/TDRS63MS483.690.12kw16rpm70N.m16kg6570N2.9
KA37/TDRS63MS472.540.12kw19rpm60N.m16kg6600N3.3
KA37/TDRS63MS467.80.12kw20rpm56N.m16kg6610N3.6
KA37/TDRS63MS458.60.12kw24rpm49N.m16kg6430N4.1
KA37/TDRS63MS449.790.12kw28rpm41N.m16kg6130N4.8
KA37/TDRS63MS444.460.12kw31rpm37N.m16kg5930N5.4
KA37/TDRS63MS437.970.12kw36rpm32N.m16kg5660N6.4
KA37/TDRS63MS435.570.12kw39rpm30N.m16kg5550N6.8
KA37/TDRS63MS429.960.12kw46rpm25N.m16kg5270N8
KA37/TDRS63MS428.830.12kw48rpm24N.m16kg5200N8.4
KA37/TDRS63MS424.990.12kw55rpm21N.m16kg4980N9.6
KA37/TDRS63MS423.360.12kw59rpm19N.m16kg4880N10
KA37/TDRS63MS420.190.12kw68rpm17N.m16kg4660N11
KA37/TDRS63MS417.150.12kw80rpm14N.m16kg4430N13
KA37/TDRS63MS415.310.12kw90rpm13N.m16kg4280N14
KA37/TDRS63MS413.080.12kw105rpm11N.m16kg4070N15
KA37/TDRS63MS412.140.12kw114rpm10N.m16kg3970N16

Ka37/tdr63ms4ing type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

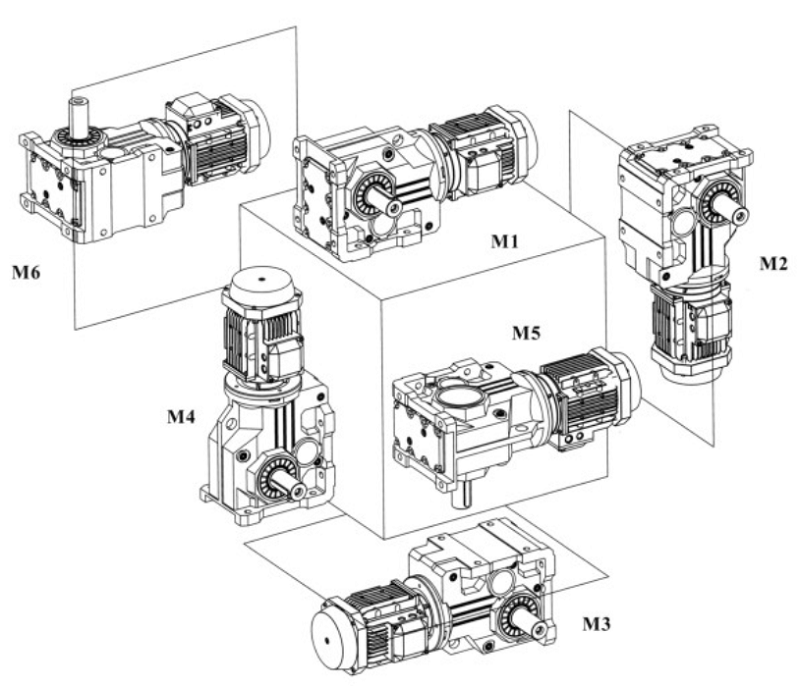

Motor-gear reducer.jpg

Ka37/tdr63ms4reducing motor installation size drawings



Ka37/tdr63ms4 show at reduction plant: see the factory three days in advance

Through-hole shaft reducerPresentation of application cases:


Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor

 KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox

KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW



标签:  45kw electric power to what extent the hollow brake  ka37/tdr63ms4 ka37/tdrs63ms4
tags： 45kw electric power to what extent the hollow brake    ka37/tdr63ms4   ka37/tdrs63ms4
