KA37/TDRN71D4Detailed Information

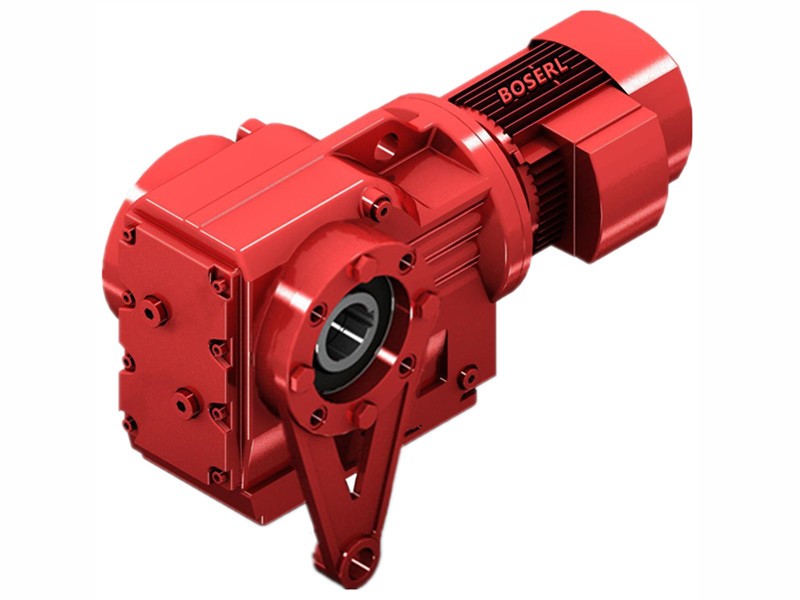

KA37/TDRN71D4
prevnext

KA37/TDRN71D4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 15 kw power with a diameter angle, medium axle reduction box_ka37/tdrn71d4_ka37/tdrn71ms4

KA37/TDRN71D4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KA37/TDRN71D458.60.55kw24rpm220N.m20kg4840N0.9
KA37/TDRN71D449.790.55kw28rpm190N.m20kg4780N1.05
KA37/TDRN71D444.460.55kw31rpm169N.m20kg4730N1.2
KA37/TDRN71D437.970.55kw36rpm144N.m20kg4630N1.4
KA37/TDRN71D435.570.55kw39rpm135N.m20kg4580N1.5
KA37/TDRN71D429.960.55kw46rpm114N.m20kg4460N1.75
KA37/TDRN71D428.830.55kw48rpm110N.m20kg4420N1.8
KA37/TDRN71D424.990.55kw55rpm95N.m20kg4310N2.1
KA37/TDRN71D423.360.55kw59rpm89N.m20kg4250N2.2
KA37/TDRN71D420.190.55kw68rpm77N.m20kg4120N2.4
KA37/TDRN71D417.150.55kw80rpm65N.m20kg3970N2.8
KA37/TDRN71D415.310.55kw90rpm58N.m20kg3860N3
KA37/TDRN71D413.080.55kw105rpm50N.m20kg3720N3.3
KA37/TDRN71D412.140.55kw114rpm46N.m20kg3650N3.5
KA37/TDRN71D410.490.55kw132rpm40N.m20kg3510N4
KA37/TDRN71D48.910.55kw155rpm34N.m20kg3360N4.7
KA37/TDRN71D47.96
0.55kw173rpm30N.m20kg3260N5.1
KA37/TDRN71D46.8
0.55kw203rpm26N.m20kg3120N5.8
KA37/TDRN71D46.370.55kw217rpm24N.m20kg3060N6
KA37/TDRN71D45.360.55kw257rpm20N.m20kg2910N6.9
KA37/TDRN71D43.980.55kw347rpm15N.m20kg2670N8.3

Ka37/tdrn71ms4reducing motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KA37/TDRN71MS458.60.55kw24rpm220N.m20kg4840N0.9
KA37/TDRN71MS449.790.55kw28rpm190N.m20kg4780N1.05
KA37/TDRN71MS444.460.55kw31rpm169N.m20kg4730N1.2
KA37/TDRN71MS437.970.55kw36rpm144N.m20kg4630N1.4
KA37/TDRN71MS435.570.55kw39rpm135N.m20kg4580N1.5
KA37/TDRN71MS429.960.55kw46rpm114N.m20kg4460N1.75
KA37/TDRN71MS428.830.55kw48rpm110N.m20kg4420N1.8
KA37/TDRN71MS424.990.55kw55rpm95N.m20kg4310N2.1
KA37/TDRN71MS423.360.55kw59rpm89N.m20kg4250N2.2
KA37/TDRN71MS420.190.55kw68rpm77N.m20kg4120N2.4
KA37/TDRN71MS417.150.55kw80rpm65N.m20kg3970N2.8
KA37/TDRN71MS415.310.55kw90rpm58N.m20kg3860N3
KA37/TDRN71MS413.080.55kw105rpm50N.m20kg3720N3.3
KA37/TDRN71MS412.140.55kw114rpm46N.m20kg3650N3.5
KA37/TDRN71MS410.490.55kw132rpm40N.m20kg3510N4
KA37/TDRN71MS48.910.55kw155rpm34N.m20kg3360N4.7
KA37/TDRN71MS47.96
0.55kw173rpm30N.m20kg3260N5.1
KA37/TDRN71MS46.8
0.55kw203rpm26N.m20kg3120N5.8
KA37/TDRN71MS46.370.55kw217rpm24N.m20kg3060N6
KA37/TDRN71MS45.360.55kw257rpm20N.m20kg2910N6.9
KA37/TDRN71MS43.980.55kw347rpm15N.m20kg2670N8.3

Ka37/tdrn71d4ing type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

Ka37/tdrn71d4 deviator motor installation size drawings



Ka37/tdrn71d4 showcasing plant: a three-day appointment at the factory

Double-out holereducing machinePresentation of application cases:


Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor

 KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox

KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW



标签:  The size of the 15kw electric power with a straight-angle mid-angle reduction box  ka37/tdrn71d4 ka37/tdrn71ms4
tags： The size of the 15kw electric power with a straight-angle mid-angle reduction box    ka37/tdrn71d4   ka37/tdrn71ms4
