KA57DRS100LS4Detailed Information

prevnext

KA57DRS100LS4

TEL：Email:[email protected]

详细信息

Keyword: drives 43 tons of load distribution machine reduction machine_ka57drs100ls4_ka57dt100l4

KA57DRS100LS4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA57DRS100LS4	30.28	3KW	46rpm	615N.m	49Kg	7180N	0.95
KA57DRS100LS4	27.34	3KW	51rpm	555N.m	49Kg	7190N	1.05
KA57DRS100LS4	24.05	3KW	58rpm	490N.m	49Kg	7180N	1.2
KA57DRS100LS4	22.71	3KW	62rpm	460N.m	49Kg	7160N	1.3
KA57DRS100LS4	19.34	3KW	72rpm	395N.m	49Kg	7080N	1.45
KA57DRS100LS4	17.57	3KW	80rpm	355N.m	49Kg	7020N	1.55
KA57DRS100LS4	15.22	3KW	92rpm	310N.m	49Kg	6890N	1.7
KA57DRS100LS4	13.25	3KW	106rpm	270N.m	49Kg	6750N	1.9
KA57DRS100LS4	11.92	3KW	117rpm	240N.m	49Kg	6420N	1.7
KA57DRS100LS4	11.26	3KW	124rpm	230N.m	49Kg	6360N	1.8
KA57DRS100LS4	9.59	3KW	146rpm	196N.m	49Kg	6200N	2.1
KA57DRS100LS4	8.71	3KW	161rpm	178N.m	49Kg	6090N	2.2
KA57DRS100LS4	7.55	3KW	186rpm	154N.m	49Kg	5920N	2.4
KA57DRS100LS4	6.57	3KW	213rpm	134N.m	49Kg	5750N	2.6
KA57DRS100LS4	4.69	3KW	298rpm	96N.m	49Kg	5320N	3.1

Ka57dt100l4 reduction motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA57DT100L4	30.28	3KW	46rpm	615N.m	49Kg	7180N	0.95
KA57DT100L4	27.34	3KW	51rpm	555N.m	49Kg	7190N	1.05
KA57DT100L4	24.05	3KW	58rpm	490N.m	49Kg	7180N	1.2
KA57DT100L4	22.71	3KW	62rpm	460N.m	49Kg	7160N	1.3
KA57DT100L4	19.34	3KW	72rpm	395N.m	49Kg	7080N	1.45
KA57DT100L4	17.57	3KW	80rpm	355N.m	49Kg	7020N	1.55
KA57DT100L4	15.22	3KW	92rpm	310N.m	49Kg	6890N	1.7
KA57DT100L4	13.25	3KW	106rpm	270N.m	49Kg	6750N	1.9
KA57DT100L4	11.92	3KW	117rpm	240N.m	49Kg	6420N	1.7
KA57DT100L4	11.26	3KW	124rpm	230N.m	49Kg	6360N	1.8
KA57DT100L4	9.59	3KW	146rpm	196N.m	49Kg	6200N	2.1
KA57DT100L4	8.71	3KW	161rpm	178N.m	49Kg	6090N	2.2
KA57DT100L4	7.55	3KW	186rpm	154N.m	49Kg	5920N	2.4
KA57DT100L4	6.57	3KW	213rpm	134N.m	49Kg	5750N	2.6
KA57DT100L4	4.69	3KW	298rpm	96N.m	49Kg	5320N	3.1

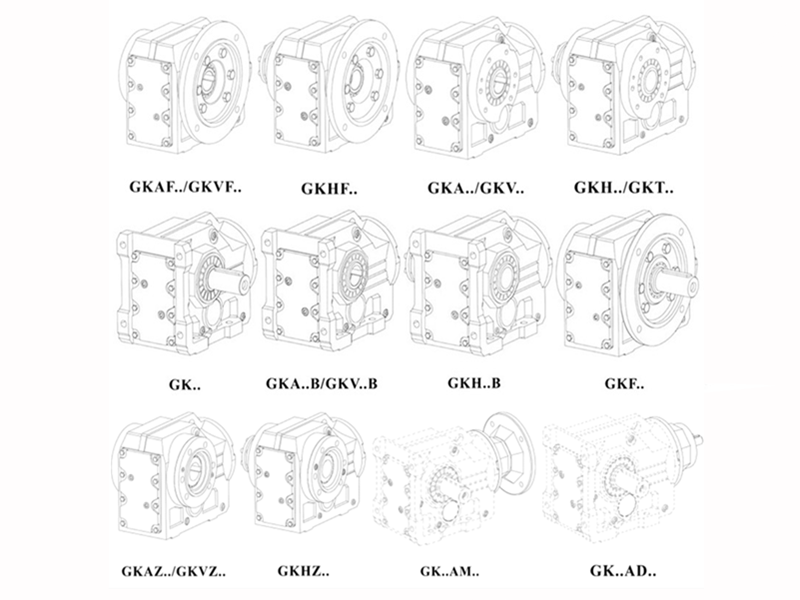

Ka57drs100ls4ing type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

Ka57drs100ls4reducing motors installed size drawings

Ka57drs100ls4 deviation plant show: three days in advance

Through-hole shaft reducerPresentation of application cases:

Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor

KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox

KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
