KA57R37DM80K4Detailed Information
Keywords: 7. 5 kw power power to what size of a hollowretarder_ka57r37dm80k4_ka57r37drrs63l4
KA57R37DM80K4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA57R37DM80K4 | 192 | 0.55KW | 7.20r/min | 655N.m | 50.5kg | 5460N | 0.90 |
| KA57R37DM80K4 | 166 | 0.55KW | 8.30r/min | 570N.m | 50.5kg | 7870N | 1.05 |
| KA57R37DM80K4 | 145 | 0.55KW | 9.60r/min | 500N.m | 50.5kg | 8420N | 1.20 |
| KA57R37DM80K4 | 129 | 0.55KW | 11.0r/min | 445N.m | 50.5kg | 8660N | 1.35 |
| KA57R37DM80K4 | 111 | 0.55KW | 12.0r/min | 380N.m | 50.5kg | 8960N | 1.55 |
| KA57R37DM80K4 | 97 | 0.55KW | 14.0r/min | 335N.m | 50.5kg | 9140N | 1.80 |
KA57R37DRS63L4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA57R37DRS63L4 | 544 | 0.18KW | 2.40r/min | 590N.m | 41.5kg | 7690N | 1.00 |
| KA57R37DRS63L4 | 473 | 0.18KW | 2.80r/min | 535N.m | 41.5kg | 8150N | 1.10 |
| KA57R37DRS63L4 | 421 | 0.18KW | 3.10r/min | 455N.m | 41.5kg | 8620N | 1.30 |
| KA57R37DRS63L4 | 362 | 0.18KW | 3.60r/min | 405N.m | 41.5kg | 8840N | 1.45 |
| KA57R37DRS63L4 | 319 | 0.18KW | 4.10r/min | 360N.m | 41.5kg | 9050N | 1.65 |
| KA57R37DRS63L4 | 280 | 0.18KW | 4.70r/min | 300N.m | 41.5kg | 9270N | 1.95 |
| KA57R37DRS63L4 | 246 | 0.18KW | 5.40r/min | 265N.m | 41.5kg | 9400N | 2.20 |
| KA57R37DRS63L4 | 215 | 0.18KW | 6.10r/min | 235N.m | 41.5kg | 9510N | 2.50 |
| KA57R37DRS63L4 | 192 | 0.18KW | 6.90r/min | 210N.m | 41.5kg | 9600N | 2.80 |
| KA57R37DRS63L4 | 166 | 0.18KW | 7.90r/min | 182N.m | 41.5kg | 9690N | 3.30 |
KA57R37DM80K4Speeding machine type:
K57r37dm80k4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka57br37dm80k bottom-foot hollow axis with tilt gears - umbrella gear-reducing power
Kv57br37dm80k4 foot larvae axis installed with tilt gears - umbrella gear reduction power
The kh57br37dm80k bottom foot axle locks with tilt gears.Right-angle shaft reducer motor
Frf57r37dm80k4b5 installation of tilt gear - umbrella gear-reducing power
Kaf57r37dm80k4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Frf57r37dm80k4b5 installation of tilt gear - umbrella gear-reducing power
Khf57r37dm80k4b5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka57r37dm80k4 hollow axle tilt gears - umbrella gear reduction power
Kv57r37dm80k4 space cores fitted with tilt gears - umbrella gear reduction power
Kh57r37dm80k4 sky axe locked tilt gear - umbrella gear deviation engine
The kt57r37dm80k4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz57r37dm80k4b14 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvz57r37dm80k4b14 flannel axles installation of tilt gears - umbrella gear reduction power
Khz57r37dm80k4b14 franium axial axle locks fitted with tilt gears - umbrella gear reduction power

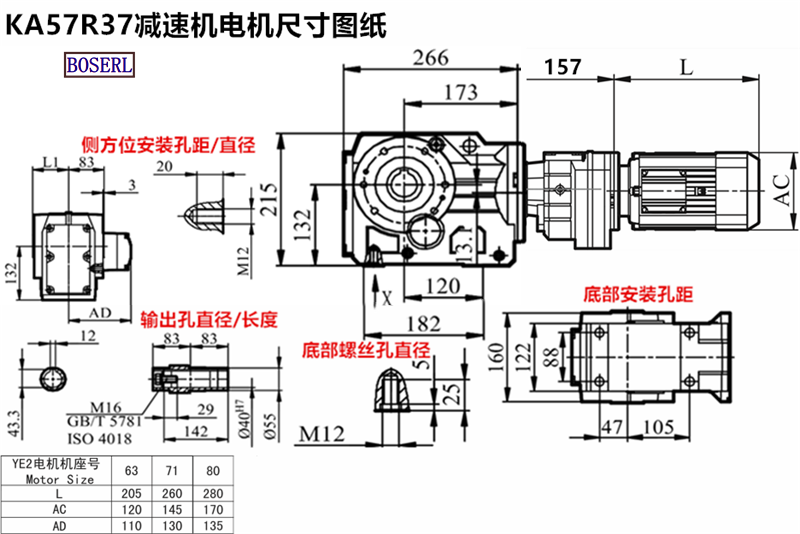

KA57R37DM80K4Induction Motor 3Ph motors installed size drawings
Ka57r37dm80k4 deviation power plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
