5. 5-kw power power power to what extent the cardiac decelerator _ka57r37dm80n4_boserl moving ka57r37drrs71ms4 production plant

KA57R37DM80N4Detailed Information

prevnext

KA57R37DM80N4

TEL：Email:[email protected]

详细信息

Keywords: 5. 5 kw power power to what size of a hollow retarder _ka57r37dm80n4_ka57r37drrs71ms4

KA57R37DM80N4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA57R37DM80N4	192	0.55KW	7.20r/min	655N.m	50.5kg	5460N	0.90
KA57R37DM80N4	166	0.55KW	8.30r/min	570N.m	50.5kg	7870N	1.05
KA57R37DM80N4	145	0.55KW	9.60r/min	500N.m	50.5kg	8420N	1.20
KA57R37DM80N4	129	0.55KW	11.0r/min	445N.m	50.5kg	8660N	1.35
KA57R37DM80N4	111	0.55KW	12.0r/min	380N.m	50.5kg	8960N	1.55
KA57R37DM80N4	97	0.55KW	14.0r/min	335N.m	50.5kg	9140N	1.80

KA57R37DRS71MS4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA57R37DRS71MS4	421	0.25KW	3.10r/min	665N.m	45.5kg	4200N	0.90
KA57R37DRS71MS4	362	0.25KW	3.60r/min	590N.m	45.5kg	7690N	1.00
KA57R37DRS71MS4	319	0.25KW	4.10r/min	520N.m	45.5kg	8260N	1.15
KA57R37DRS71MS4	280	0.25KW	4.60r/min	440N.m	45.5kg	8680N	1.35
KA57R37DRS71MS4	246	0.25KW	5.30r/min	390N.m	45.5kg	8920N	1.55
KA57R37DRS71MS4	215	0.25KW	6.00r/min	345N.m	45.5kg	9110N	1.75
KA57R37DRS71MS4	192	0.25KW	6.80r/min	305N.m	45.5kg	9260N	1.95
KA57R37DRS71MS4	166	0.25KW	7.80r/min	265N.m	45.5kg	9410N	2.30
KA57R37DRS71MS4	145	0.25KW	9.00r/min	230N.m	45.5kg	9530N	2.60
KA57R37DRS71MS4	129	0.25KW	10.0r/min	210N.m	45.5kg	9600N	2.80
KA57R37DRS71MS4	111	0.25KW	12.0r/min	178N.m	45.5kg	9700N	3.40
KA57R37DRS71MS4	97	0.25KW	13.0r/min	156N.m	45.5kg	9770N	3.80

KA57R37DM80N4Speeding machine type:

K57r37dm80n4 bottom foot is equipped with tilt gears - umbrella gear reduction power

Ka57br37dm80n4 foot hollow axis is equipped with tilt gears - umbrella gear-reducing power

The kv57br37dm80n4 foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor

Kh57br37dm80n4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor

Frf57r37dm80n4b5 installation of tilt gears - umbrella gear reduction power

Kaf57r37dm80n4b5 french aerocentric axis with tilt gears - an umbrella gear-reducing power plant

Kvf57r37dm80n4b5francocardiograms installed with tilt gears - umbrella gear reduction power

Khf57r37dm80n4b5 french axial axle locks fitted with tilt gears - umbrella gear-reducing power

Ka57r37dm80n4 hollow axial tilt gears - an umbrella gear reduction power

The kv57r37dm80n4 space cores are equipped with tilt gears - umbrella gear reduction power

Kh57r37dm80n4 empty axle locks slashing gears - umbrella gear deceleration power

Installation of tilt gears on kt57r37dm80n4 hollow axle - umbrella gear reduction power

Kaz57r37dm80n4b14 installation of tilt gear - umbrella gear reduction power

Kvz57r37dm80n4b14 platinum core cavity axles with tilt gears - umbrella gear-reducing power

Khz57r37dm80n4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

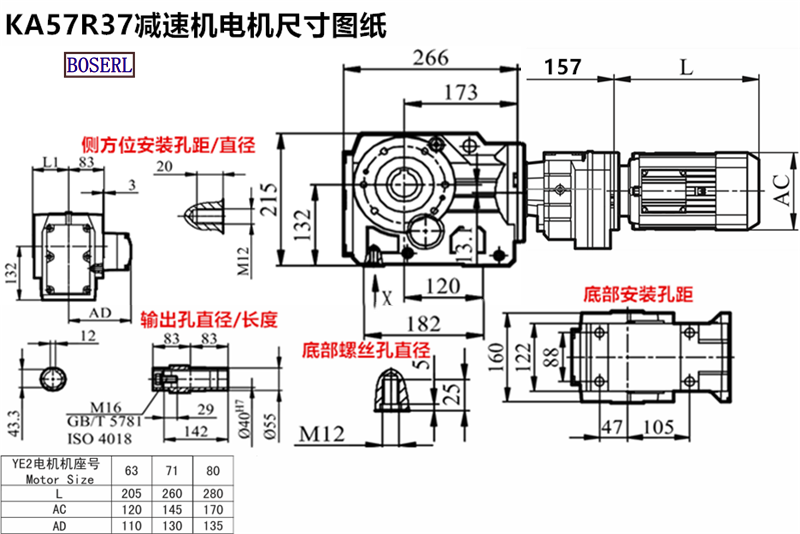

KA57R37DM80N4Induction Motor 3Ph motors installed size drawings

Ka57r37dm80n4 deviation power plant, three days' appointmentThrough-hole shaft reducer

Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor

KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox

KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW

标签: 5. 5 kw power power with hollow speed retardation ka57r37dm80n4 ka57r37drrs71ms4

上一条KA57R37DR63MS4
下一条KA57R37DV80MK4

Documentation related to this product / Related DownLoad

Product Document Name	Click to download
KA57R37DM80N4减速机样本
KA57R37DM80N4减速机三维图纸
