KA57R37DT71M4Detailed Information

prevnext

KA57R37DT71M4

TEL：Email:[email protected]

详细信息

Keywords: 18. 5 kw power power to what extent the hollowreducing machine_ka57r37dt71m4_ka57r37dr63m4

KA57R37DT71M4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA57R37DT71M4	280	0.37KW	4.90r/min	630N.m	46kg	7350N	0.95
KA57R37DT71M4	246	0.37KW	5.60r/min	555N.m	46kg	7980N	1.10
KA57R37DT71M4	215	0.37KW	6.40r/min	490N.m	46kg	8460N	1.20
KA57R37DT71M4	192	0.37KW	7.20r/min	435N.m	46kg	8720N	1.40
KA57R37DT71M4	166	0.37KW	8.30r/min	375N.m	46kg	8980N	1.60
KA57R37DT71M4	129	0.37KW	11.0r/min	295N.m	46kg	9290N	2.00
KA57R37DT71M4	111	0.37KW	12.0r/min	250N.m	46kg	9460N	2.40
KA57R37DT71M4	97	0.37KW	14.0r/min	220N.m	46kg	9560N	2.70

KA57R37DR63M4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA57R37DR63M4	906	0.12KW	1.50r/min	605N.m	41kg	7580N	1.00
KA57R37DR63M4	806	0.12KW	1.70r/min	545N.m	41kg	8060N	1.10
KA57R37DR63M4	699	0.12KW	2.00r/min	455N.m	41kg	8620N	1.30
KA57R37DR63M4	615	0.12KW	2.20r/min	400N.m	41kg	8870N	1.50
KA57R37DR63M4	544	0.12KW	2.50r/min	350N.m	41kg	9080N	1.70
KA57R37DR63M4	473	0.12KW	2.90r/min	320N.m	41kg	9190N	1.85
KA57R37DR63M4	421	0.12KW	3.30r/min	270N.m	41kg	9390N	2.20
KA57R37DR63M4	362	0.12KW	3.80r/min	245N.m	41kg	9470N	2.40
KA57R37DR63M4	319	0.12KW	4.30r/min	215N.m	41kg	9570N	2.80
KA57R37DR63M4	280	0.12KW	4.90r/min	181N.m	41kg	9690N	3.30
KA57R37DR63M4	246	0.12KW	5.60r/min	160N.m	41kg	9760N	3.80
KA57R37DR63M4	215	0.12KW	6.40r/min	141N.m	41kg	9810N	4.30
KA57R37DR63M4	192	0.12KW	7.20r/min	126N.m	41kg	9850N	4.80

KA57R37DT71M4Speeding machine type:

K57r37dt71m4 bottom foot is fitted with tilt gears - umbrella gear reduction power

Ka57br37dt71m4 foot hollow axis with tilt gears - umbrella gear reduction power

The kv57br37dt71m4 foot larvae axis is equipped with tilt gears - umbrella gear-reducing power

Kh57br37dt71m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor

Frf57r37dt71m4b5 installation of tilt gear - umbrella gear deceleration power

Kaf57r37dt71m4b5 french aerocentric axes fitted with tilt gears - umbrella gear reduction power

Kvf57r37dt71m4b5franco-axis installation of tilt gears - umbrella gear-reducing power

Khf57r37dt71m4b5farland axial axle locks fitted with tilt gears - umbrella gear-reducing power

Ka57r37dt71m4 hollow axle tilt gears - an umbrella gear reduction power

Kv57r37dt71m4 spaced axles with tilt gears - umbrella gear-reducing power

Kh57r37dt71m4 sky axe locked tilt gear - umbrella gear deviation engine

Kt57r37dt71m4 hollow axle is fitted with tilt gears - umbrella gear reduction power

Kaz57r37dt71m4b14 installation of tilt gear - umbrella gear reduction power

Kvz57r37dt71m4b14 installation of tilt gear - umbrella gear deviation power

Khz57r37dt71m4b14 franium axle locks fitted with tilt gears - umbrella gear-reducing power

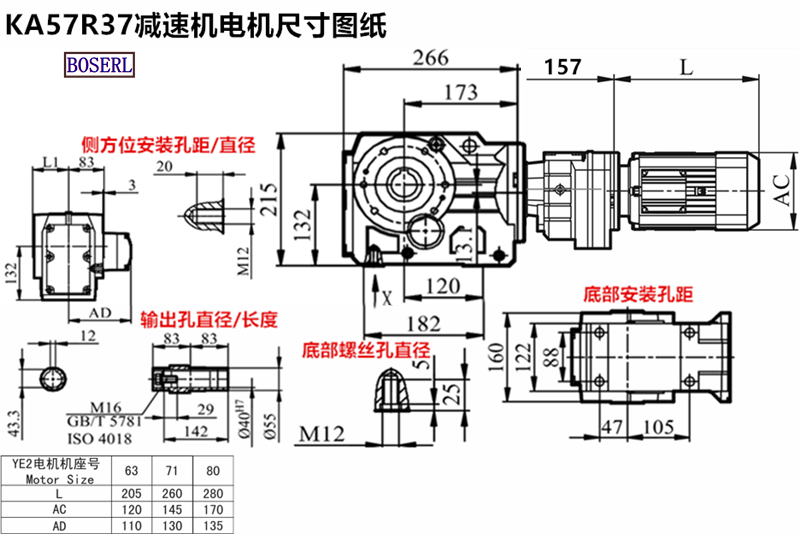

KA57R37DT71M4Induction Motor 3Ph motors installed size drawings

Ka57r37dt71m4 deviation power plant. please make an appointment three days in advanceThrough-hole shaft reducer

Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor

KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox

KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
