KA57R37DT80K4Detailed Information
Keywords: 2. 2kw power power to what size of hollowretarder_ka57r37dt80k4_ka57r37dre63l4
KA57R37DT80K4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA57R37DT80K4 | 192 | 0.55KW | 7.20r/min | 655N.m | 50.5kg | 5460N | 0.90 |
| KA57R37DT80K4 | 166 | 0.55KW | 8.30r/min | 570N.m | 50.5kg | 7870N | 1.05 |
| KA57R37DT80K4 | 145 | 0.55KW | 9.60r/min | 500N.m | 50.5kg | 8420N | 1.20 |
| KA57R37DT80K4 | 129 | 0.55KW | 11.0r/min | 445N.m | 50.5kg | 8660N | 1.35 |
| KA57R37DT80K4 | 111 | 0.55KW | 12.0r/min | 380N.m | 50.5kg | 8960N | 1.55 |
| KA57R37DT80K4 | 97 | 0.55KW | 14.0r/min | 335N.m | 50.5kg | 9140N | 1.80 |
KA57R37DRE63L4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA57R37DRE63L4 | 544 | 0.18KW | 2.40r/min | 590N.m | 41.5kg | 7690N | 1.00 |
| KA57R37DRE63L4 | 473 | 0.18KW | 2.80r/min | 535N.m | 41.5kg | 8150N | 1.10 |
| KA57R37DRE63L4 | 421 | 0.18KW | 3.10r/min | 455N.m | 41.5kg | 8620N | 1.30 |
| KA57R37DRE63L4 | 362 | 0.18KW | 3.60r/min | 405N.m | 41.5kg | 8840N | 1.45 |
| KA57R37DRE63L4 | 319 | 0.18KW | 4.10r/min | 360N.m | 41.5kg | 9050N | 1.65 |
| KA57R37DRE63L4 | 280 | 0.18KW | 4.70r/min | 300N.m | 41.5kg | 9270N | 1.95 |
| KA57R37DRE63L4 | 246 | 0.18KW | 5.40r/min | 265N.m | 41.5kg | 9400N | 2.20 |
| KA57R37DRE63L4 | 215 | 0.18KW | 6.10r/min | 235N.m | 41.5kg | 9510N | 2.50 |
| KA57R37DRE63L4 | 192 | 0.18KW | 6.90r/min | 210N.m | 41.5kg | 9600N | 2.80 |
| KA57R37DRE63L4 | 166 | 0.18KW | 7.90r/min | 182N.m | 41.5kg | 9690N | 3.30 |
KA57R37DT80K4Speeding machine type:
K57r37dt80k4 bottom foot installation of tilt gear - umbrella gear deviation power
Ka57br37dt80k bottom foot hollow axle is equipped with tilt gears - umbrella gear reduction power
The kv57br37dt80k bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh57br37dt80k bottom-foot hollow-axis locks with tilt gears.Right-angle shaft reducer motor
Frf57r37dt80k4b5 installation of tilt gears - umbrella gear reduction power
Kaf57r37dt80k4b5 french aerocentric axis with tilt gears - an umbrella gear-reducing power plant
Frf57r37dt80k4b5 installation of tilt gears - umbrella gear reduction power
Khf57r37dt80k4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka57r37dt80k4 hollow axle tilt gears - an umbrella gear-reducing power plant
Kv57r37dt80k4 spaced axles with tilt gears - umbrella gear reduction power
Kh57r37dt80k4 empty axle locks slashing gears - umbrella gear reduction power
The kt57r37dt80k4 hollow axle is equipped with tilt gears - an umbrella gear reduction power
Kaz57r37dt80k4b14 french aerocentric axle is equipped with tilt gears - umbrella gear-reducing motors
Kvz57r37dt80k4b14 franco-axis installation of tilt gear - umbrella gear deviation engine
Khz57r37dt80k4b14farland axle locks with tilt gears - an umbrella gear-reducing motor

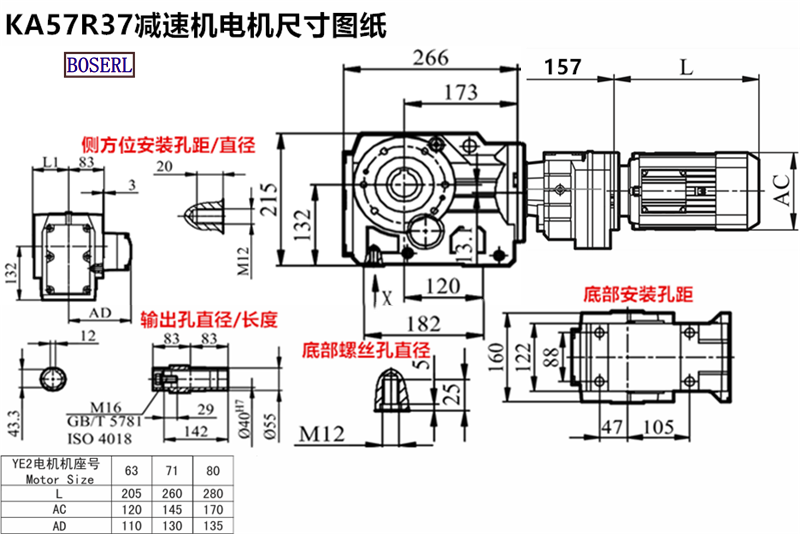

KA57R37DT80K4Induction Motor 3Ph motors installed size drawings
Ka57r37dt80k4 deviation power plant, three days' advance appointmentThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
