How big a 3kw power can be with a carnival decelerator

KA57R37DT80MK4Detailed Information

prevnext

KA57R37DT80MK4

TEL：Email:[email protected]

详细信息

Keyword: how much 3kw power can be used for a carnival decelerator_ka57r37dt80mk4_ka57r37dre63ms4

KA57R37DT80MK4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA57R37DT80MK4	192	0.55KW	7.20r/min	655N.m	50.5kg	5460N	0.90
KA57R37DT80MK4	166	0.55KW	8.30r/min	570N.m	50.5kg	7870N	1.05
KA57R37DT80MK4	145	0.55KW	9.60r/min	500N.m	50.5kg	8420N	1.20
KA57R37DT80MK4	129	0.55KW	11.0r/min	445N.m	50.5kg	8660N	1.35
KA57R37DT80MK4	111	0.55KW	12.0r/min	380N.m	50.5kg	8960N	1.55
KA57R37DT80MK4	97	0.55KW	14.0r/min	335N.m	50.5kg	9140N	1.80

KA57R37DRE63MS4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA57R37DRE63MS4	906	0.12KW	1.50r/min	605N.m	41kg	7580N	1.00
KA57R37DRE63MS4	806	0.12KW	1.70r/min	545N.m	41kg	8060N	1.10
KA57R37DRE63MS4	699	0.12KW	2.00r/min	455N.m	41kg	8620N	1.30
KA57R37DRE63MS4	615	0.12KW	2.20r/min	400N.m	41kg	8870N	1.50
KA57R37DRE63MS4	544	0.12KW	2.50r/min	350N.m	41kg	9080N	1.70
KA57R37DRE63MS4	473	0.12KW	2.90r/min	320N.m	41kg	9190N	1.85
KA57R37DRE63MS4	421	0.12KW	3.30r/min	270N.m	41kg	9390N	2.20
KA57R37DRE63MS4	362	0.12KW	3.80r/min	245N.m	41kg	9470N	2.40
KA57R37DRE63MS4	319	0.12KW	4.30r/min	215N.m	41kg	9570N	2.80
KA57R37DRE63MS4	280	0.12KW	4.90r/min	181N.m	41kg	9690N	3.30
KA57R37DRE63MS4	246	0.12KW	5.60r/min	160N.m	41kg	9760N	3.80
KA57R37DRE63MS4	215	0.12KW	6.40r/min	141N.m	41kg	9810N	4.30
KA57R37DRE63MS4	192	0.12KW	7.20r/min	126N.m	41kg	9850N	4.80

KA57R37DT80MK4Speeding machine type:

K57r37dt80mk4 bottom foot installation of tilt gear - umbrella gear deviation engine

Ka57br37dt80mk 4 foot hollow axis with tilt gears - umbrella gear reduction power

Kv57br37dt80mk4 bottom feet casket axis installed with tilt gears - umbrella gear-reducing motors

Kh57br37dt80mk 4-federation axle locks with tilt gear.Right-angle shaft reducer motor

Frf57r37dt80mk4b5 installation of tilt gear - umbrella gear reduction power

Kaf57r37dt80mk4b5 installation of tilt gears - umbrella gear reduction power

Kvf57r37dt80mk4b5franco-axis installation of tilt gear - umbrella gear-reducing power

Khf57r37dt80mk4b5 franium axle locks fitted with tilt gears - umbrella gear-reducing power

Ka57r37dt80mk4 hollow axle tilt gears - an umbrella gear deceleration power

Kv57r37dt80mk4 space cores fitted with tilt gears - umbrella gear reduction power

Kh57r37dt80mk4 empty axle locks slashing gears - umbrella gear reduction power

The kt57r37dt80mk4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant

Kaz57r37dt80mk4b14 installation of tilt gear - umbrella gear reduction power

Installation of tilt gears - an umbrella gear deviation engine on the franze space axis

Dhz57r37dt80mk4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

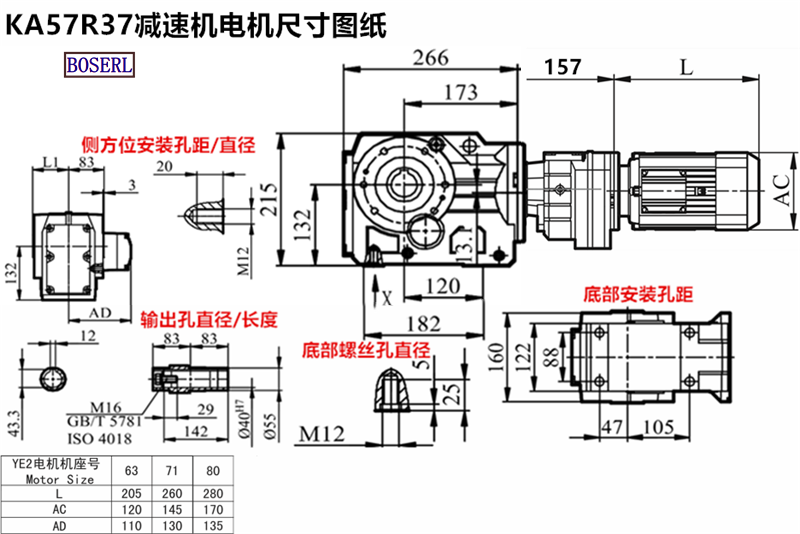

KA57R37DT80MK4Induction Motor 3Ph motors installed size drawings

Ka57r37dt80mk4 deviation power plant, three days in advanceThrough-hole shaft reducer

Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor

KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox

KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW

标签: How big a 3kw power can be with a carnival decelerator ka57r37dt80mk4kka57r37dr63ms4

tags： How big a 3kw power can be with a carnival decelerator ka57r37dt80mk4kka57r37dr63ms4
