KA57R37DV80MK4Detailed Information
Keyword: how much kw power does it have
KA57R37DV80MK4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA57R37DV80MK4 | 192 | 0.55KW | 7.20r/min | 655N.m | 50.5kg | 5460N | 0.90 |
| KA57R37DV80MK4 | 166 | 0.55KW | 8.30r/min | 570N.m | 50.5kg | 7870N | 1.05 |
| KA57R37DV80MK4 | 145 | 0.55KW | 9.60r/min | 500N.m | 50.5kg | 8420N | 1.20 |
| KA57R37DV80MK4 | 129 | 0.55KW | 11.0r/min | 445N.m | 50.5kg | 8660N | 1.35 |
| KA57R37DV80MK4 | 111 | 0.55KW | 12.0r/min | 380N.m | 50.5kg | 8960N | 1.55 |
| KA57R37DV80MK4 | 97 | 0.55KW | 14.0r/min | 335N.m | 50.5kg | 9140N | 1.80 |
KA57R37DRN71D4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA57R37DRN71D4 | 280 | 0.37KW | 4.90r/min | 630N.m | 46kg | 7350N | 0.95 |
| KA57R37DRN71D4 | 246 | 0.37KW | 5.60r/min | 555N.m | 46kg | 7980N | 1.10 |
| KA57R37DRN71D4 | 215 | 0.37KW | 6.40r/min | 490N.m | 46kg | 8460N | 1.20 |
| KA57R37DRN71D4 | 192 | 0.37KW | 7.20r/min | 435N.m | 46kg | 8720N | 1.40 |
| KA57R37DRN71D4 | 166 | 0.37KW | 8.30r/min | 375N.m | 46kg | 8980N | 1.60 |
| KA57R37DRN71D4 | 129 | 0.37KW | 11.0r/min | 295N.m | 46kg | 9290N | 2.00 |
| KA57R37DRN71D4 | 111 | 0.37KW | 12.0r/min | 250N.m | 46kg | 9460N | 2.40 |
| KA57R37DRN71D4 | 97 | 0.37KW | 14.0r/min | 220N.m | 46kg | 9560N | 2.70 |
KA57R37DV80MK4Speeding machine type:
K57r37dv80mk4 foot is equipped with tilt gears - umbrella gear reduction power
Ka57br37dv80mk4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv57br37dv80mk4 bottom feet axis installation of tilt gear - umbrella gear deviation engine
Kh57br37dv80mk4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf57r37dv80mk4b5 is equipped with tilt gears - an umbrella gear decelerator
Kaf57r37dv80mk4b5farland air heart axis installation of tilt gear - umbrella gear deviation engine
Frf57r37dv80mk4b5 installation of tilt gear - umbrella gear-reducing power
Khf57r37dv80mk4b5farland axle locks with tilt gears - umbrella gear-reducing power
Ka57r37dv80mk4 hollow axle tilt gears - an umbrella gear deceleration power plant
Kv57r37dv80mk4 spaced axles with tilt gears - umbrella gear reduction power
Kh57r37dv80mk4 hollow axle locks slashing gears - umbrella gear reduction power
Kt57r37dv80mk4 empty axle is equipped with tilt gears - umbrella gear reduction power
Kaz57r37dv80mk4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - an umbrella gear-reducing power plant - on the flannel axle with an empty heart
Dhz57r37dv80mk4b14 franium axle locks fitted with tilt gears - umbrella gear reduction power

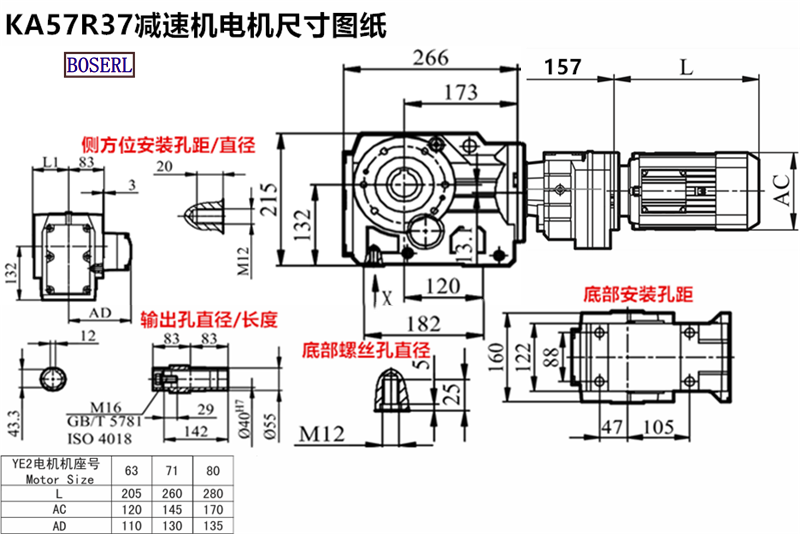

KA57R37DV80MK4Induction Motor 3Ph motors installed size drawings
Ka57r37dv80mk4 deviation power plantThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
