KA57R37DV80S4Detailed Information
Keyword: how much kw power does it have
KA57R37DV80S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA57R37DV80S4 | 192 | 0.55KW | 7.20r/min | 655N.m | 50.5kg | 5460N | 0.90 |
| KA57R37DV80S4 | 166 | 0.55KW | 8.30r/min | 570N.m | 50.5kg | 7870N | 1.05 |
| KA57R37DV80S4 | 145 | 0.55KW | 9.60r/min | 500N.m | 50.5kg | 8420N | 1.20 |
| KA57R37DV80S4 | 129 | 0.55KW | 11.0r/min | 445N.m | 50.5kg | 8660N | 1.35 |
| KA57R37DV80S4 | 111 | 0.55KW | 12.0r/min | 380N.m | 50.5kg | 8960N | 1.55 |
| KA57R37DV80S4 | 97 | 0.55KW | 14.0r/min | 335N.m | 50.5kg | 9140N | 1.80 |
KA57R37DRN63S4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA57R37DRN63S4 | 906 | 0.12KW | 1.50r/min | 605N.m | 41kg | 7580N | 1.00 |
| KA57R37DRN63S4 | 806 | 0.12KW | 1.70r/min | 545N.m | 41kg | 8060N | 1.10 |
| KA57R37DRN63S4 | 699 | 0.12KW | 2.00r/min | 455N.m | 41kg | 8620N | 1.30 |
| KA57R37DRN63S4 | 615 | 0.12KW | 2.20r/min | 400N.m | 41kg | 8870N | 1.50 |
| KA57R37DRN63S4 | 544 | 0.12KW | 2.50r/min | 350N.m | 41kg | 9080N | 1.70 |
| KA57R37DRN63S4 | 473 | 0.12KW | 2.90r/min | 320N.m | 41kg | 9190N | 1.85 |
| KA57R37DRN63S4 | 421 | 0.12KW | 3.30r/min | 270N.m | 41kg | 9390N | 2.20 |
| KA57R37DRN63S4 | 362 | 0.12KW | 3.80r/min | 245N.m | 41kg | 9470N | 2.40 |
| KA57R37DRN63S4 | 319 | 0.12KW | 4.30r/min | 215N.m | 41kg | 9570N | 2.80 |
| KA57R37DRN63S4 | 280 | 0.12KW | 4.90r/min | 181N.m | 41kg | 9690N | 3.30 |
| KA57R37DRN63S4 | 246 | 0.12KW | 5.60r/min | 160N.m | 41kg | 9760N | 3.80 |
| KA57R37DRN63S4 | 215 | 0.12KW | 6.40r/min | 141N.m | 41kg | 9810N | 4.30 |
| KA57R37DRN63S4 | 192 | 0.12KW | 7.20r/min | 126N.m | 41kg | 9850N | 4.80 |
KA57R37DV80S4Speeding machine type:
K57r37dv80s4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka57br37dv80s4 foot hollow axis is equipped with tilt gears - umbrella gear reduction power
The kv57br37dv80s4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh57br37dv80s 4-federation hollow axle locker with tilt gear.Right-angle shaft reducer motor
Frf57r37dv80s4b5 installation of tilt gear - umbrella gear-reducing power
Kaf57r37dv80s4b5farland aerocentric axis is equipped with tilt gears - umbrella gear reduction power
Kvf57r37dv80s4b5franco-axis installation of tilt gear - umbrella gear deviation engine
Khf57r37dv80s4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka57r37dv80s4 hollow axle tilt gears - umbrella gear deceleration power
Kv57r37dv80s4 space cores fitted with tilt gears - umbrella gear reduction power
Kh57r37dv80s4 empty axle lock slashing gears - umbrella gear reduction power
The kt57r37dv80s4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz57r37dv80s4b14 installation of tilt gear - umbrella gear reduction power
Kvz57r37dv80s4b14franco-axis installation of tilt gear - umbrella gear deviation engine
Khz57r37dv80s4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

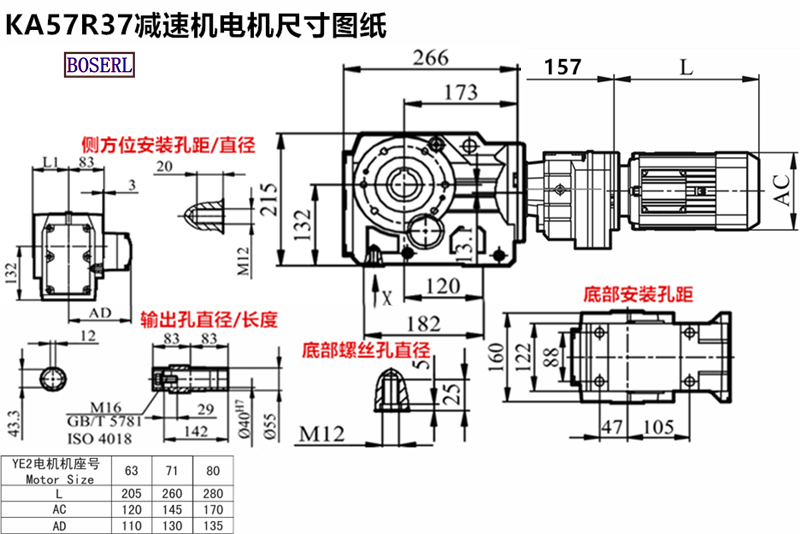

KA57R37DV80S4Induction Motor 3Ph motors installed size drawings
Ka57r37dv80s4 deviation electric power plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
