KA67DM100L4Detailed Information

prevnext

KA67DM100L4

TEL：Email:[email protected]

详细信息

Keywords: 46 tonnes loaderretarder_ka67dm100l4_ka67dm100lc4

KA67DM100L4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA67DM100L4	44.32	3KW	32rpm	900N.m	55Kg	9450N	0.9
KA67DM100L4	38.39	3KW	36rpm	785N.m	55Kg	10600N	1
KA67DM100L4	35.62	3KW	39rpm	725N.m	55Kg	11100N	1.15
KA67DM100L4	30.22	3KW	46rpm	615N.m	55Kg	11800N	1.35
KA67DM100L4	27.28	3KW	51rpm	555N.m	55Kg	12100N	1.45
KA67DM100L4	24	3KW	58rpm	490N.m	55Kg	12400N	1.65
KA67DM100L4	22.66	3KW	62rpm	460N.m	55Kg	12600N	1.7
KA67DM100L4	19.3	3KW	73rpm	390N.m	55Kg	12800N	1.95
KA67DM100L4	17.54	3KW	80rpm	355N.m	55Kg	13000N	2.1
KA67DM100L4	15.19	3KW	90rpm	310N.m	55Kg	13000N	2.2
KA67DM100L4	13.22	3KW	106rpm	270N.m	55Kg	13000N	2.5
KA67DM100L4	12.48	3KW	112rpm	255N.m	55Kg	13000N	2.1
KA67DM100L4	10.63	3KW	132rpm	215N.m	55Kg	13000N	2.3
KA67DM100L4	9.66	3KW	145rpm	198N.m	55Kg	13000N	2.4

Ka67dm100lc4reducing motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA67DM100LC4	44.32	3KW	32rpm	900N.m	55Kg	9450N	0.9
KA67DM100LC4	38.39	3KW	36rpm	785N.m	55Kg	10600N	1
KA67DM100LC4	35.62	3KW	39rpm	725N.m	55Kg	11100N	1.15
KA67DM100LC4	30.22	3KW	46rpm	615N.m	55Kg	11800N	1.35
KA67DM100LC4	27.28	3KW	51rpm	555N.m	55Kg	12100N	1.45
KA67DM100LC4	24	3KW	58rpm	490N.m	55Kg	12400N	1.65
KA67DM100LC4	22.66	3KW	62rpm	460N.m	55Kg	12600N	1.7
KA67DM100LC4	19.3	3KW	73rpm	390N.m	55Kg	12800N	1.95
KA67DM100LC4	17.54	3KW	80rpm	355N.m	55Kg	13000N	2.1
KA67DM100LC4	15.19	3KW	90rpm	310N.m	55Kg	13000N	2.2
KA67DM100LC4	13.22	3KW	106rpm	270N.m	55Kg	13000N	2.5
KA67DM100LC4	12.48	3KW	112rpm	255N.m	55Kg	13000N	2.1
KA67DM100LC4	10.63	3KW	132rpm	215N.m	55Kg	13000N	2.3
KA67DM100LC4	9.66	3KW	145rpm	198N.m	55Kg	13000N	2.4

Ka67dm100l4ing type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

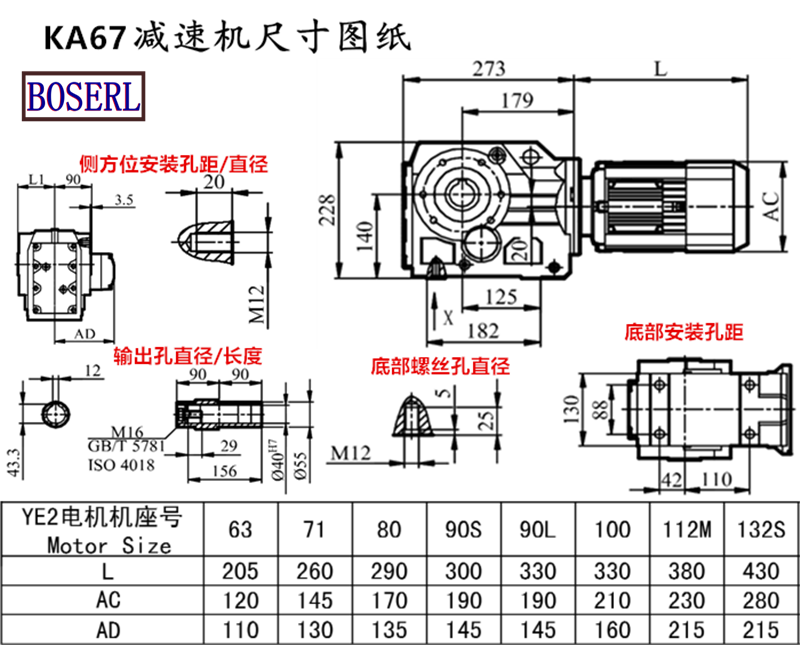

Ka67dm100l4reducing motors installed size drawings

Ka67dm100l4 showcasing plant: a three-day appointment at the factory

Through-hole shaft reducerPresentation of application cases:

Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor

KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox

KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
