KA67/TDRN112M4Detailed Information

prevnext

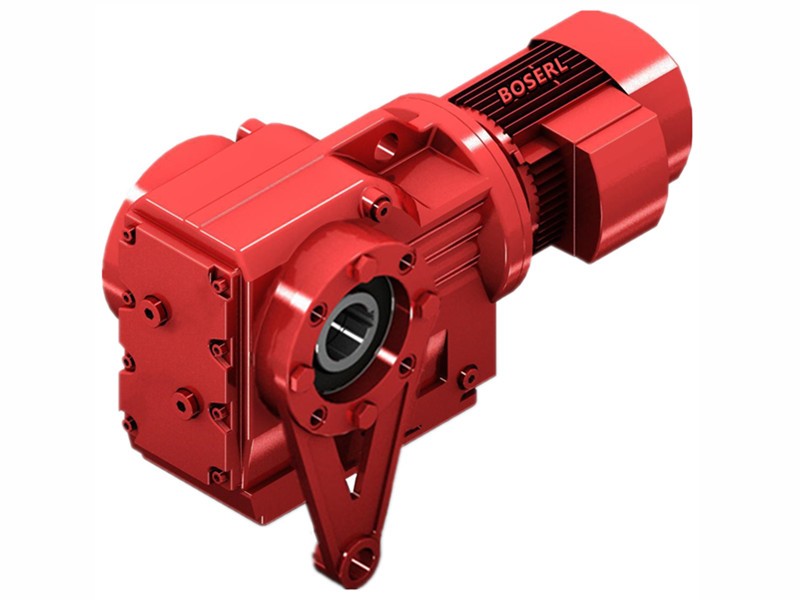

KA67/TDRN112M4

TEL：Email:[email protected]

详细信息

Keyword: the size of the 200kw electric power with a cone gear reduction box_ka67/tdrn112m4_ka67/tdv112m4

KA67/TDRN112M4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA67/TDRN112M4	30.22	4KW	48rpm	800N.m	70Kg	10500N	1
KA67/TDRN112M4	27.28	4KW	53rpm	725N.m	70Kg	11100N	1.15
KA67/TDRN112M4	24	4KW	60rpm	640N.m	70Kg	11700N	1.25
KA67/TDRN112M4	22.66	4KW	63rpm	605N.m	70Kg	11900N	1.3
KA67/TDRN112M4	19.3	4KW	74rpm	515N.m	70Kg	12300N	1.5
KA67/TDRN112M4	17.54	4KW	82rpm	465N.m	70Kg	12600N	1.6
KA67/TDRN112M4	15.19	4KW	95rpm	405N.m	70Kg	12800N	1.75
KA67/TDRN112M4	13.22	4KW	109rpm	350N.m	70Kg	13000N	1.9
KA67/TDRN112M4	12.48	4KW	115rpm	330N.m	70Kg	13000N	1.6
KA67/TDRN112M4	10.63	4KW	135rpm	285N.m	70Kg	13000N	1.75
KA67/TDRN112M4	9.66	4KW	149rpm	255N.m	70Kg	12900N	1.85
KA67/TDRN112M4	8.37	4KW	172rpm	225N.m	70Kg	12500N	2
KA67/TDRN112M4	7.28	4KW	197rpm	194N.m	70Kg	12100N	2.2
KA67/TDRN112M4	5.2	4KW	276rpm	138N.m	70Kg	11200N	2.5

KA67/TDV112M4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA67/TDV112M4	30.22	4KW	48rpm	800N.m	70Kg	10500N	1
KA67/TDV112M4	27.28	4KW	53rpm	725N.m	70Kg	11100N	1.15
KA67/TDV112M4	24	4KW	60rpm	640N.m	70Kg	11700N	1.25
KA67/TDV112M4	22.66	4KW	63rpm	605N.m	70Kg	11900N	1.3
KA67/TDV112M4	19.3	4KW	74rpm	515N.m	70Kg	12300N	1.5
KA67/TDV112M4	17.54	4KW	82rpm	465N.m	70Kg	12600N	1.6
KA67/TDV112M4	15.19	4KW	95rpm	405N.m	70Kg	12800N	1.75
KA67/TDV112M4	13.22	4KW	109rpm	350N.m	70Kg	13000N	1.9
KA67/TDV112M4	12.48	4KW	115rpm	330N.m	70Kg	13000N	1.6
KA67/TDV112M4	10.63	4KW	135rpm	285N.m	70Kg	13000N	1.75
KA67/TDV112M4	9.66	4KW	149rpm	255N.m	70Kg	12900N	1.85
KA67/TDV112M4	8.37	4KW	172rpm	225N.m	70Kg	12500N	2
KA67/TDV112M4	7.28	4KW	197rpm	194N.m	70Kg	12100N	2.2
KA67/TDV112M4	5.2	4KW	276rpm	138N.m	70Kg	11200N	2.5

KA67/TDRN112M4Speeding machine type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

KA67/TDRN112M4Induction Motor 3Ph motors installed size drawings

KA67/TDRN112M4At thereducing plant: three days in advance

Through-hole shaft reducerPresentation of application cases:

Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor

KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox

KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
