Ka77 motor speed retarder

TEL：Email:[email protected]

详细信息

Keyword: ka77 motor decelerator _ka77y90m4_ka77y100m4_ka77 retardor _ka77 motor decelerator manufacturer _ka77 motor decelerator manufacturer

KA77Y90M4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA77Y90M4	113.56	2.2KW	12rpm	1700N.m	75Kg	14200N	0.9
KA77Y90M4	97.05	2.2KW	14rpm	1450N.m	75Kg	16000N	1.05
KA77Y90M4	88.97	2.2KW	16rpm	1330N.m	75Kg	16700N	1.15
KA77Y90M4	78.07	2.2KW	18rpm	1170N.m	75Kg	17600N	1.3
KA77Y90M4	73.99	2.2KW	19rpm	1110N.m	75Kg	17900N	1.4
KA77Y90M4	64.75	2.2KW	22rpm	970N.m	75Kg	18400N	1.6
KA77Y90M4	58.34	2.2KW	24rpm	870N.m	75Kg	18800N	1.75
KA77Y90M4	51.18	2.2KW	27rpm	765N.m	75Kg	19100N	2
KA77Y90M4	45.16	2.2KW	31rpm	675N.m	75Kg	19300N	2.3
KA77Y90M4	40.04	2.2KW	35rpm	600N.m	75Kg	19500N	2.6
KA77Y90M4	35.2	2.2KW	40rpm	525N.m	75Kg	19600N	2.9
KA77Y90M4	30.89	2.2KW	45rpm	460N.m	75Kg	19800N	3.3
KA77Y90M4	29.27	2.2KW	48rpm	435N.m	75Kg	19800N	3.5
KA77Y90M4	25.62	2.2KW	55rpm	380N.m	75Kg	19900N	4

Ka77y100m4 reduction motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA77Y100M4	88.97	3KW	16rpm	1820N.m	80Kg	13100N	0.85
KA77Y100M4	78.07	3KW	18rpm	1590N.m	80Kg	15000N	0.95
KA77Y100M4	73.99	3KW	19rpm	1510N.m	80Kg	15600N	1
KA77Y100M4	64.75	3KW	22rpm	1320N.m	80Kg	16800N	1.15
KA77Y100M4	58.34	3KW	24rpm	1190N.m	80Kg	17500N	1.3
KA77Y100M4	51.18	3KW	27rpm	1040N.m	80Kg	18100N	1.5
KA77Y100M4	45.16	3KW	31rpm	920N.m	80Kg	18600N	1.7
KA77Y100M4	40.04	3KW	35rpm	810N.m	80Kg	18900N	1.9
KA77Y100M4	35.2	3KW	40rpm	720N.m	80Kg	19200N	2.2
KA77Y100M4	30.89	3KW	45rpm	630N.m	80Kg	19400N	2.4

KAElectro-motive decelerator 77Type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

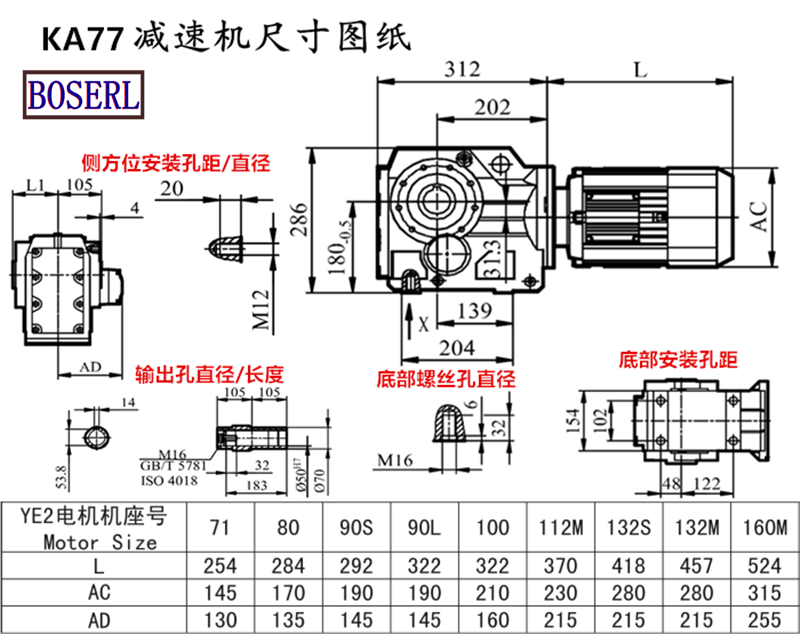

Ka77 power-drivenretarder installation of size drawings

Ka77 power deviator production plant show: see the factory three days in advance

Through-hole shaft reducerPresentation of application cases:

Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor

KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox

KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
