KA77R37DV63MS4Detailed Information
Keyword: how big a 200kw power is with a double-axis decelerator _ka77r37dv63ms4_ka77r37drrn80n4
KA77R37DV63MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA77R37DV63MS4 | 2717 | 0.12KW | 0.51r/min | 1840N.m | 71kg | 11500N | 0.85 |
| KA77R37DV63MS4 | 2370 | 0.12KW | 0.58r/min | 1530N.m | 71kg | 15500N | 1.00 |
| KA77R37DV63MS4 | 2050 | 0.12KW | 0.67r/min | 1430N.m | 71kg | 16100N | 1.10 |
| KA77R37DV63MS4 | 1772 | 0.12KW | 0.78r/min | 1220N.m | 71kg | 17300N | 1.25 |
| KA77R37DV63MS4 | 1514 | 0.12KW | 0.91r/min | 1040N.m | 71kg | 18100N | 1.50 |
| KA77R37DV63MS4 | 1388 | 0.12KW | 0.99r/min | 960N.m | 71kg | 18500N | 1.60 |
| KA77R37DV63MS4 | 1218 | 0.12KW | 1.10r/min | 840N.m | 71kg | 18900N | 1.85 |
| KA77R37DV63MS4 | 1053 | 0.12KW | 1.30r/min | 735N.m | 71kg | 19200N | 2.10 |
| KA77R37DV63MS4 | 924 | 0.12KW | 1.50r/min | 645N.m | 71kg | 19400N | 2.40 |
| KA77R37DV63MS4 | 815 | 0.12KW | 1.70r/min | 570N.m | 71kg | 19600N | 2.70 |
| KA77R37DV63MS4 | 709 | 0.12KW | 2.00r/min | 445N.m | 71kg | 19800N | 3.50 |
| KA77R37DV63MS4 | 622 | 0.12KW | 2.20r/min | 390N.m | 71kg | 19900N | 3.90 |
Ka77r37drn80n4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA77R37DRN80N4 | 367 | 0.75KW | 3.90r/min | 1670N.m | 81.5kg | 14400N | 0.95 |
| KA77R37DRN80N4 | 328 | 0.75KW | 4.40r/min | 1490N.m | 81.5kg | 15800N | 1.05 |
| KA77R37DRN80N4 | 290 | 0.75KW | 5.00r/min | 1320N.m | 81.5kg | 16800N | 1.15 |
| KA77R37DRN80N4 | 252 | 0.75KW | 5.70r/min | 1140N.m | 81.5kg | 17700N | 1.35 |
| KA77R37DRN80N4 | 221 | 0.75KW | 6.50r/min | 1000N.m | 81.5kg | 18300N | 1.55 |
KA77R37DV63MS4Speeding machine type:
K77r37dv63ms4 bottom foot fitted with tilt gears - umbrella gear reduction power
Ka77br37dv63ms4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv77br37dv63ms4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh77 br37dv63ms4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf77r37dv63ms4b5 installation of tilt gear - umbrella gear reduction power
Kaf77r37dv63ms4b5farland aerocentric axis fitted with tilt gears - umbrella gear reduction power
Frf77r37dv63ms4b5 installation of tilt gears - umbrella gear reduction power
Khf77r37dv63ms4b5farland axial axle locks fitted with tilt gears - umbrella gear reduction power
Ka77r37dv63ms4 tilt gears - umbrella gear reduction power
The kv77r37dv63ms4 spaced axle is equipped with tilt gears - an umbrella gear decelerator
Kh77r37dv63ms4 empty axle locks the wheel slashing gears - an umbrella gear decelerator
Installation of tilt gears on kt77r37dv63ms4 hollow axle - umbrella gear reduction power
Kaz77r37dv63ms4b14 installation of tilt gear - umbrella gear-reducing power
Kvz77r37dv63ms4b14 installation of tilt gears - umbrella gear deviation engine
Dhz77r37dv63ms4b14 franium axle locks fitted with tilt gears - umbrella gear-reducing power

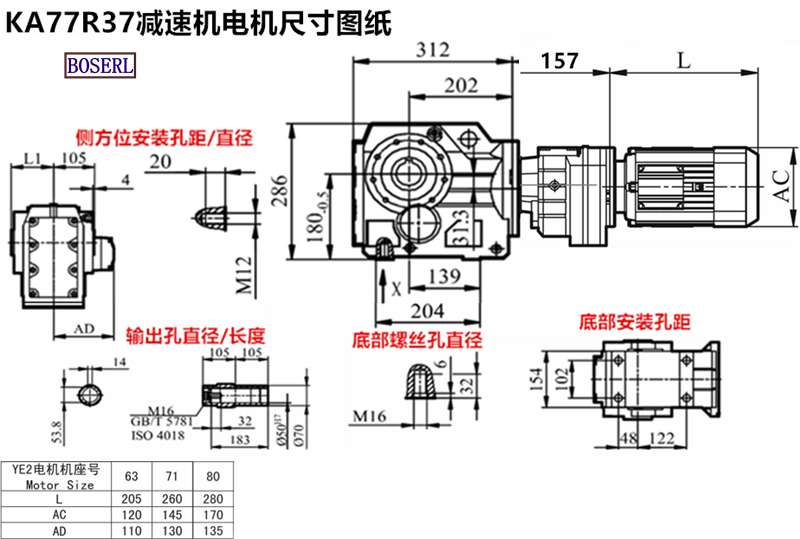

KA77R37DV63MS4Induction Motor 3Ph motors installed size drawings
Ka77r37dv63ms4 deviation power plant, three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
